hansgrohe Vernis Shape

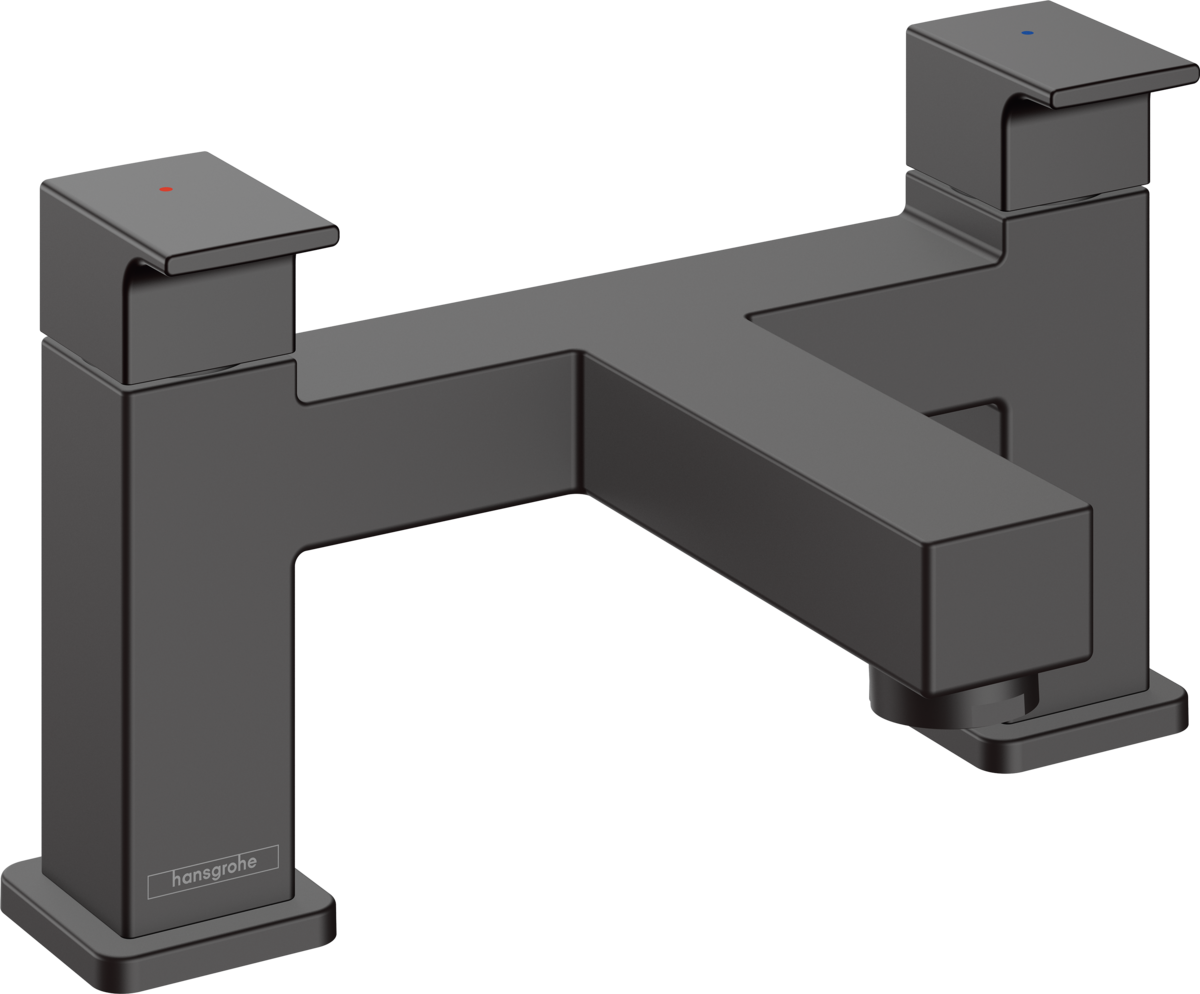

2-hole rim mounted bath mixer

2-hole rim mounted bath mixer
 View in AR
 360° view
Finish Matt Black

Model no. 71452670

Article features

  • 1 function
  • projection: 110 mm
  • centre distance: 180 mm
  • maximum flow rate at 3 bar: 50 l/min
  • flow rate for bath spout at 3 bar: 50 l/min
  • ceramic valves hot/cold 90°
  • operating pressure from 0.2 bar
  • connection dimension: DN20
  • connection type: G ¾
  • installation on bath rim
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar

Downloads

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
