AXOR Edge

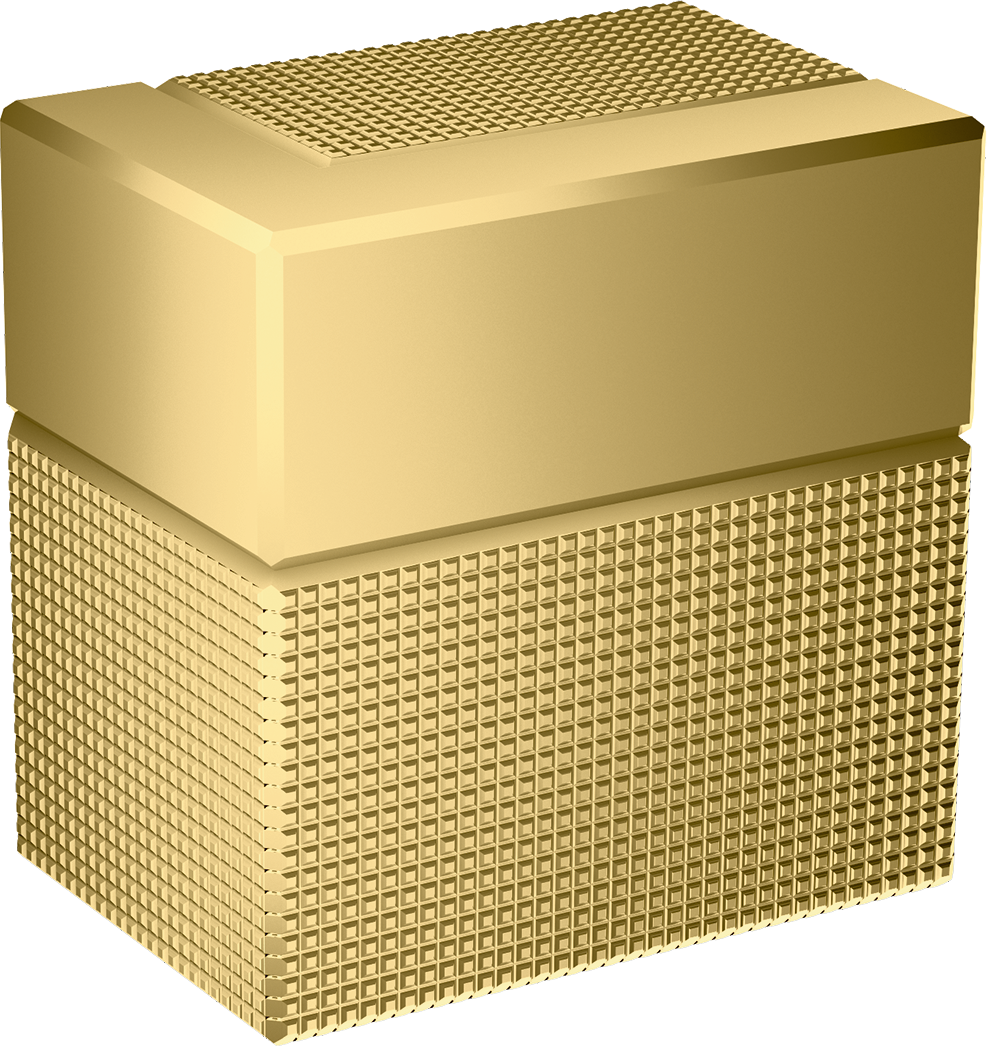

Shut-off valve for concealed installation - diamond cut

Shut-off valve for concealed installation - diamond cut
 View in AR
 360° view
Finish Polished Gold Optic

Model no. 46771990

Article features

  • connection type: DN15/DN20
  • 1 function
  • noise class: II

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Required parts - Select variant

Basic set 52 l/min for shut-off valve for concealed installation spindle

Basic set 52 l/min for shut-off valve for concealed installation spindle
Basic set 40 l/min for shut-off valve for concealed installation ceramic

Basic set 40 l/min for shut-off valve for concealed installation ceramic
Basic set 130 l/min for shut-off valve for concealed installation spindle

Basic set 130 l/min for shut-off valve for concealed installation spindle

Optional accessories

Extension set 25 mm for shut-off/ diverter valve Trio-/ Quattro

Extension set 25 mm for shut-off/ diverter valve Trio-/ Quattro

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
