AXOR Edge

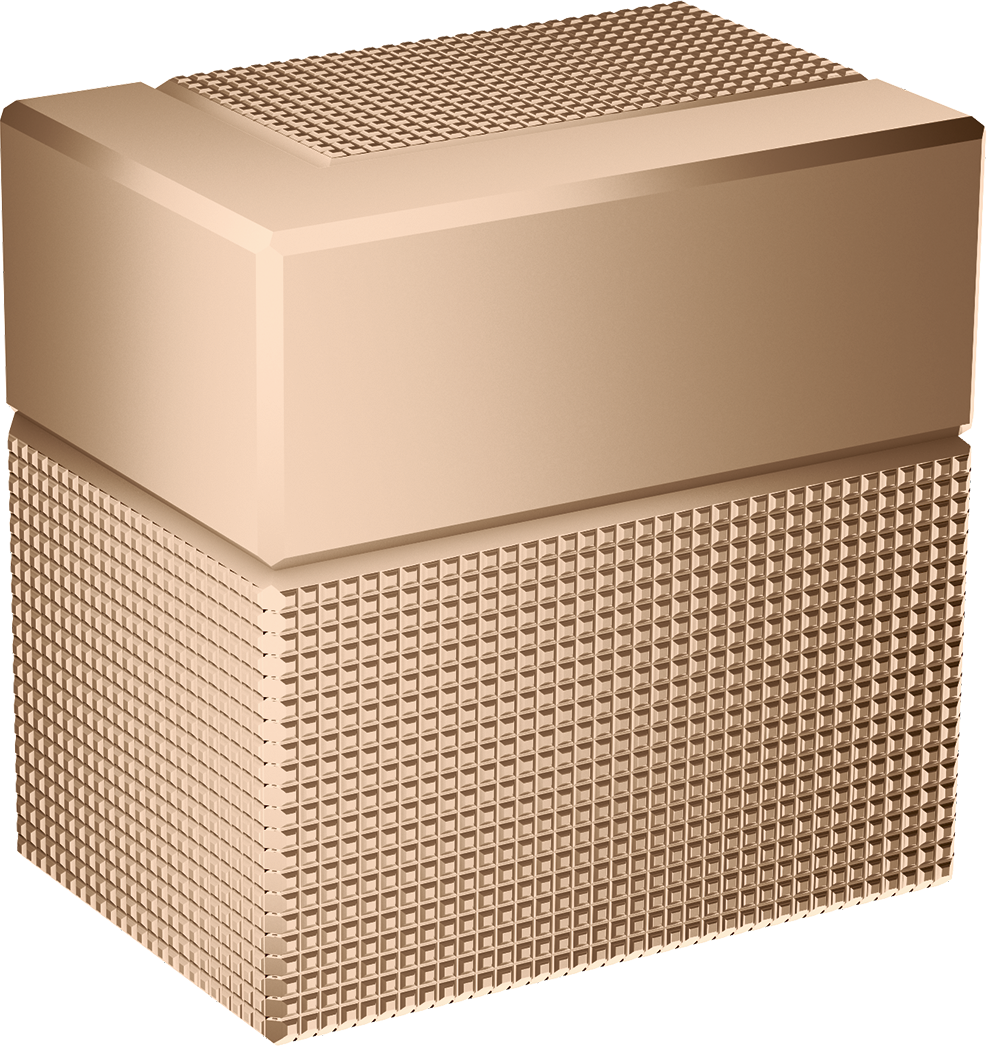

Shut-off valve for concealed installation - diamond cut

Shut-off valve for concealed installation - diamond cut
 View in AR
 360° view
Finish Polished Red Gold

Model no. 46771300

Article features

  • connection type: DN15/DN20
  • 1 function
  • noise class: II

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Required parts - Select variant

Basic set 130 l/min for shut-off valve for concealed installation spindle

Basic set 130 l/min for shut-off valve for concealed installation spindle
Basic set 52 l/min for shut-off valve for concealed installation spindle

Basic set 52 l/min for shut-off valve for concealed installation spindle
Basic set 40 l/min for shut-off valve for concealed installation ceramic

Basic set 40 l/min for shut-off valve for concealed installation ceramic

Optional accessories

Extension set 25 mm for shut-off/ diverter valve Trio-/ Quattro

Extension set 25 mm for shut-off/ diverter valve Trio-/ Quattro

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
