hansgrohe Vernis Blend
Single lever bath mixer for concealed installation for iBox universal

product.image.alt
 View in AR
 360° view
Change variant
hansgrohe Vernis Blend
Select variant

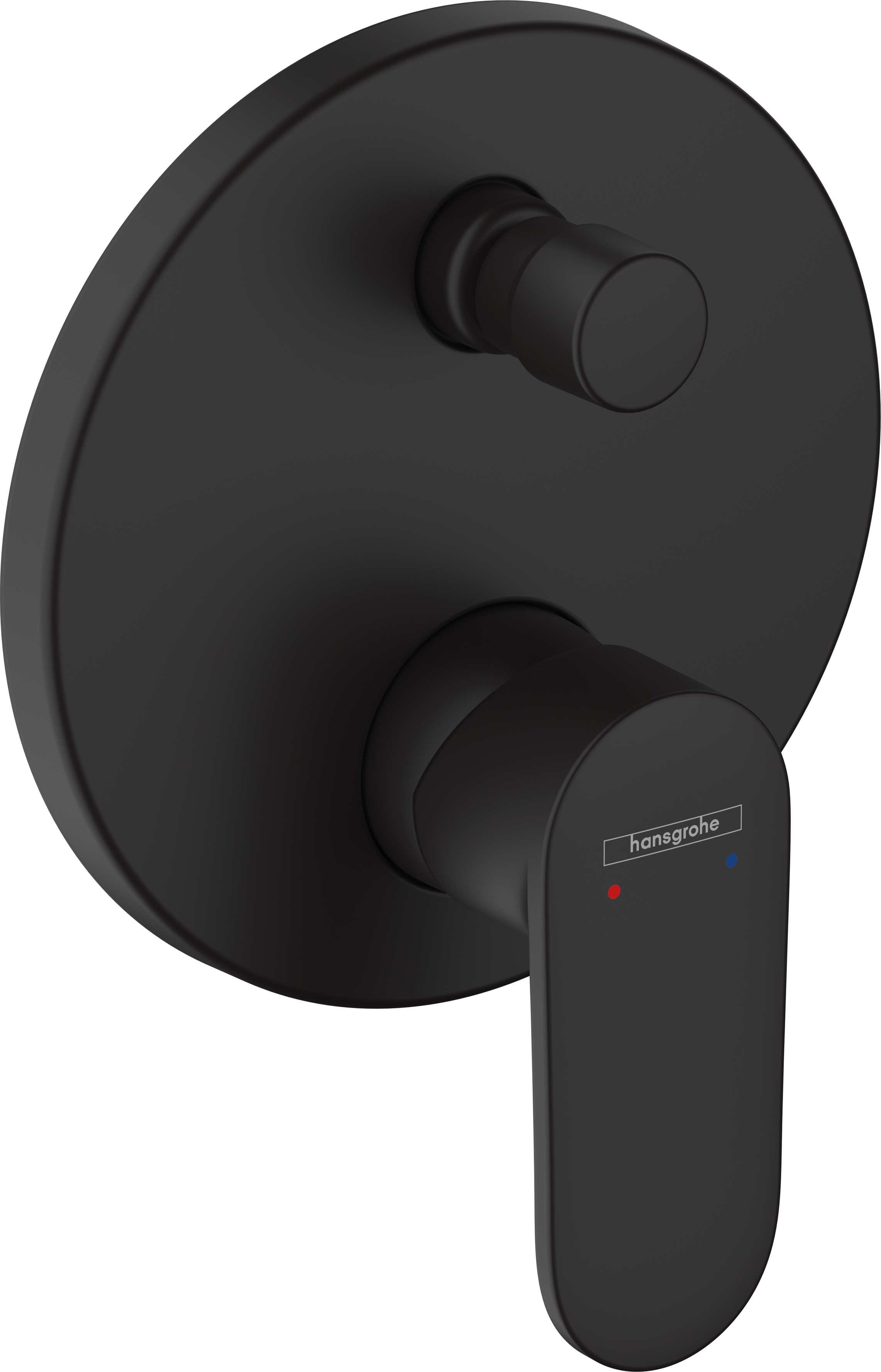

Single lever bath mixer for concealed installation for iBox universal
Single lever bath mixer for concealed installation with integrated security combination according to EN1717 for iBox universal
Finish Matt Black

Model no. 71466670

Article features

  • 2 functions
  • flow rate upper outlet: 21 l/min
  • flow rate lower outlet: 29 l/min
  • maximum flow rate at 3 bar: 29 l/min
  • M35
  • temperature limitation adjustable
  • diverter with automatic resetting
  • suitable for continous flow water heaters
  • connection type: basic set
  • wall-mounted
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Required parts - Select variant

Basic set
hansgrohe iBox universal 2

Basic set
Adapter plate for iBox universal 2
hansgrohe

Adapter plate for iBox universal 2
Basic set
hansgrohe iBox universal

Basic set

Spare parts for build year 04/21

To the spare parts catalog
To the spare parts catalog
product.spareparts.image.alt
Item no. DescriptionArticle no.Description and article no.
1 handle93715670
2 screw cover96338000
3 diverter knob98795670
4 hollow set screw M4x1097667000
5 escutcheon Ø 150 mm98791000
6 O-ring 43x398418000
7 O-ring 23x398142000
8 sleeve98790670
9 sleeve98794670
10 holder for escutcheon98793000
11 spout cpl.98454000
12 nut98796000
13 O-ring 30x1,598433000
14 O-ring 39x1,598400000
15 cartridge, assy92730000
16 locking screw for handle95140000
17 seal95008000
18 selector assy95014000
19 O-ring 16x2,398207000
20 O-ring 20x2,592602000
21 set of screws96525000
22 O-ring 16x298133000
23 noise reduction94073000
24 extension 25 mm13595000
25 set of fixing screws97747000
26 extension 22 mm (Ø 150 mm)13597670
