hansgrohe Rebris E

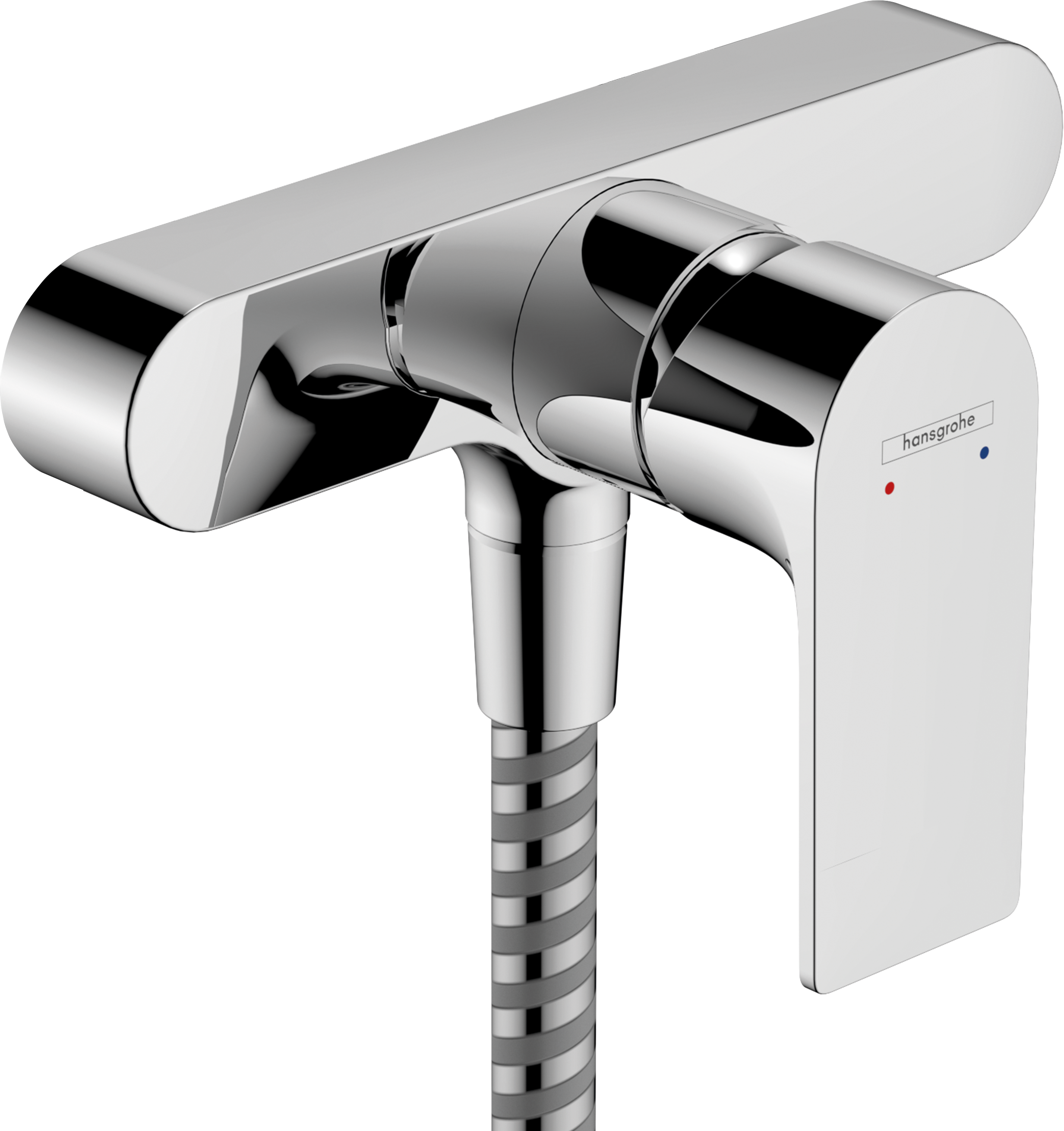

Single lever shower mixer for exposed installation with centre distance 15.3 cm

product.image.alt
product.closeup.image.alt
1 / 2
 View in AR
 360° view
Change variant
hansgrohe Rebris E
Select variant
Single lever shower mixer for exposed installation with centre distance 15.3 cm
Single lever shower mixer for exposed installation
Finish Chrome

Model no. 72652000

Article features

  • 1 function
  • centre distance: 153 mm
  • maximum flow rate at 3 bar: 12 l/min
  • flow rate of hand shower at 3 bar: 12 l/min
  • ceramic cartridge
  • temperature limitation adjustable
  • non-return valve
  • with silencer
  • hose connection DN15
  • connection dimension: DN20
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Spare parts for build year 06/22

To the spare parts catalog
To the spare parts catalog
product.spareparts.image.alt
Item no. DescriptionArticle no.Description and article no.
1 handle94655000
2 screw cover96338000
3 flange97406000
4 nut97977000
5 O-Ring 32x298193000
6 O-ring 33x1,598164000
7 cartridge, assy92730000
8 locking screw for handle95140000
9 seal95008000
10 Hose Connection96044000
11 O-ring 14x298129000
12 non return valve93251000
13 O-ring 23x298398000
14 noise reduction96429000

Awards

iF product design award 2022

 Everything from cars to toothbrushes: products that receive this award rank among the best-designed products in the world. Globally recognised seal of quality, awarded by the International Forum Design since 1953.

German Design Award Winner 2023

 A quality seal awarded by the German Design Council since 2011, for design products featuring trendsetting quality.

Plus X Award für Innovation, High Quality, Design, Bedienkomfort und Ökologie 2022

 With an expert jury comprising representatives from 25 sectors, it is one of the world's top innovation awards. A network of 23 partners presents the award for design, ease of use or ecology.

Red Dot product design award 2022

 One of the most prestigious awards in the world. Awarded for top quality, innovative form and function since 1955 (North Rhine-Westphalia Design Centre).

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
