hansgrohe RainDrain Compact

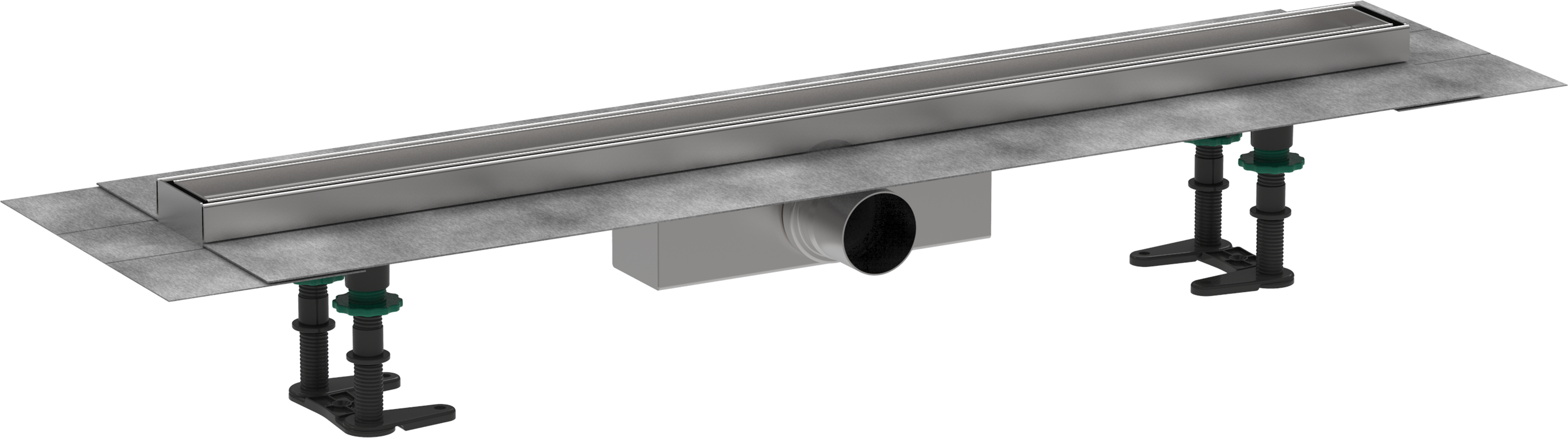

Complete set shower drain 800 for standard installation

product.image.alt
product.closeup.image.alt
product.closeup.image.alt
1 / 3
 View in AR
 360° view
Change variant
hansgrohe RainDrain Compact
Select variant
Complete set shower drain 800 for standard installation
Complete set shower drain 600 for standard installation
Complete set shower drain 700 for standard installation
Complete set shower drain 900 for standard installation
Complete set shower drain 1000 for standard installation
Complete set shower drain 1200 for standard installation

Model no. 56179000

Article features

  • consists of: tileable grate, installation set, siphon, grate removal tool, pre-assembled sealing membrane
  • grate material: Stainless Steel 304 (1.4301)
  • material installation set: Stainless Steel 304 (1.4301)
  • pre-assembled sealing membrane
  • tileable
  • water seal: 50 mm
  • connection diameter: DN50
  • direction of outlet: horizontal
  • easy to clean surface
  • height adjustable installation set
  • up to 37 l/min drainage capacity
  • where to use: renovation, new construction
  • tile thickness: up to 18 mm
  • removable water seal
  • easy to clean siphon
  • grate removal tool allows easy removal of the finish set
  • type of odour seal: fluid
  • material siphon: ABS
  • mounting type: free in the floor
  • suitable for primary drainage
  • minimal installation height: 63 mm

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Spare parts for build year 01/23

To the spare parts catalog
To the spare parts catalog
product.spareparts.image.alt
Item no. DescriptionArticle no.Description and article no.
1 trap cpl.94754000
2 mounting-set94331000
3 service tool94327000

Innovative technologies

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

Easy clean siphon

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.

QuickClean

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
