hansgrohe Metropol

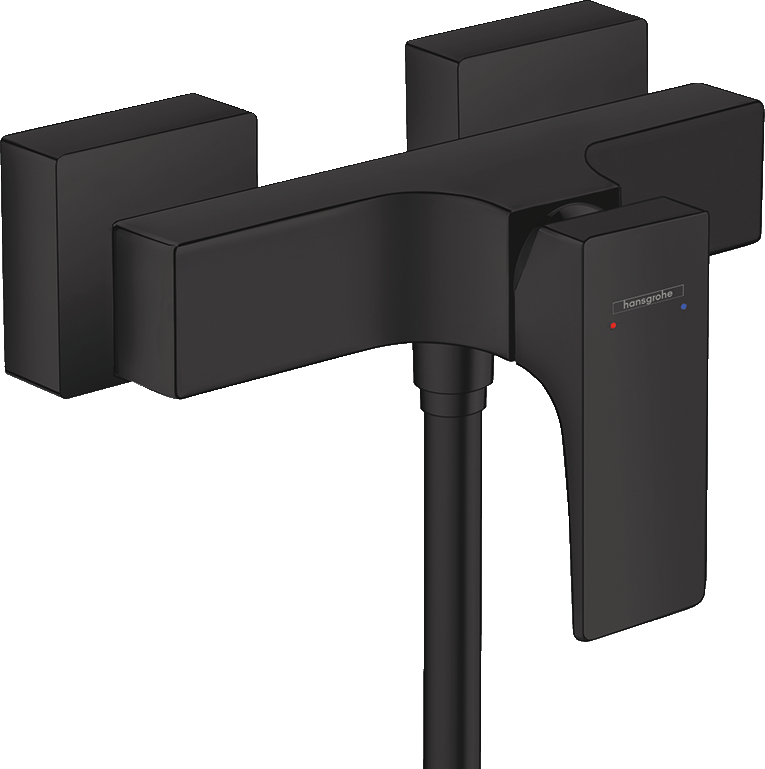

Single lever shower mixer for exposed installation with lever handle

product.image.alt
 View in AR
 360° view
Change variant
hansgrohe Metropol
Select variant
Single lever shower mixer for exposed installation with lever handle
Single lever shower mixer for exposed installation with loop handle
Finish Matt Black

Model no. 32560670

Article features

  • 1 function
  • centre distance: 150 ± 12 mm
  • maximum flow rate at 3 bar: 16 l/min
  • flow rate of hand shower at 3 bar: 16 l/min
  • ceramic cartridge
  • temperature limitation adjustable
  • non-return valve
  • with silencer
  • hose connection DN15
  • connection dimension: DN15
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • connection type: s-shaped connections

Downloads

Planning data

Download all Planning data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Spare parts for build year 07/19

To the spare parts catalog
To the spare parts catalog
product.spareparts.image.alt
Item no. DescriptionArticle no.Description and article no.
1 handle93075670
2 screw cover96338000
3 flange97406670
4 nut97209000
5 O-Ring 32x298193000
6 cartridge, assy92730000
7 locking screw for handle95140000
8 seal95008000
9 Hose Connection96044670
10 O-ring 14x298129000
11 set of non return valves DW 1594074000
12 set of nuts96157670
13 connecting thread97220000
14 O-ring 15x298163000
15 escutcheon93077670
16 filter packing96922000
17 set of S-unions (±12 mm)94140000
18 noise reduction96429000
