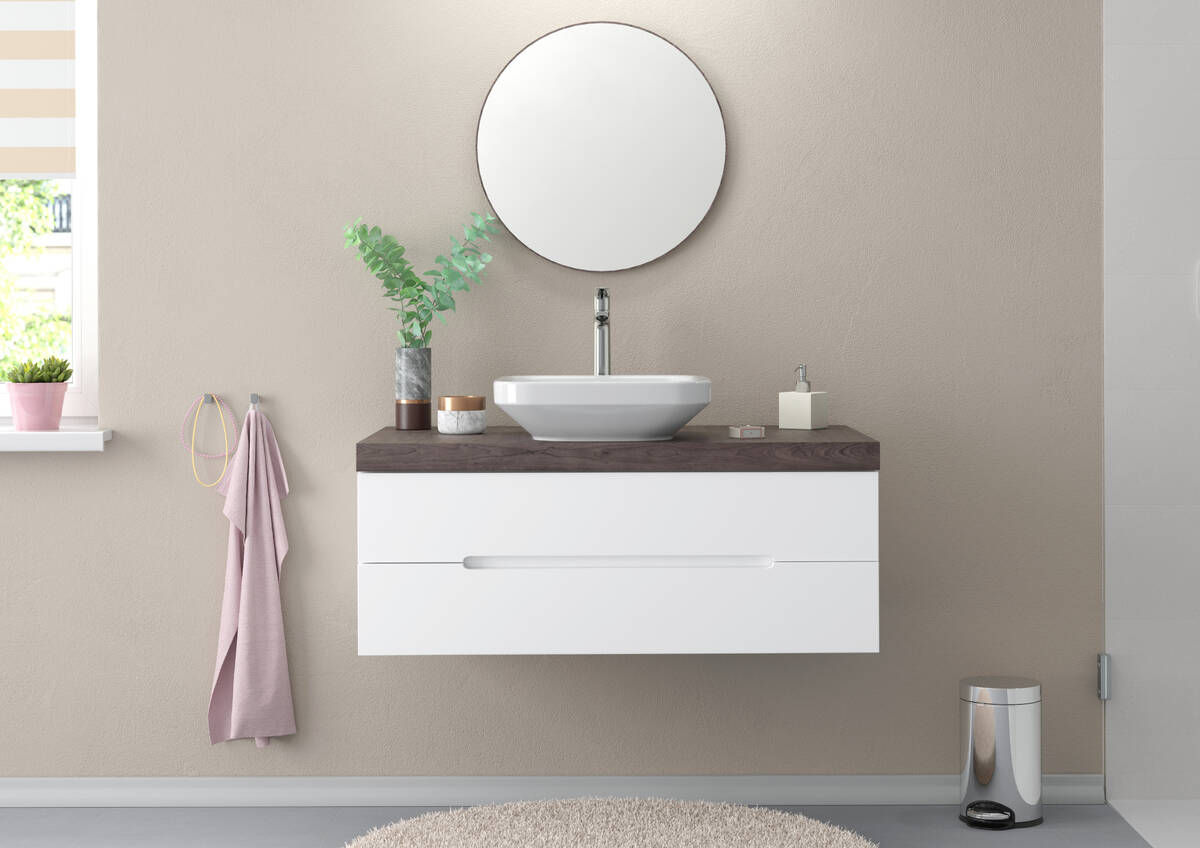

hansgrohe LogisSingle lever basin mixer 240 Fine for wash bowls with pop-up waste set
Model no. 71257000
Please try again.
Article features
- consists of: single lever basin mixer, waste set
- ComfortZone 240
- projection: 172 mm
- spout height: 232 mm
- handle variant: lever handle
- spray type: normal spray
- maximum flow rate at 3 bar: 5 l/min
- ceramic cartridge
- temperature limitation adjustable
- suitable for continuous flow water heaters
- pop-up waste set G 1¼
- material waste set: synthetic
- connection type: G ⅜ connections
- connection dimension: DN15
- aerator can be easily removed with the help of a coin and without tools
- EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible
Downloads
Installation information
Scale drawing
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for build year 06/21
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
a | pop up waste92168000 |
b | fixation extension 35 mm13898000 |
1 | handle94376000 |
2 | screw cover96338000 |
3 | flange98863000 |
4 | nut98864000 |
5 | O-ring 24x298388000 |
6 | cartridge, assy97685000 |
7 | locking screw for handle95140000 |
8 | seal98865000 |
9 | adapter for cartridge98866000 |
10 | O-ring 23x298398000 |
11 | aerator M24x1 (5 l/min)94364000 |
12 | O-ring 30x1,598433000 |
13 | escutcheon94382000 |
14 | flat seal98749000 |
15 | fixing set (Ø 32)13961000 |
16 | lever collar97548000 |
17 | pull rod96657000 |
18 | connection hose 600 mm M8x0,75 G3/896556000 |
19 | O-ring 6,6x1,693019000 |
Innovative technologies
More pleasure, more efficiency
Excellent user comfort
Saving resources with pleasure
Aerator with coin slot
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
ComfortZone
Excellent user comfort
More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.
EcoSmart
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
Remove & Clean
Aerator with coin slot
Limescale and dirt on the outlet can be removed in no time - without tools. If residue has formed, simply use a coin to unscrew the aerator. Place it in citric acid for ten minutes, rinse, screw it back in with a coin, and you're done.
