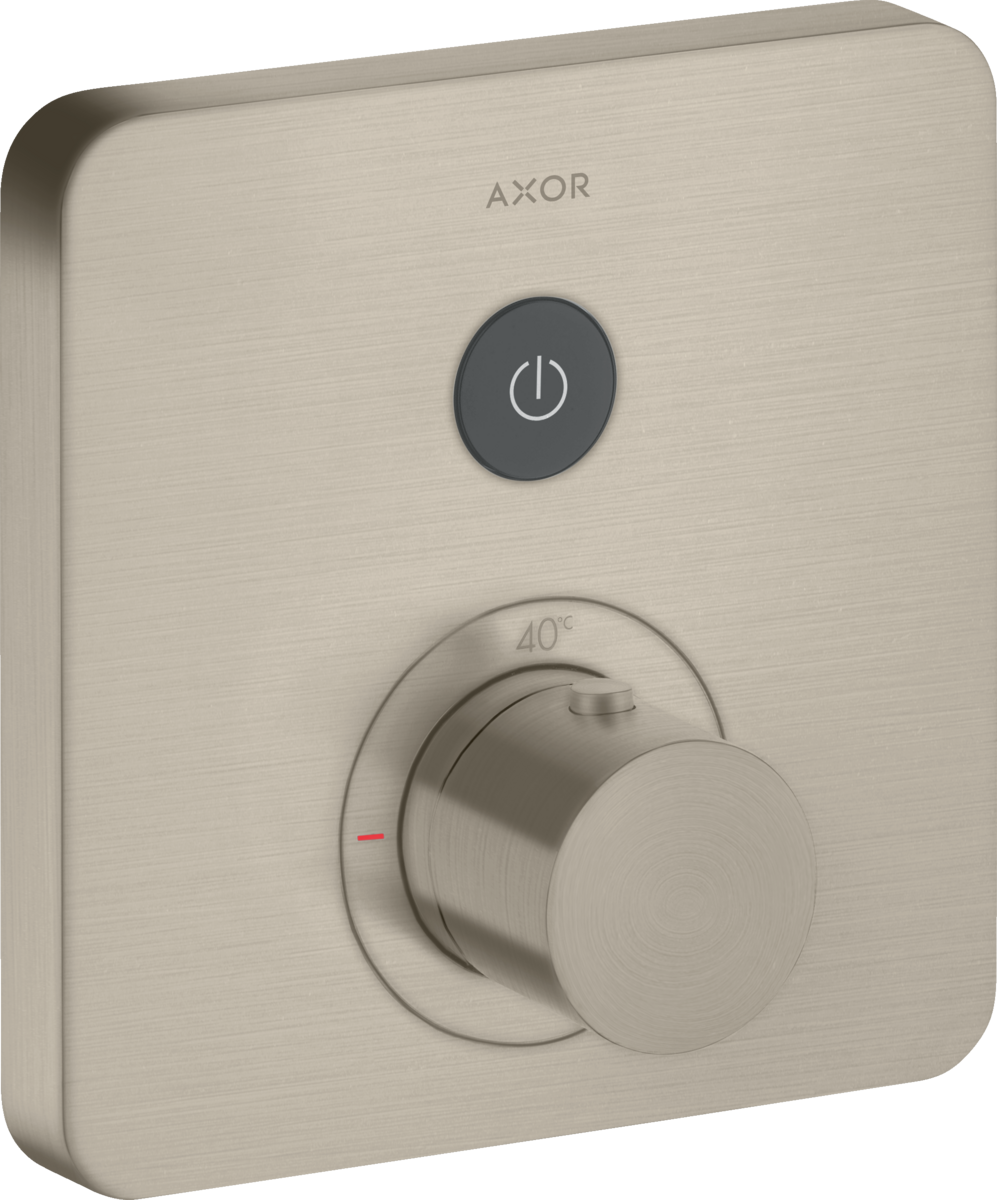

AXOR ShowerSelectThermostat for concealed installation softsquare for 1 function
Model no. 36705820
Please try again.
Required parts
Spare parts for build year 11/16
| Item no. |
|---|
| a | concealed item01800180 |
| b | adapter for exchanged connections93181000 |
| 1 | handle for thermostat92840820 |
| 2 | handle fixing set95843000 |
| 3 | escutcheon 170 / 170 mm93026820 |
| 4 | set of symbols92544610 |
| 5 | O-ring 48x498414000 |
| 6 | sleeve92216820 |
| 7 | holder for escutcheon98793000 |
| 8 | set of fixing screws96454000 |
| 9 | nut and flange92696000 |
| 10 | Select-adapter92219000 |
| 11 | nut98368000 |
| 12 | shut off unit95758000 |
| 13 | nut98913000 |
| 14 | thermostat cartridge98282000 |
| 15 | cartridge for exchanged connections92373000 |
| 16 | O-ring 25x2,592146000 |
| 17 | O-ring 25x1,598146000 |
| 18 | O-ring 20x1,598197000 |
| 19 | set of screws96525000 |
| 20 | O-ring 36x298156000 |
| 21 | O-ring 16x298133000 |
| 22 | noise reduction94073000 |
| 23 | non return valve97980000 |
| 24 | non return valve (pressure-resistant up to 2 MPa)92594000 |
| 25 | compensation set 1°95521000 |
| 26 | fit-up aid92540000 |
| 27 | extension 25 mm13595000 |
| 28 | set of fixing screws97747000 |
| 29 | extension 22 mm98860820 |
| 30 | symbol head shower Rain large93571610 |
| 31 | symbol head shower Rain small93572610 |
| 32 | symbol handshower93573610 |
| 33 | symbol Flood jet93574610 |
| 34 | symbol Whirl93575610 |
| 35 | symbol Mono93576610 |
| 36 | symbol tub93577610 |
| 37 | symbol body shower93578610 |
| 38 | symbol ON/OFF93579610 |
Innovative technologies
Intuitive jet adjustment
Always constant water temperature
Safety lock at over 40 °C
Select
Intuitive jet adjustment
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
Thermostat
Always constant water temperature
Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
SafetyStop
Safety lock at over 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
