hansgrohe Vernis Shape

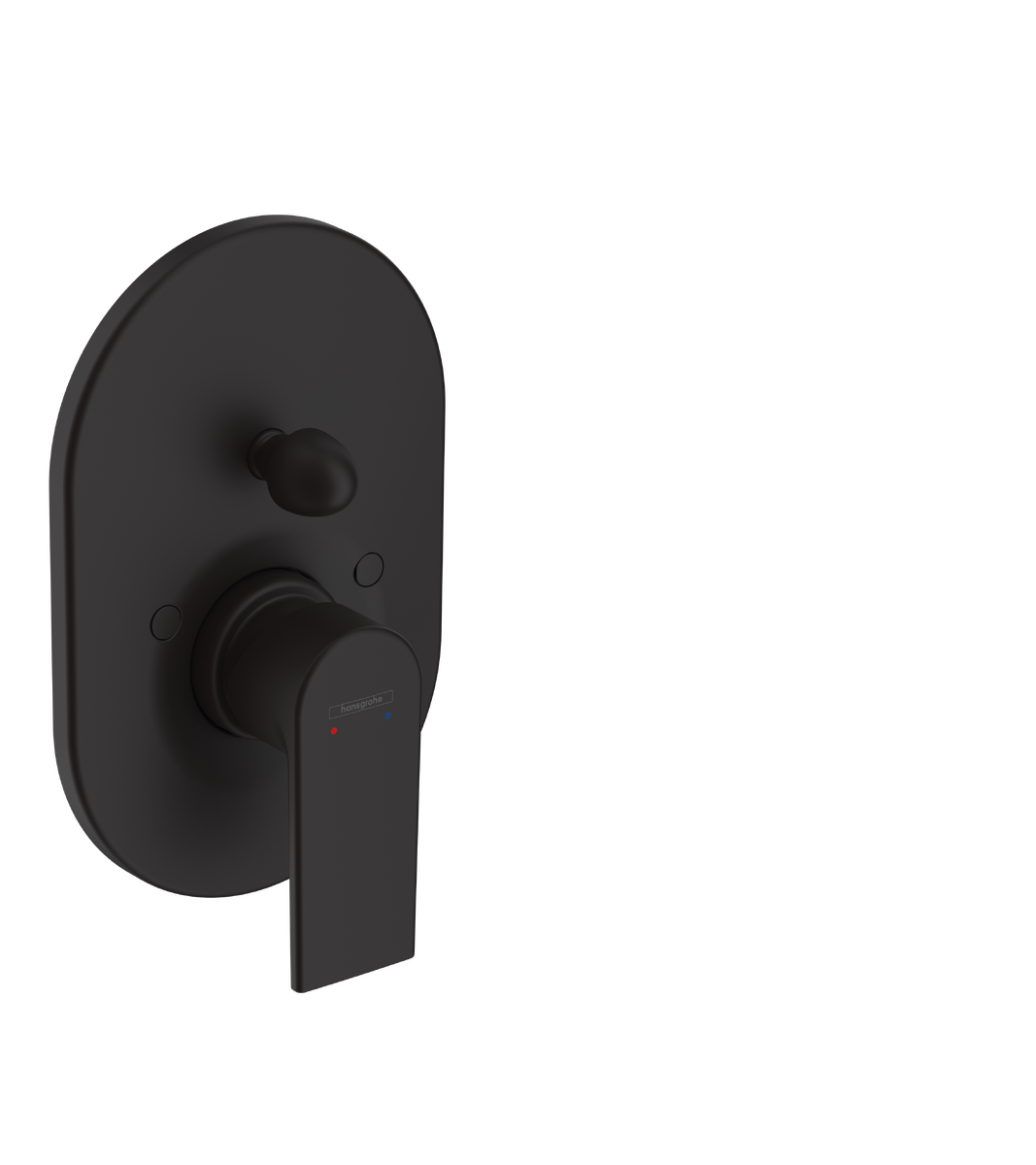

Single lever bath mixer for concealed installation

product.image.alt
product.closeup.image.alt
1 / 2
 View in AR
 360° view
Finish Matt Black

Model no. 71458670

Article features

  • 2 functions
  • maximum flow rate at 3 bar: 30,7 l/min
  • flow rate for bath spout at 3 bar: 30,7 l/min
  • flow rate of hand shower at 3 bar: 27,4 l/min
  • M35
  • temperature limitation adjustable
  • diverter with automatic resetting
  • suitable for continous flow water heaters
  • connection type: basic set
  • wall-mounted
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar

Downloads

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts

Basic set for single lever bath mixer for concealed installation
hansgrohe

Basic set for single lever bath mixer for concealed installation

Spare parts for build year 04/21

To the spare parts catalog
To the spare parts catalog
product.spareparts.image.alt
Item no. DescriptionArticle no.Description and article no.
1 handle93719670
2 screw cover96338000
4 O-Ring 48x395508000
5 flange96348670
6 diverter assy with sleeve and handle95015670
7 diverter knob93937670
8 hollow set screw M4x1097667000
9 cover cap95433670
10 hollow screw96065000
11 O-ring 14x398130000
12 O-ring 10x1,598123000
13 O-ring 16x2,598134000
14 O-ring 13x298128000
15 selector assy96937000
16 extension set 28 mm tub mixer32498000
17 O-ring 12x1,598430000
