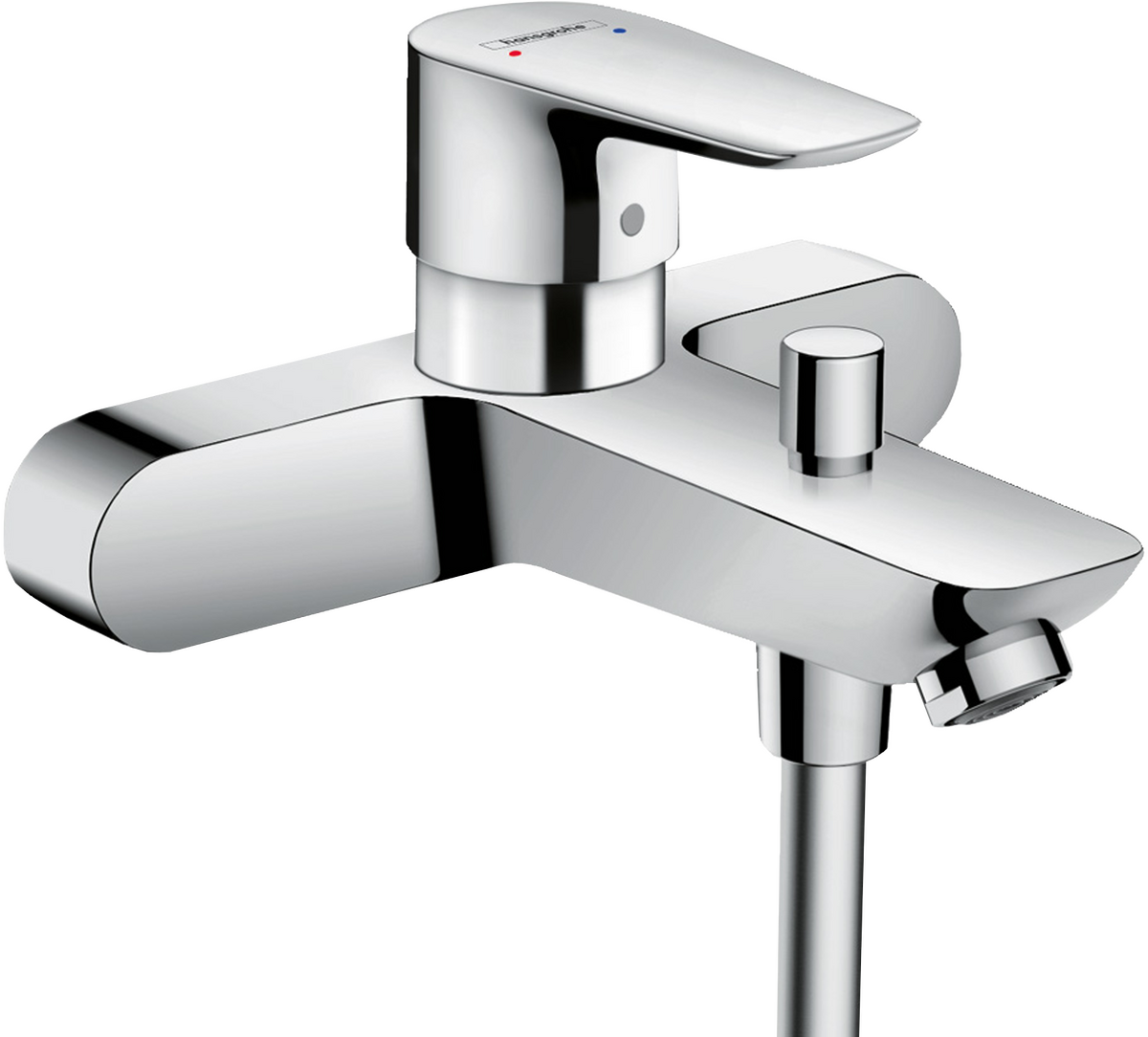

hansgrohe Talis ESingle lever bath mixer for exposed installation with centre distance 15.3 cm
Model no. 71741000
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- 2 functions
- projection: 155 mm
- centre distance: 153 mm
- spray type mixer: normal spray
- maximum flow rate at 3 bar: 20 l/min
- flow rate for bath spout at 3 bar: 20 l/min
- flow rate of hand shower at 3 bar: 12 l/min
- ceramic cartridge
- temperature limitation adjustable
- diverter with automatic resetting
- non-return valve
- with silencer
- suitable for continous flow water heaters
- connection dimension: DN15
- wall-mounted
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
Downloads
Technical drawings
Spare parts for build year 05/20
| Item no. |
|---|
| 1 | handle92666000 |
| 2 | screw cover96338000 |
| 3 | flange97406000 |
| 4 | O-Ring 32x298193000 |
| 5 | nut97977000 |
| 6 | O-ring 33x1,598164000 |
| 7 | cartridge, assy92730000 |
| 8 | locking screw for handle95140000 |
| 9 | seal95008000 |
| 10 | diverter knob97981000 |
| 11 | sleeve97979000 |
| 12 | selector97978000 |
| 13 | O-Ring 14x2,598189000 |
| 14 | aerator M24x1 (30 l/min)96512000 |
| 15 | O-ring 23x298398000 |
| 16 | noise reduction96429000 |
Innovative technologies
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
Five-year manufacturer’s guarantee
5
year manufacturer's guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
