Spare Part

ShowerSelect
Thermostat

Thermostat for concealed installation for 2 functions
product.closeup.image.alt
1 / 2
 View in AR
 360° view
Finish Chrome

Model no. 15763000

Article features

  • 2 functions
  • simultaneous use of several outlets
  • Select push-button on/off control for 2 outlets
  • thermostat cartridge, Start/stop valve to operate the functions
  • maximum flow rate at 1 bar: 15 l/min
  • maximum flow rate at 3 bar: 29,7 l/min
  • flow rate upper outlet: 25 l/min
  • flow rate lower outlet: 23 l/min
  • flow rate by simultaneous use of all outlets: 29,7 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • connection type: basic set
  • thermostat is delivered with buttons hand shower and Rain large

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Certificates

Environmental Product Declaration

 An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.

Find all compatible products for your spare part

Product range
Product name
Art. no.
Finish
Finish & Art. no.
Construction year
hansgrohe Raindance E Shower system 300 1jet with thermostat ShowerSelect Square and basic set
Shower system 300 1jet with thermostat ShowerSelect Square and basic set 27952000
27952000
> 01/21

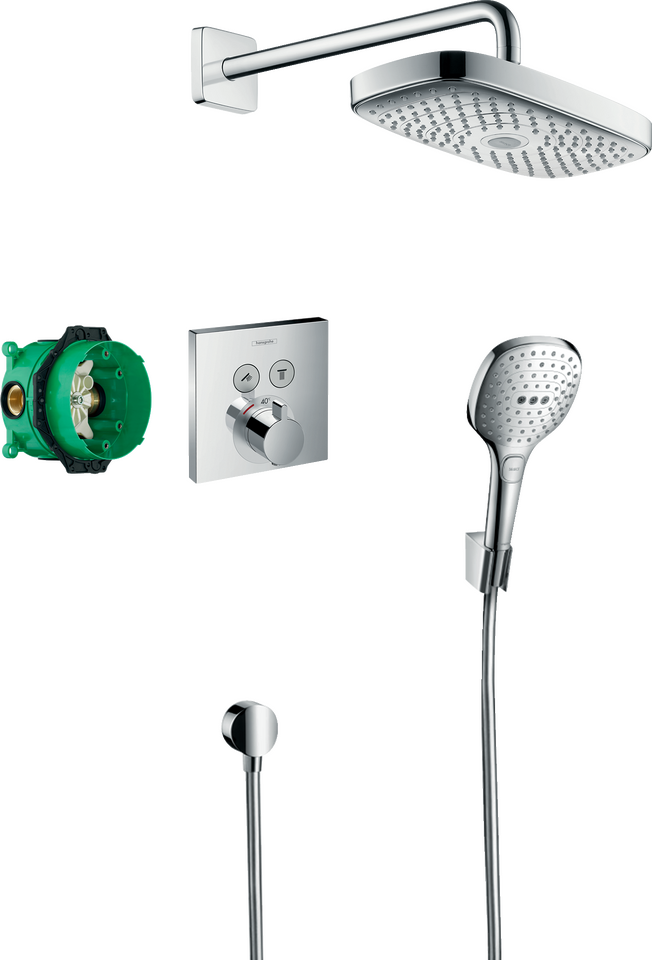

hansgrohe Raindance Select E Design shower set for concealed installation with ShowerSelect thermostat
Design shower set for concealed installation with ShowerSelect thermostat 27296000
27296000
06/15 - 06/22
hansgrohe Pulsify S Design ShowerSet 260 1jet with ShowerSelect E
Design ShowerSet 260 1jet with ShowerSelect E 26952000
26952000
> 06/22
hansgrohe Raindance E Shower system 300 1jet with shower arm, thermostat, hand shower 120 and basic set iBox universal bundle 13 Reuter
Shower system 300 1jet with shower arm, thermostat, hand shower 120 and basic set iBox universal bundle 13 Reuter 27837000
27837000
> 07/19
