hansgrohe S71

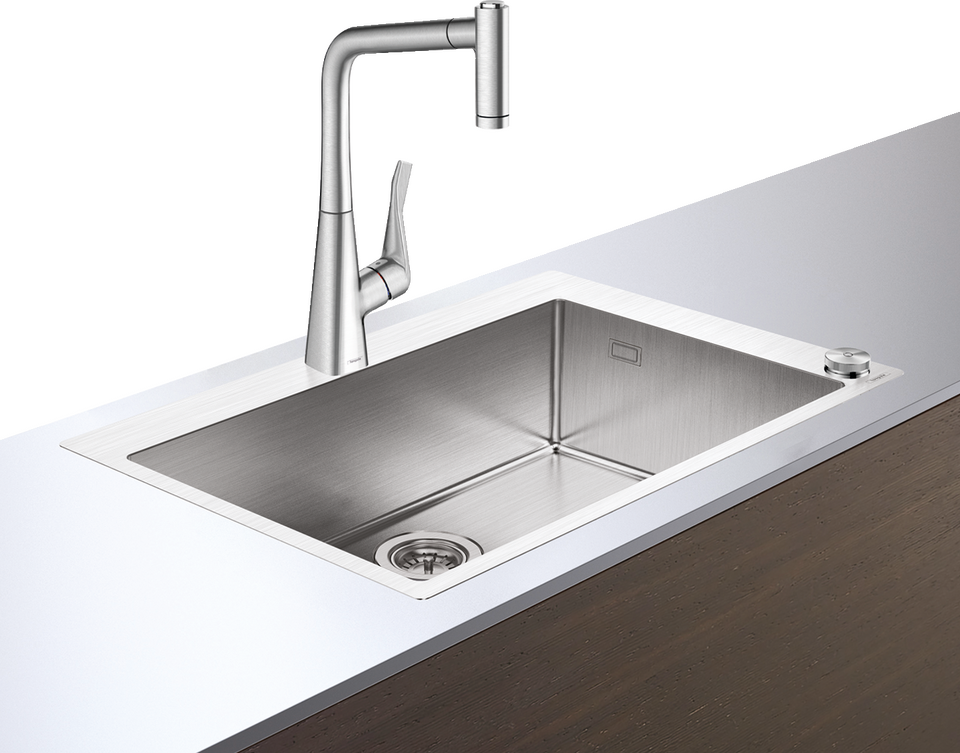

S712-F655 Built-in sink 180/450

S712-F655 Built-in sink 180/450
product.closeup.image.alt
1 / 2
 View in AR
 360° view
Change variant
hansgrohe S71
Select variant
S712-F655 Built-in sink 180/450
S712-F765 Built-in sink 370/370
Finish Stainless Steel

Model no. 43310800

Article features

  • cut-out dimensions: 735 x 480 mm
  • material: stainless steel
  • number of bowls: 1 main bowl and 1 additional bowl
  • tap hole and hole for pop-up waste control are pre-drilled
  • cabinet size: 80 cm
  • installation type: flat on the countertop (self-rimming) or flush-mount installation
  • position overflow: on the right side of the main bowl
  • tap ledge reinforcing for a tight and stable seating of the kitchen mixer
  • corner radius: 10 mm
  • sink depth: 185 mm
  • depth half sink: 135 mm
  • waste set not included - please order one waste set from the required parts

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Brochures

Instructions

Download all Instructions files

Cut-out guides

Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts

D15-11 Automatic waste and overflow set for double bowl
hansgrohe

D15-11 Automatic waste and overflow set for double bowl
F14 Multifunctional strainer
hansgrohe

F14 Multifunctional strainer

Optional accessories

F16 Cutting board oak
hansgrohe

F16 Cutting board oak
F15 Cutting board walnut
hansgrohe

F15 Cutting board walnut

Innovative technologies

Flush Mounted Installation

The sink is inserted flush with the countertop. The stepless transition creates additional work surface and simplifies cleaning, as there is no edge at the sink edge. This type of installation is best for countertops made of solid materials.

Top-mounted Installation

Top-mounted installation is the conventional type of installation and best for wooden or laminate worktops. The sink is inserted from above into a hole cut out of the worktop. This is easy to do and makes the flat edge of the sink look really great.

Flush Mounted Installation

Flush Mounted Installation

The sink is inserted flush with the countertop. The stepless transition creates additional work surface and simplifies cleaning, as there is no edge at the sink edge. This type of installation is best for countertops made of solid materials.

Top Mounted Installation

Top-mounted Installation

Top-mounted installation is the conventional type of installation and best for wooden or laminate worktops. The sink is inserted from above into a hole cut out of the worktop. This is easy to do and makes the flat edge of the sink look really great.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
