hansgrohe Rainfinity

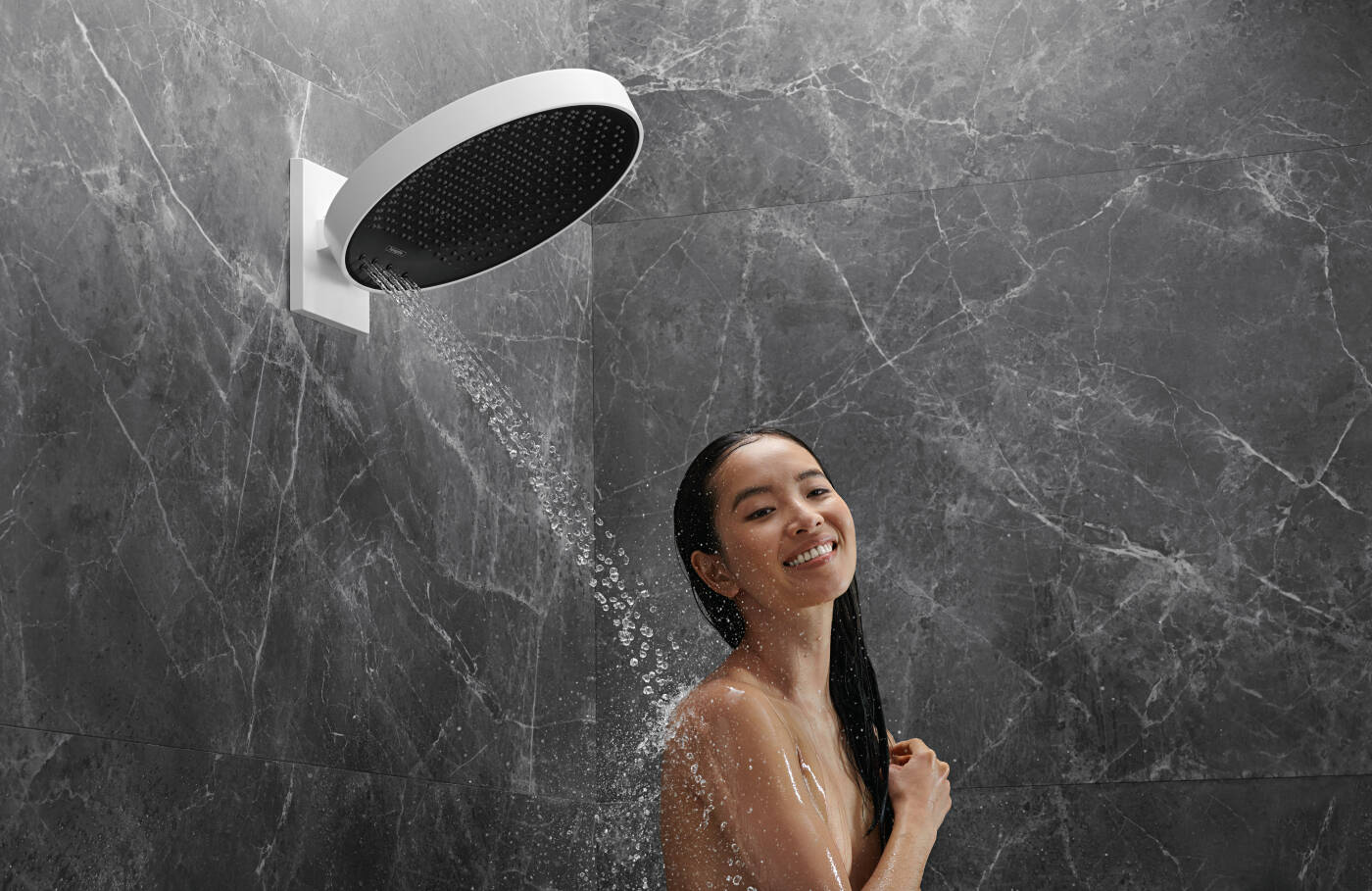

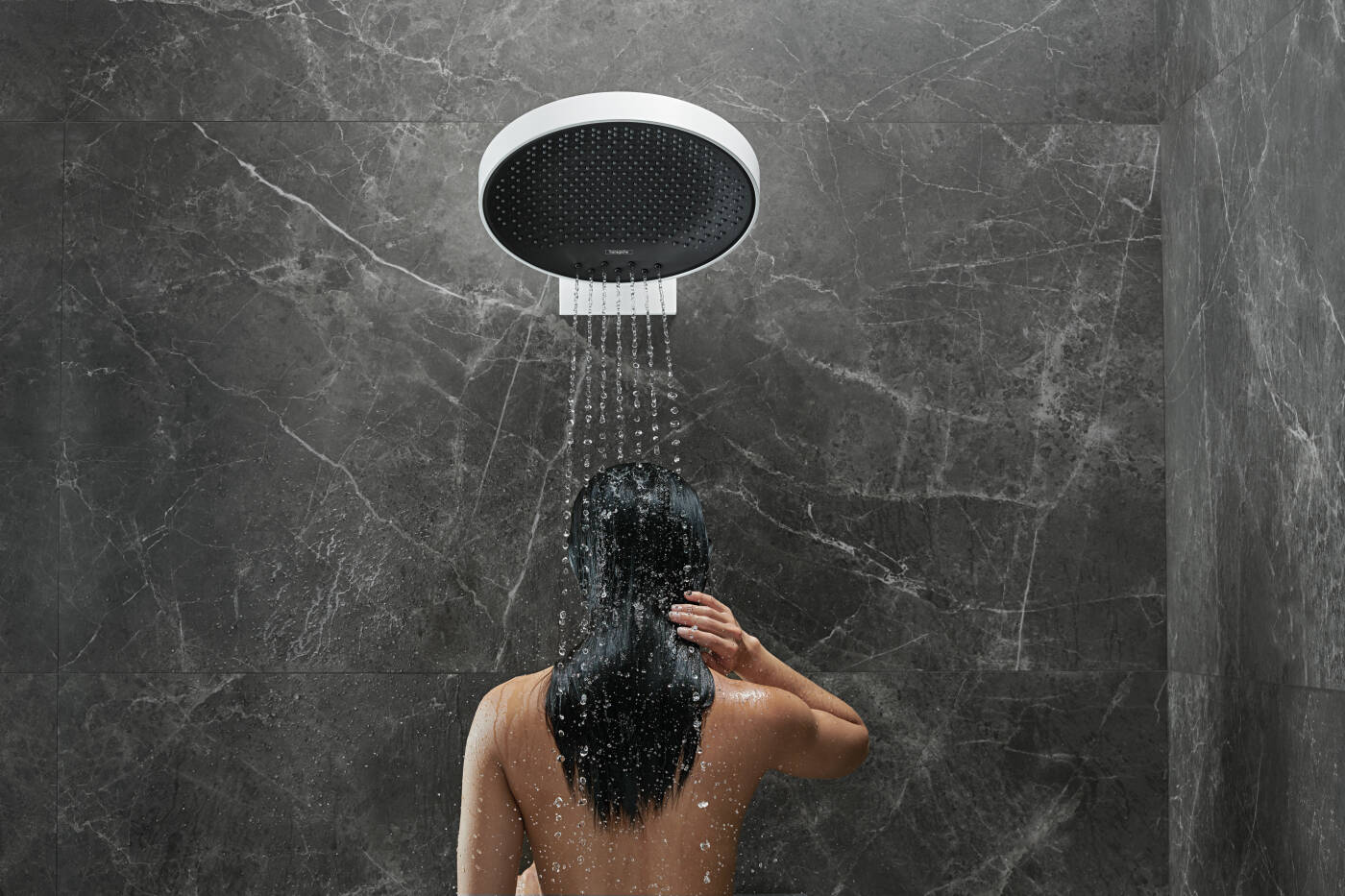

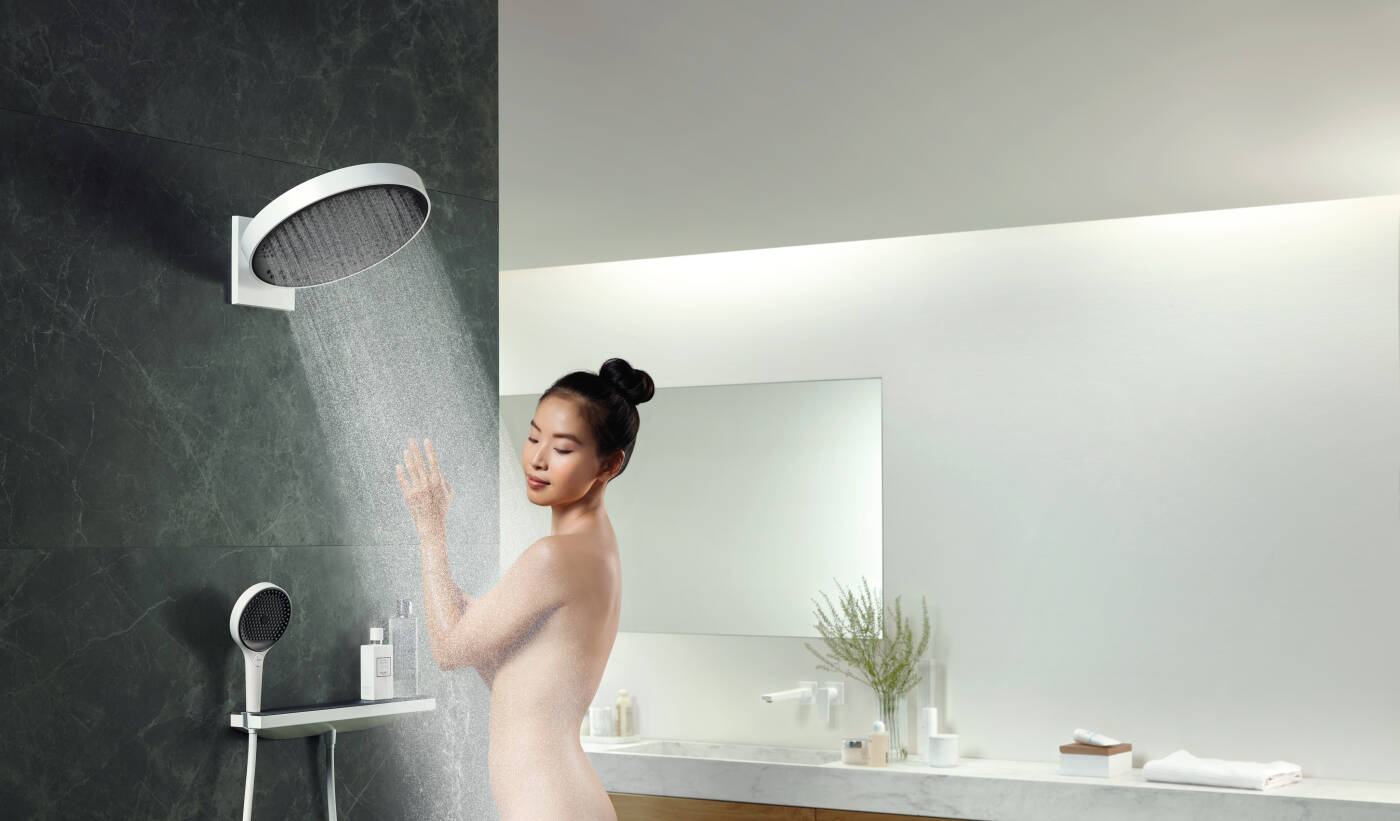

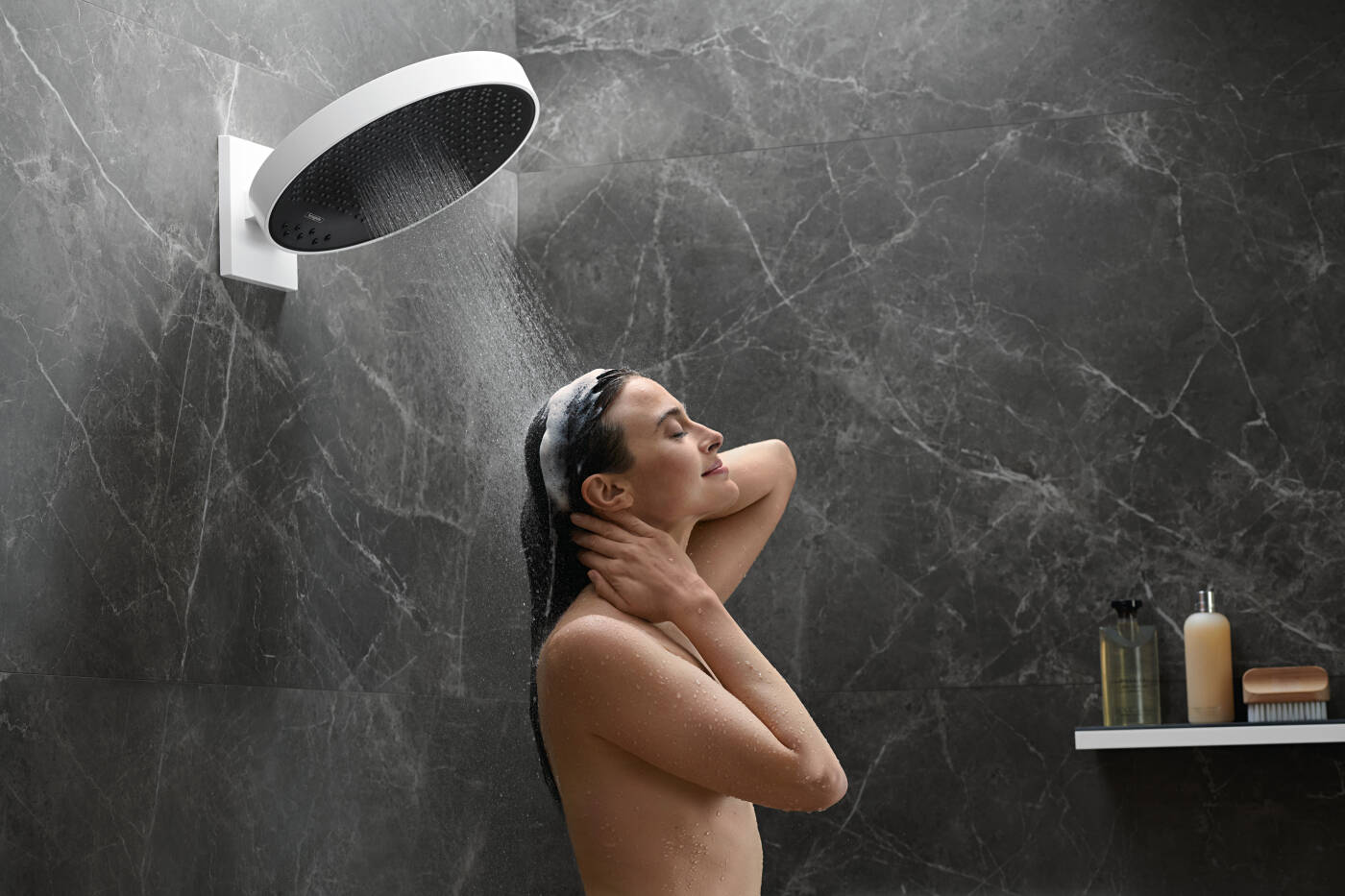

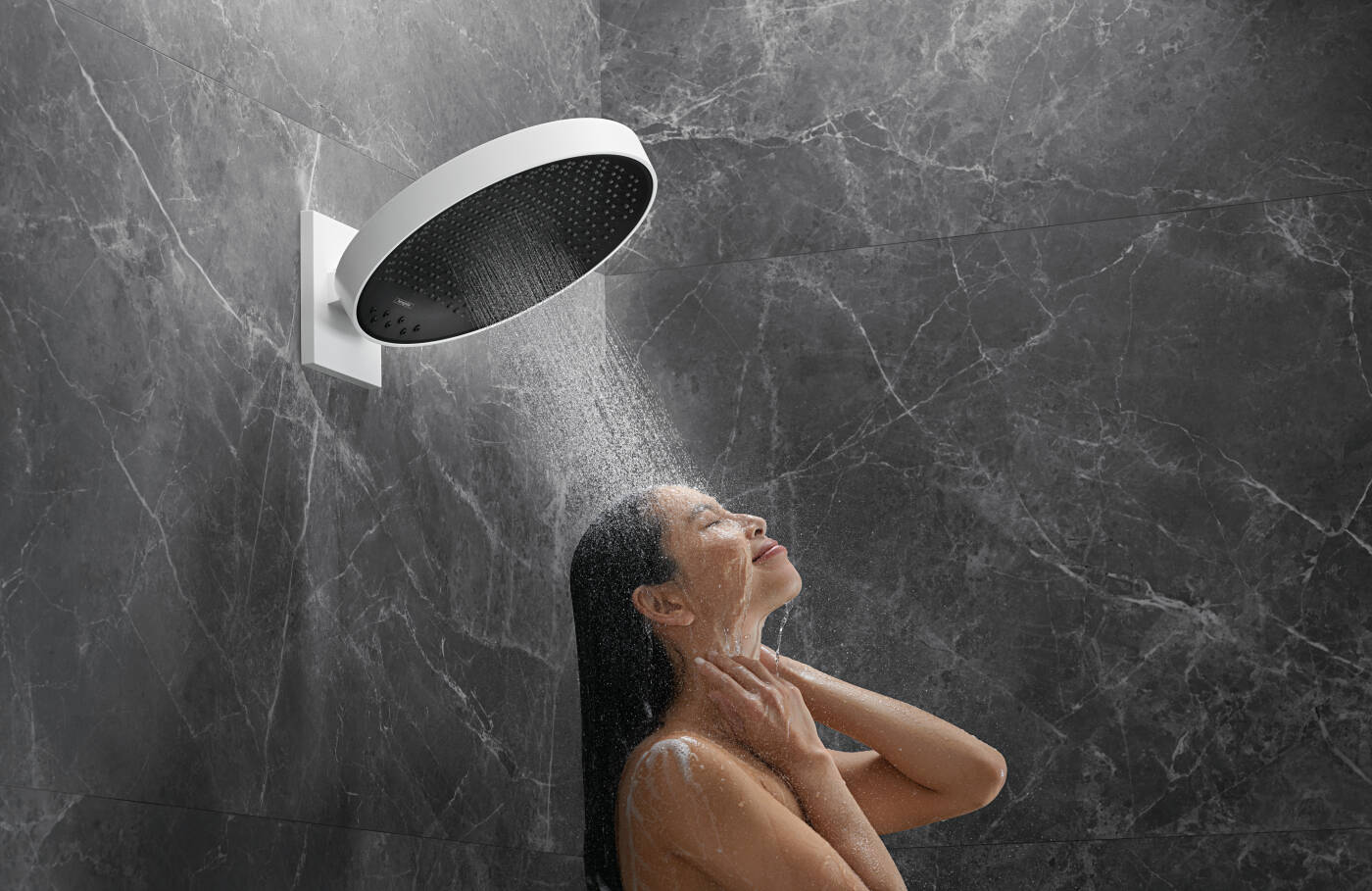

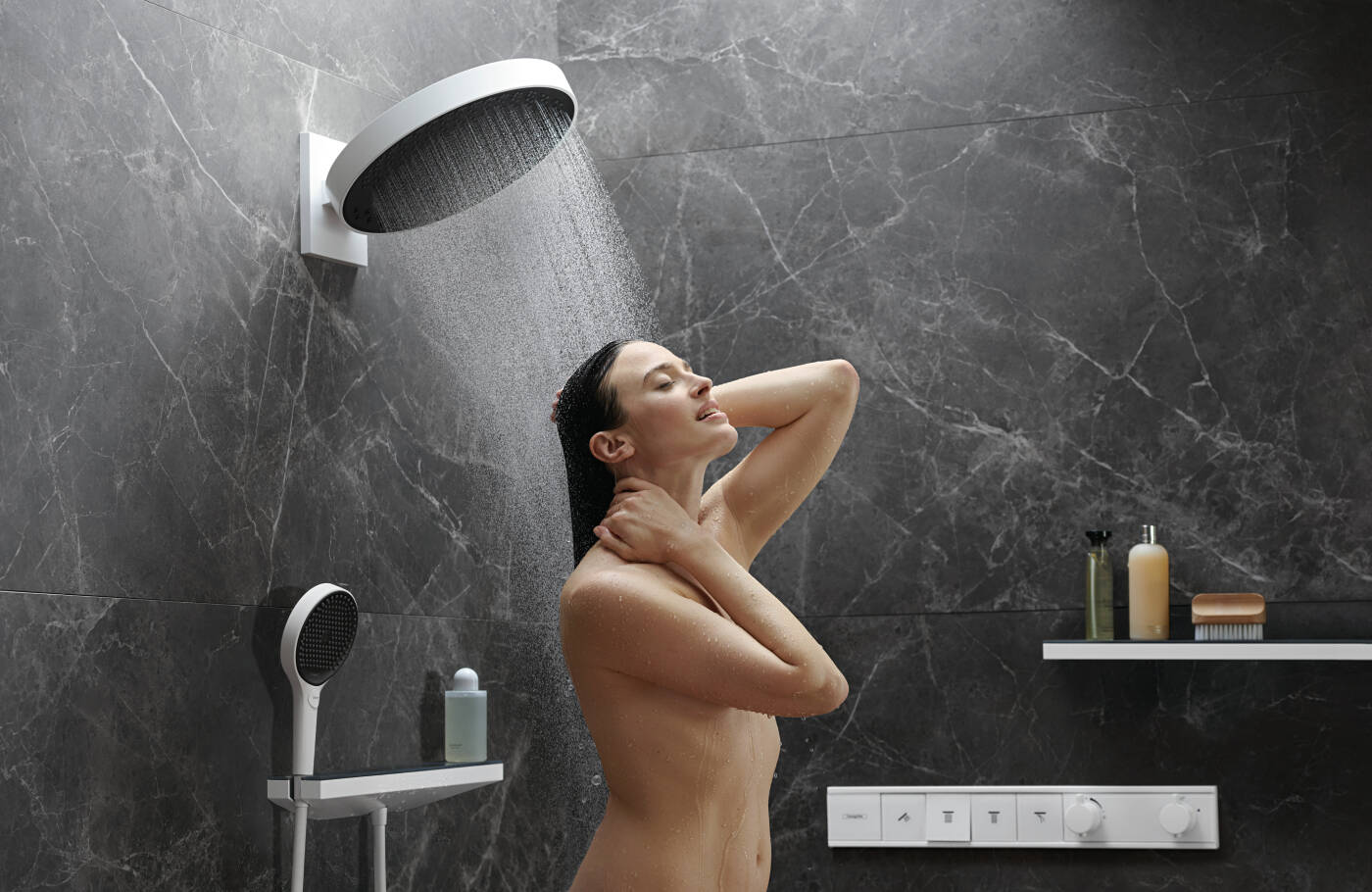

Overhead shower 360 3jet with wall connector

Overhead shower 360 3jet with wall connector
 View in AR
 360° view
Change variant
hansgrohe Rainfinity
Select variant
Overhead shower 360 3jet with wall connector
Overhead shower 250 3jet EcoSmart with wall connector
Overhead shower 250 3jet with wall connector
Finish Chrome

Model no. 26234000

Article features

  • consists of: overhead shower, wall outlet
  • shower head size: 360 mm
  • spray type: PowderRain, Intense PowderRain, RainStream
  • flow rate PowderRain spray at 3 bar: 20 l/min
  • flow rate Intense PowderRain at 3 bar: 18 l/min
  • flow rate RainStream spray at 3 bar: 16 l/min
  • function from: 12,2 l/min
  • maximum flow rate at 3 bar: 28,1 l/min
  • minimum flow pressure: 1,7 bar
  • projection: 381 mm
  • middle spray disc: 205 mm
  • frame: metal
  • material spray disc: aluminium
  • spray disc surface: graphite
  • overhead shower removable for cleaning
  • shower head vertically inclinable by 10-30°
  • the 3 spray zones must be controlled via 3 valves or a diverter valve with 3 outlets
  • installation: wall-mounted - based on iBox
  • connection dimension: DN15
  • not suitable for continuous flow water heaters

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Certificates

Environmental Product Declaration

 An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.

Installation information

Scale drawing

Download all Scale drawing files

Installation example

Download all Installation example files
Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts - Select variant

Basic set
hansgrohe iBox universal 2

Basic set
Adapter plate for iBox universal 2
hansgrohe

Adapter plate for iBox universal 2
Basic set
hansgrohe iBox universal

Basic set

Innovative technologies

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

QuickClean

Less limescale, more joy

Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.

XXL Performance

Great showering pleasure

XXL showering indulgence that envelops the complete body in real-life dreams of water using wonderfully soothing spray types from hand showers and overhead showers with diameters of 100 to 600 mm.

Spray Types

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.
Intense spray consisting of micro-fine droplets. The number of droplets is much higher for an extremely effective way to rinse out shampoo. The water feels velvety soft and ultra-lightweight on the skin, with very little splashback.
Lavish downpour with soft sprays that invigorate the body, mind and soul. The extraordinary spray consists of individual pearl-like droplets and is an intense, energising shower for people of all ages.

PowderRain

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.

Intense PowderRain

Intense spray consisting of micro-fine droplets. The number of droplets is much higher for an extremely effective way to rinse out shampoo. The water feels velvety soft and ultra-lightweight on the skin, with very little splashback.

RainStream

Lavish downpour with soft sprays that invigorate the body, mind and soul. The extraordinary spray consists of individual pearl-like droplets and is an intense, energising shower for people of all ages.

Awards

iF gold award 2019

iF gold award 2019

 Every year, a highly distinguished jury of experts presents this award to the best product designs from all over the world. Awarded by: International Forum Design.
Red Dot product design award 2019

Red Dot product design award 2019

 One of the most prestigious awards in the world. Awarded for top quality, innovative form and function since 1955 (North Rhine-Westphalia Design Centre).

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
