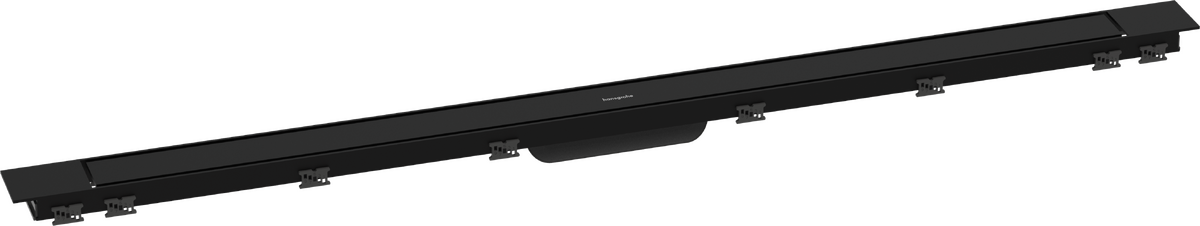

hansgrohe RainDrain Match PlusFinish set shower drain 1200 with height adjustable frame

View in AR
360° view
Change variant
{{points}}
Secure your talismans for this product.
Model no. 56218670
As of
Discount Group {0}
List price excl. VAT
List price is shown for comparison only. The actual retail price may be different from the price shown.
Remember product
Product noted
Product saved for 30 daysSee Wish List
The product could not be saved. Please try again.
Compare products
Product added
Product saved for 30 days.To the product comparison
The article could not be saved.
Please try again.
Please try again.
Article features
- consists of: design grate, height adjustable frame, Dryphon
- mounting type: free in the floor
- easy to clean surface
- easy adjustment to tile thickness with height adjustable frame (7 – 18 mm)
- tile thickness: up to 18 mm
- suitable for any type of tile
- up to 60 l/min drainage capacity
- where to use: new construction, renovation
- grate removal tool allows easy removal of the finish set
- type of odour seal: mechanical
- Dryphon enables waterless siphon system
- minimal installation height: 84 mm (flat uBox), 102 mm (standard uBox)
- grate material: Stainless Steel 304 (1.4301)
- suitable for primary and secondary drainage
- frame width: 62 mm
Downloads
Planning data
Technical drawings
Instructions
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Information
Required parts
Required parts - Select variant
Innovative technologies
For a flush integration into the floor
The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.
Waterless siphon system
The Dryphon system opens and closes with a flexible membrane. This membrane allows water to pass through with a high drainage capacity (60 l/min) when needed while blocking sewer gases when no water is flowing through.
Easy to clean surface
At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.
Adjustable frame height
For a flush integration into the floor
The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.
Dryphon
Waterless siphon system
The Dryphon system opens and closes with a flexible membrane. This membrane allows water to pass through with a high drainage capacity (60 l/min) when needed while blocking sewer gases when no water is flowing through.
QuickClean
Easy to clean surface
At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.
Trust in highest quality
5
year manufacturer's guarantee
Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.Â
