hansgrohe Metris Select M712-hole single lever kitchen mixer 200, pull-out spout, 1jet
Model no. 14845007
Please try again.
Article features
- ComfortZone 200
- l-spout
- swivel range adjustable in 2 steps to 110° or 150°
- normal spray
- Select button for a comfortable start/stop of the water flow
- connection dimension: DN15

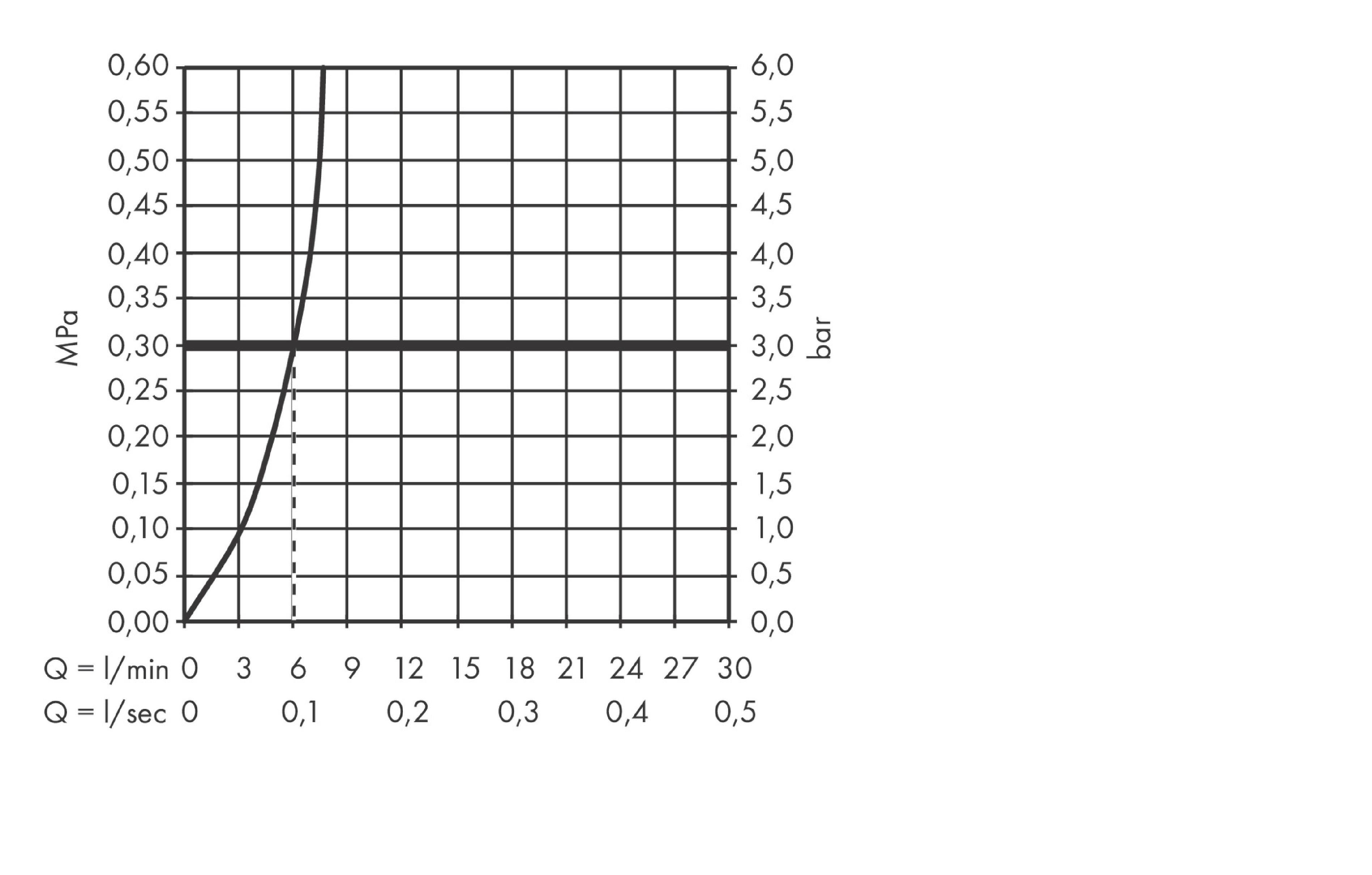

- maximum flow rate at 3 bar: 7 l/min
- ceramic cartridge
- connection type: G ½
- not suitable for continuous flow water heaters
- extension length up to 50 cm
Downloads
Technical drawings
Brochures
Installation information
Scale drawing
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Spare parts for build year 05/19
To the spare parts catalogItem no. | DescriptionArticle no.Description and article no. |
---|
1 | spout cpl.92583000 |
2 | hose 1,50 m92569000 |
3 | O-ring 8x298112000 |
4 | handspray92570000 |
5 | cover92566000 |
6 | O-Ring 14x1,598201000 |
7 | nut92567000 |
8 | shut off unit98463000 |
9 | aerator M24x1 (15 l/min)13913000 |
10 | set of lever collars98365000 |
11 | O-ring 21x2,598211000 |
12 | O-ring 38x2,598198000 |
13 | support97523000 |
14 | fixing set (Ø 28)92909000 |
15 | lever collar97548000 |
16 | weight92500000 |
17 | handle93090000 |
18 | screw cover93093000 |
19 | hollow set screw M6x698445000 |
20 | escutcheon93094000 |
21 | nut92627000 |
22 | O-ring 27x1,592527000 |
23 | cartridge, assy97685000 |
24 | seal98865000 |
25 | O-ring 23x298398000 |
26 | O-ring 40x1,598464000 |
27 | O-ring 36x298156000 |
28 | fixing set (Ø 34)95049000 |
29 | connection hose 900 mm M8x0,75 G3/898758000 |
30 | sealing set95581000 |
31 | squeezing connection96099000 |
32 | connection hose 600 mm M8x0,75 G3/892629000 |
33 | O-ring 7x1,598422000 |
34 | non return valve DW 1096456000 |
35 | filter92532000 |
36 | sealing set92533000 |
37 | extension hose 700 mm93095000 |
Innovative technologies
Convenience at the touch of a button
For more space at the kitchen sink
Flexibility at the kitchen sink
Less limescale, more joy
Select
Convenience at the touch of a button
Fans of user-friendliness can now conveniently start and stop the flow of water at the touch of a button. For accurate, ergonomic and easy water controls that can be operated with the back of the hand or an elbow.
ComfortZone
For more space at the kitchen sink
Describes the large space between the kitchen tap and sink – vertically and horizontally. These high-quality taps are very user-friendly and have a flexible swivel area. For maximum room to move.
Pull-out
Flexibility at the kitchen sink
More comfort and room to move: Pull-out sprays or pull-out spouts expand the operating radius around the kitchen sink to take water to exactly where it’s needed in just one motion.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
Spray Types
NormalSpray
Air-enriched water spray with a really nice feel. Air is mixed in to create a fuller, lighter and softer spray that is an efficient help with every activity at the kitchen sink.
