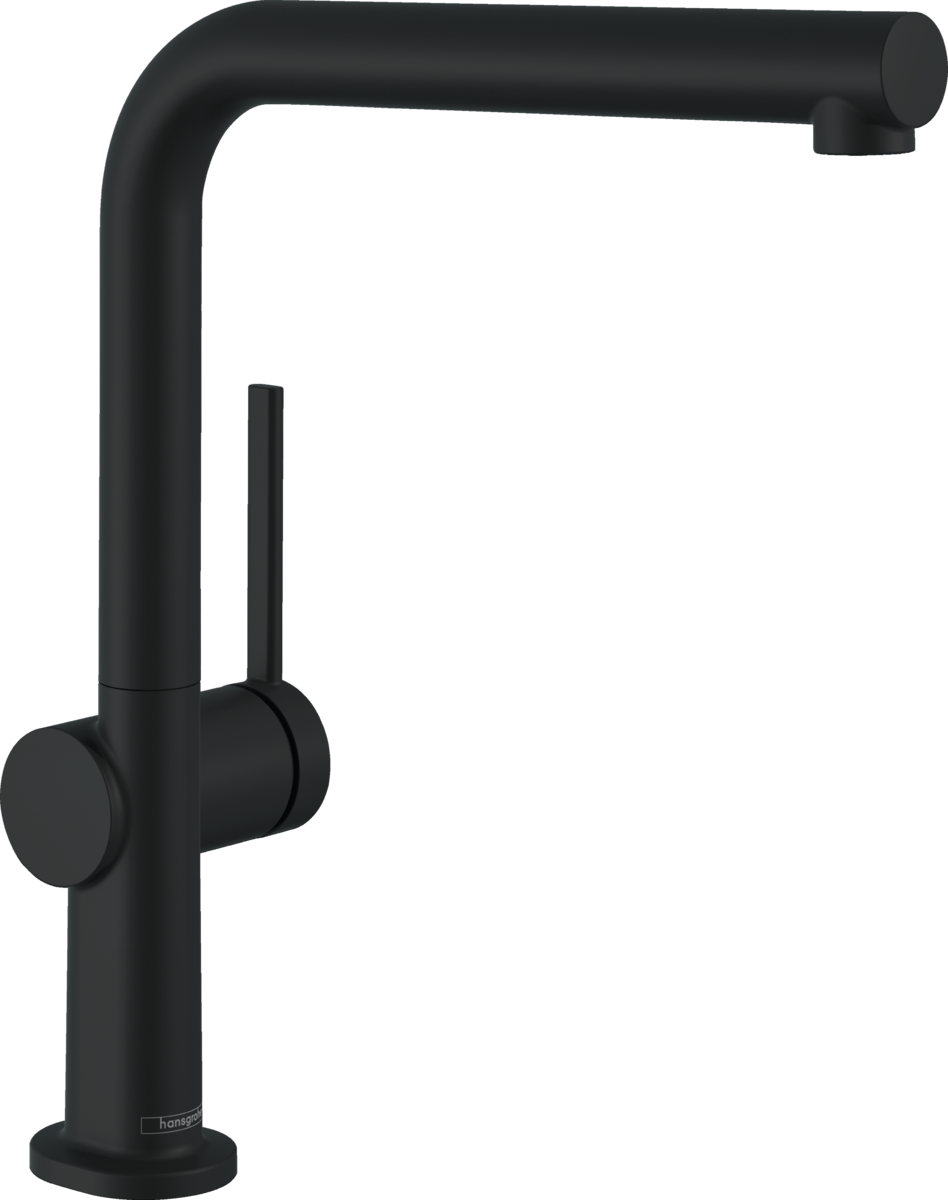

hansgrohe Talis M54
Single lever kitchen mixer 270, LowPressure/vented hot water cylinders, 1jet

NEW
product.image.alt
 View in AR
 360° view
Finish Matt Black

Model no. 72859670

Article features

  • for vented hot water cylinders (no pressure)
  • ComfortZone 270
  • l-spout
  • swivel range adjustable in 4 steps 60°, 110°, 150° or 360°
  • laminar spray
  • connection dimension: DN15
  • maximum flow rate at 3 bar: 5 l/min
  • ceramic cartridge
  • connection type: G â…œ connections
  • temperature limitation adjustable
  • integrated non-return valve
  • not suitable for continuous flow water heaters
  • tap hole with Ø 35 mm required

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Brochures

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Spare parts for build year 05/23

To the spare parts catalog
To the spare parts catalog
product.spareparts.image.alt
Item no. DescriptionArticle no.Description and article no.
1 spout cpl.93758670
2 screw94319000
3 spray former94870000
4 service tool93750000
5 O-Ring 14x2,598189000
6 O-ring 12x298214000
7 handle93736670
8 hollow set screw M5x598446000
9 screw cover93735610
10 flange93737670
11 nut93738000
12 cartridge, assy93760000
13 O-ring 36x398052000
14 sleeve nut97532000
15 fixing set (Ø 34)95049000
16 connection hose 900 mm M8x0,75 G3/893746000
17 sealing set95581000
18 back flow preventor cartridge95051000
19 flow limiter / non return valve95363000
20 non return valve DW 1096456000
21 filter packing95291000
22 connection hose 900 mm M8x0,75 8 mm95693000
23 O-ring 7x1,598422000

Innovative technologies

Kitchen faucets for low water pressure

Low water pressure? No problem. Kitchen taps fitted with low-pressure technology can be used with a water pressure as low as 0.2 bar. Suitable for boilers and heat exchangers.

For more space at the kitchen sink

Describes the large space between the kitchen tap and sink – vertically and horizontally. These high-quality taps are very user-friendly and have a flexible swivel area. For maximum room to move.

LowPressure

Kitchen faucets for low water pressure

Low water pressure? No problem. Kitchen taps fitted with low-pressure technology can be used with a water pressure as low as 0.2 bar. Suitable for boilers and heat exchangers.

ComfortZone

For more space at the kitchen sink

Describes the large space between the kitchen tap and sink – vertically and horizontally. These high-quality taps are very user-friendly and have a flexible swivel area. For maximum room to move.

Spray Types

Crystal-clear spray type with no added air for the sink. This spray is a great help when going through the day-to-day kitchen routine, e.g. quickly filling large pots or bowls. Efficient with very little splashback.
LaminarSpray

LaminarSpray

Crystal-clear spray type with no added air for the sink. This spray is a great help when going through the day-to-day kitchen routine, e.g. quickly filling large pots or bowls. Efficient with very little splashback.

LaminarSpray

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
