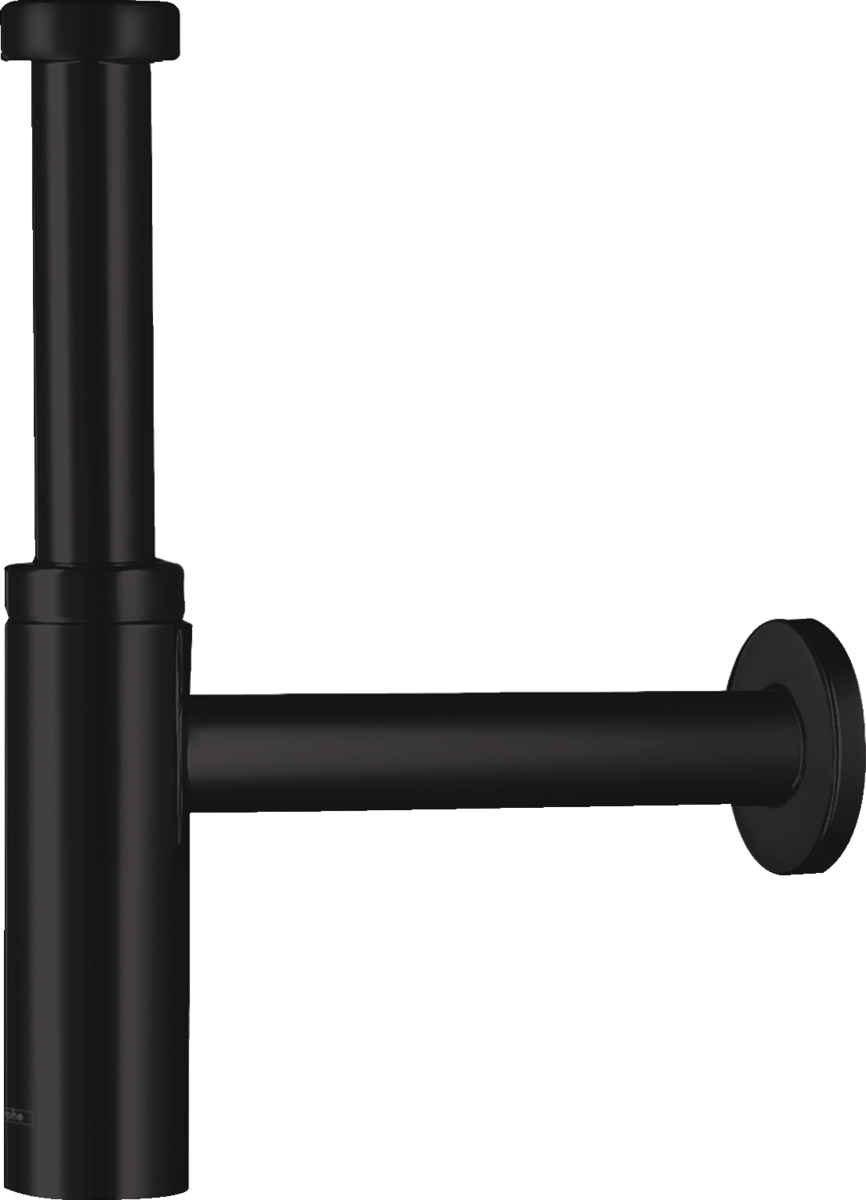

Design trap Flowstar S

product.image.alt
product.closeup.image.alt
1 / 2
 View in AR
 360° view
Finish Matt Black

Model no. 52105670

Article features

  • adjustment distance 60 - 165 mm
  • distance to wall 330 mm
  • odour trap - backwater height is 75 mm
  • connection dimension entry: G 1¼
  • connection dimension outlet: DN32

Downloads

Planning data

Download all Planning data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Spare parts for build year 11/19

To the spare parts catalog
To the spare parts catalog
product.spareparts.image.alt
Item no. DescriptionArticle no.Description and article no.
1 seal 1¼"53971000
2 sleeve pipe 1¼" 150 mm96420670
3 wall pipe 1¼" 500 mm53493670
4 escutcheon96490670
5 sealed box96487000
6 sleeve96554670
7 sleeve nut97702670
8 plug97258000
9 wedge-shaped seal 1¼"97701000
10 O-ring 38x2,598198000

Awards

iF product design award 2019

 Everything from cars to toothbrushes: products that receive this award rank among the best-designed products in the world. Globally recognised seal of quality, awarded by the International Forum Design since 1953.

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
