AXOR Edge

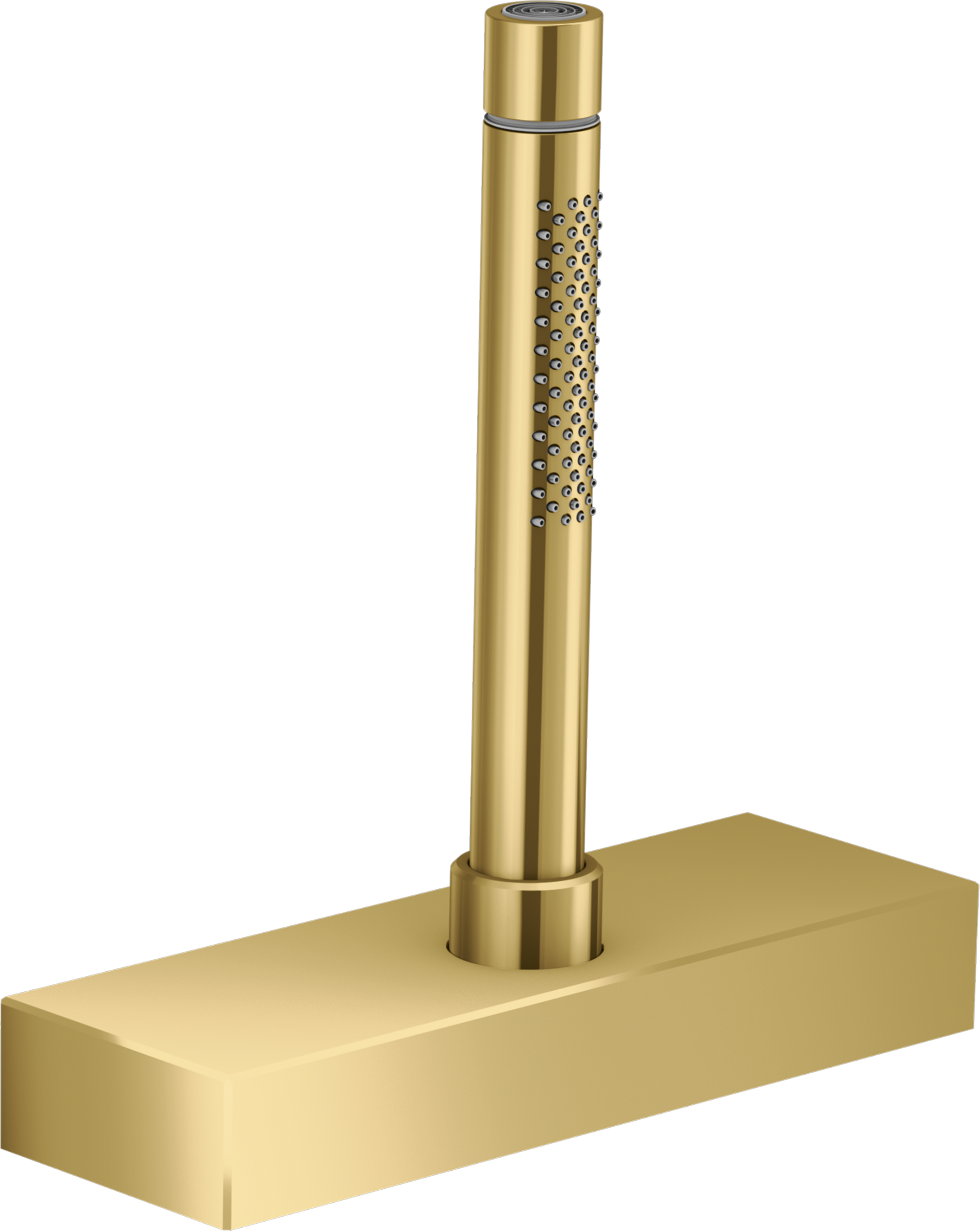

Rim mounted bath set

Rim mounted bath set
 View in AR
 360° view
Finish Polished Gold Optic

Model no. 46470990

Article features

  • consists of: baton hand shower, escutcheon, hose box, shower hose
  • suitable for installation on bath rim
  • spray type hand shower: Rain, MonoRain
  • sBox for quiet, smooth and protected hose guidance
  • connection thread: G ½
  • connection dimension: DN15
  • no additional maintenance opening required
  • maximum pull-out length of hand shower 1,45 m
  • removable for service at any time
  • maximum flow rate at 3 bar: 14,5 l/min

Downloads

Planning data

Download all Planning data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts

Rim and tile mounted bath basic set
sBox

Rim and tile mounted bath basic set

Optional accessories

Mounting angle set for installation plate for tile mounted installation
sBox

Mounting angle set for installation plate for tile mounted installation
Installation plate for tile mounted installation
sBox

Installation plate for tile mounted installation

Spray Types

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.
Focused and extremly gentle spray for feel-good wellness. The focused spray type is perfect for hydrotherapeutic showering and cold water treatments. For anyone who loves winding down in their shower or bath tub.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

MonoRain

Focused and extremly gentle spray for feel-good wellness. The focused spray type is perfect for hydrotherapeutic showering and cold water treatments. For anyone who loves winding down in their shower or bath tub.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
