Discontinued product

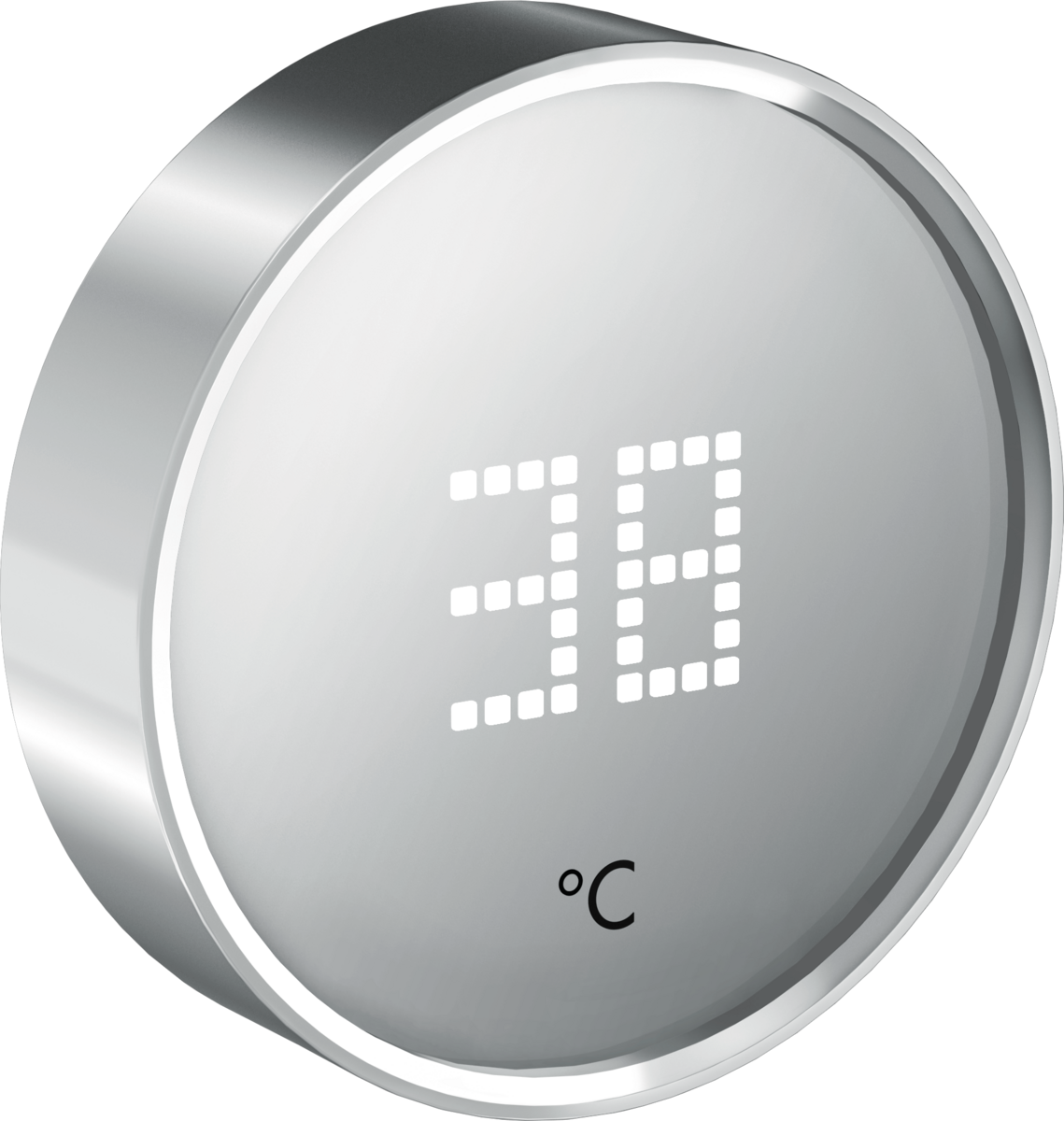

RainButton
Symbol temperature

Symbol temperature
 View in AR
 360° view

Model no. 25010000

Find the right spare part
Remember product Product noted
Product saved for 30 daysSee Wish List
The product could not be saved. Please try again.

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Article features

  • rotary and push button for setting the temperature
  • comfortable operation turning and pushing movement
  • comfort function for hot water rinsing, possible up to 70°C for a short time
  • temperature safety lock at 40°C, max. mixed water temperature limited to 43°
  • LED display for temperature and hot water rinsing
  • LED status display (battery level, fault, connection)
  • radio standard: BLE
  • chargeable via a Qi charging pad
  • removable for loading
  • Battery life up to 2 months during normal operation
  • power supply: Battery mode
  • IP degree of protection: IPX5
  • temperature limitation not adjustable
  • material: metal housing, safety glass
  • installation: The symbols can be freely placed via an adhesive or screw connection
  • surface front screen: mirror glass, housing chrome
