hansgrohe Finoris

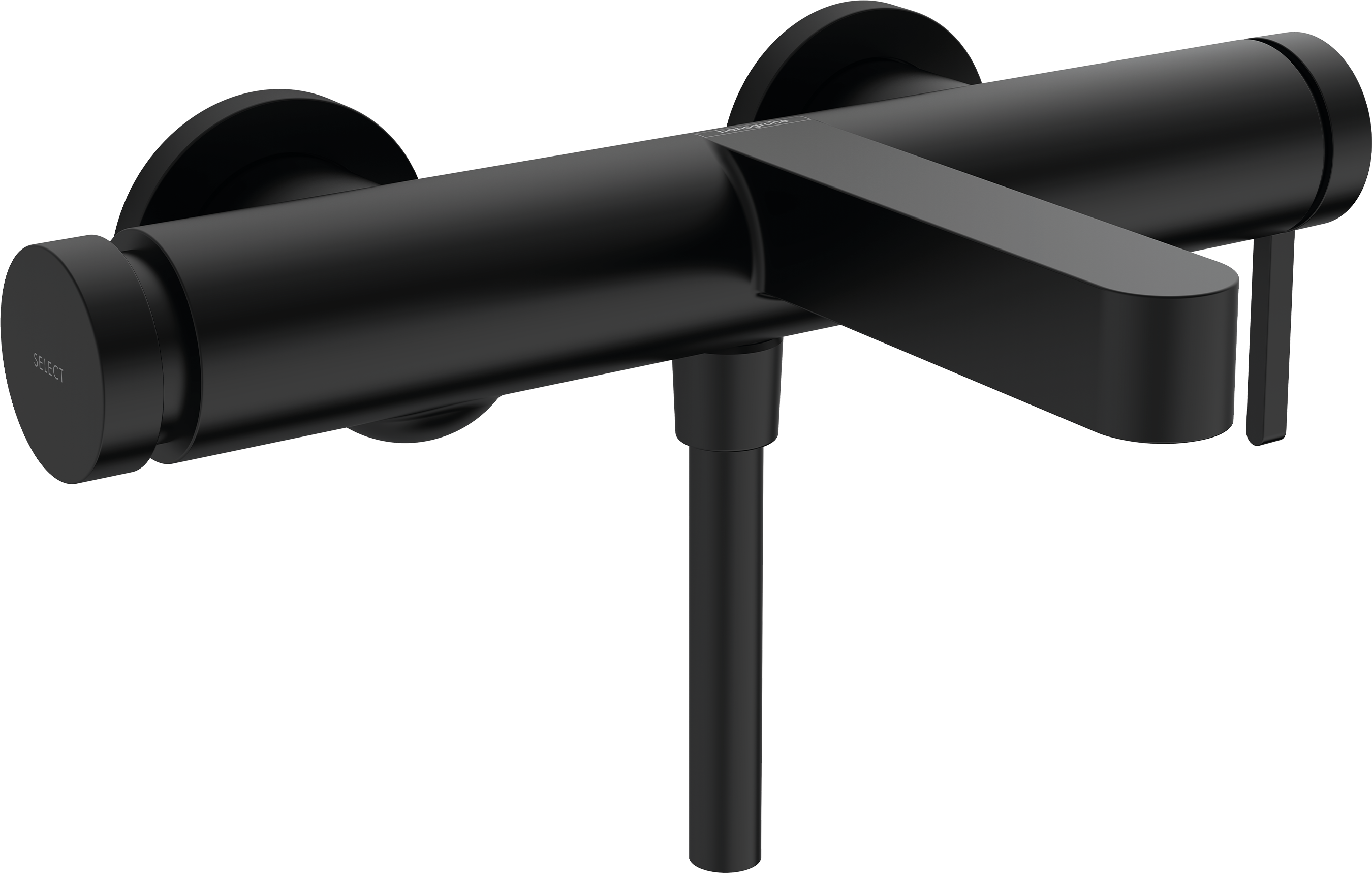

Single lever bath mixer for exposed installation

Single lever bath mixer for exposed installation
 View in AR
 360° view
Finish Matt Black

Model no. 76420670

Article features

  • 2 functions
  • projection: 194 mm
  • centre distance: 150 ± 12 mm
  • spray type mixer: NormalSpray
  • maximum flow rate at 3 bar: 19 l/min
  • flow rate for bath spout at 3 bar: 19 l/min
  • maximum flow rate of hand shower at 3 bar: 14,7 l/min
  • ceramic cartridge
  • pressure diverter Select with automatic resetting
  • protected against backflow, according to DIN EN 1717
  • with silencer
  • suitable for continous flow water heaters
  • connection dimension: DN15
  • connection type: S-connections
  • wall-mounted
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Optional accessories

S-connections adapter G ¾ for renovation
hansgrohe

S-connections adapter G ¾ for renovation

Innovative technologies

More pleasure, more efficiency

Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.

Diverting made easy

The Select button replaces the diverter on the bath tub. At the touch of a button, water comes out of the bath filler or shower head. In the idle position, the system returns to the bath filler so that no-one gets accidentally sprayed with water.
Diverting made easy

AirPower

More pleasure, more efficiency

Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.

Select

Diverting made easy

The Select button replaces the diverter on the bath tub. At the touch of a button, water comes out of the bath filler or shower head. In the idle position, the system returns to the bath filler so that no-one gets accidentally sprayed with water.

Awards

iF product design award 2021

iF product design award 2021

 Everything from cars to toothbrushes: products that receive this award rank among the best-designed products in the world. Globally recognised seal of quality, awarded by the International Forum Design since 1953.
Red Dot product design award 2021

Red Dot product design award 2021

 One of the most prestigious awards in the world. Awarded for top quality, innovative form and function since 1955 (North Rhine-Westphalia Design Centre).
German Design Award (Gold) 2022

German Design Award (Gold) 2022

 A quality seal awarded by the German Design Council since 2011, for design products featuring trendsetting quality.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
