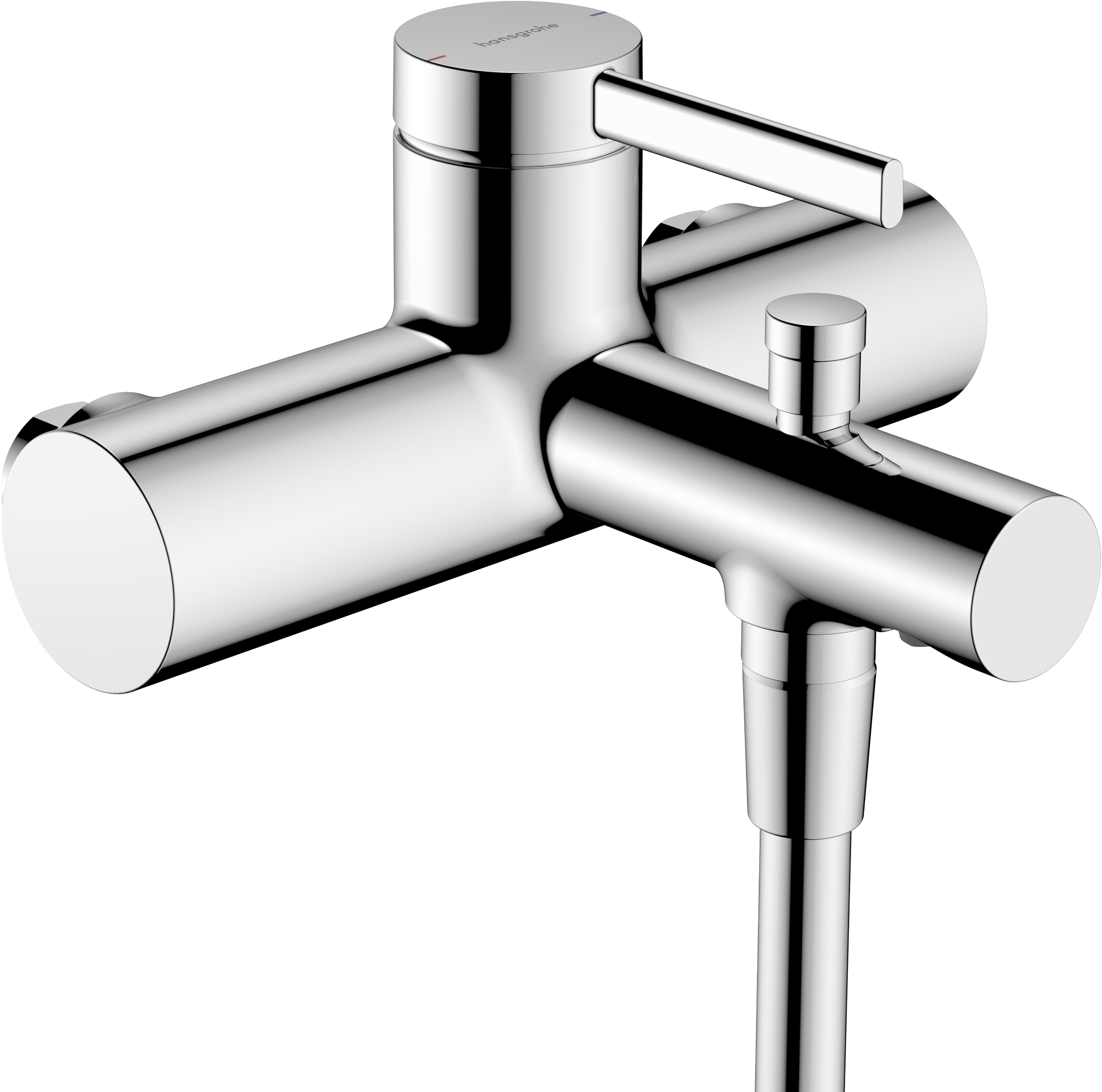

hansgrohe Zesis S
Single lever bath mixer for exposed installation with centre distance 15,3 cm

Single lever bath mixer for exposed installation with centre distance 15
product.closeup.image.alt
1 / 2
 View in AR
 360° view
Change variant
hansgrohe Zesis S
Select variant
Single lever bath mixer for exposed installation with centre distance 15,3 cm
Single lever bath mixer for exposed installation
Finish Chrome

Model no. 74421000

Article features

  • 2 functions
  • projection: 144 mm
  • centre distance: 153 mm
  • spray type mixer: NormalSpray
  • maximum flow rate at 3 bar: 19 l/min
  • flow rate for bath spout at 3 bar: 19 l/min
  • maximum flow rate of hand shower at 3 bar: 12 l/min
  • ceramic cartridge
  • temperature limitation adjustable
  • diverter with automatic resetting
  • non-return valve
  • with silencer
  • suitable for continous flow water heaters
  • connection dimension: DN15
  • wall-mounted
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Innovative technologies

More pleasure, more efficiency

Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.

AirPower

More pleasure, more efficiency

Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
