hansgrohe Vernis Shape

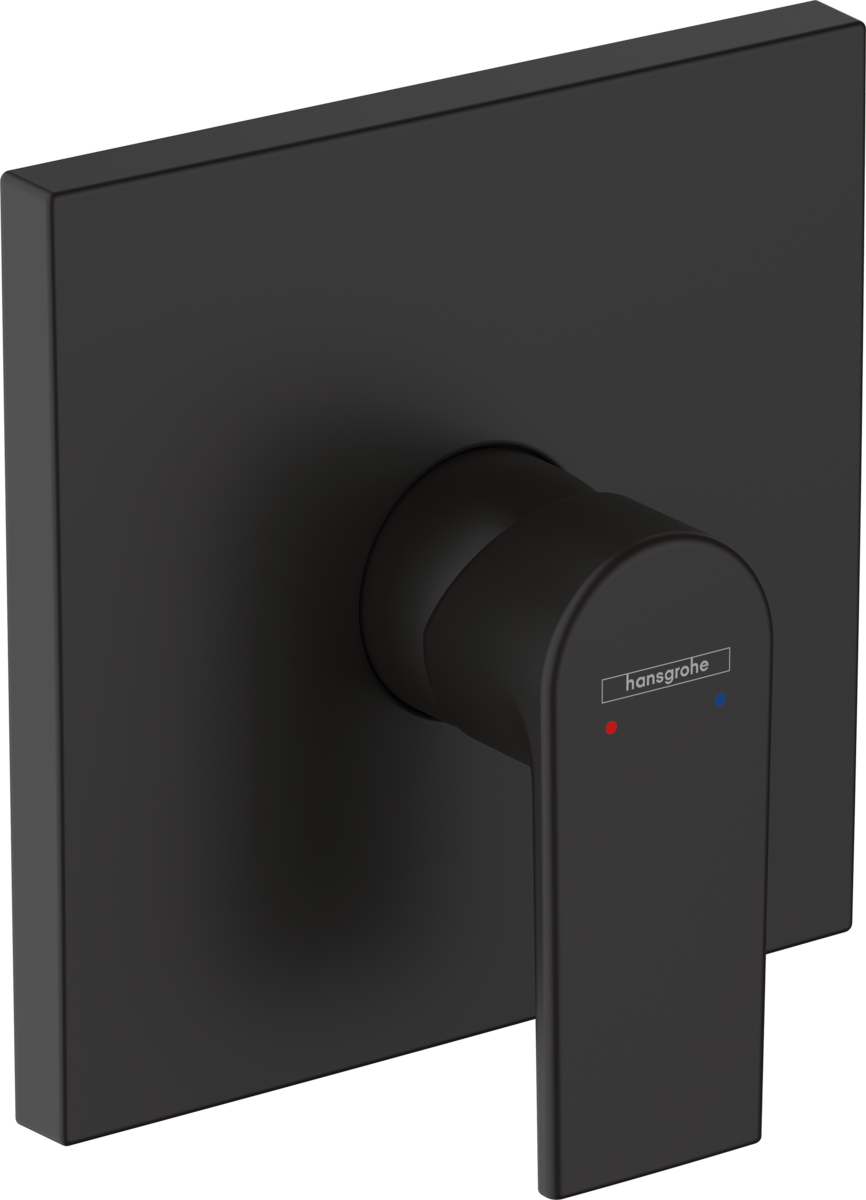

Single lever shower mixer for concealed installation for iBox universal

Single lever shower mixer for concealed installation for iBox universal
product.closeup.image.alt
1 / 2
 View in AR
 360° view
Finish Matt Black

Model no. 71668670

Article features

  • 1 function
  • maximum flow rate at 3 bar: 29,3 l/min
  • maximum flow rate at 1 bar: 15,5 l/min
  • ceramic cartridge
  • temperature limitation adjustable
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • connection type: basic set

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts - Select variant

Basic set
hansgrohe iBox universal 2

Basic set
Adapter plate for iBox universal 2
hansgrohe

Adapter plate for iBox universal 2
Basic set
hansgrohe iBox universal

Basic set
