hansgrohe Vernis Blend

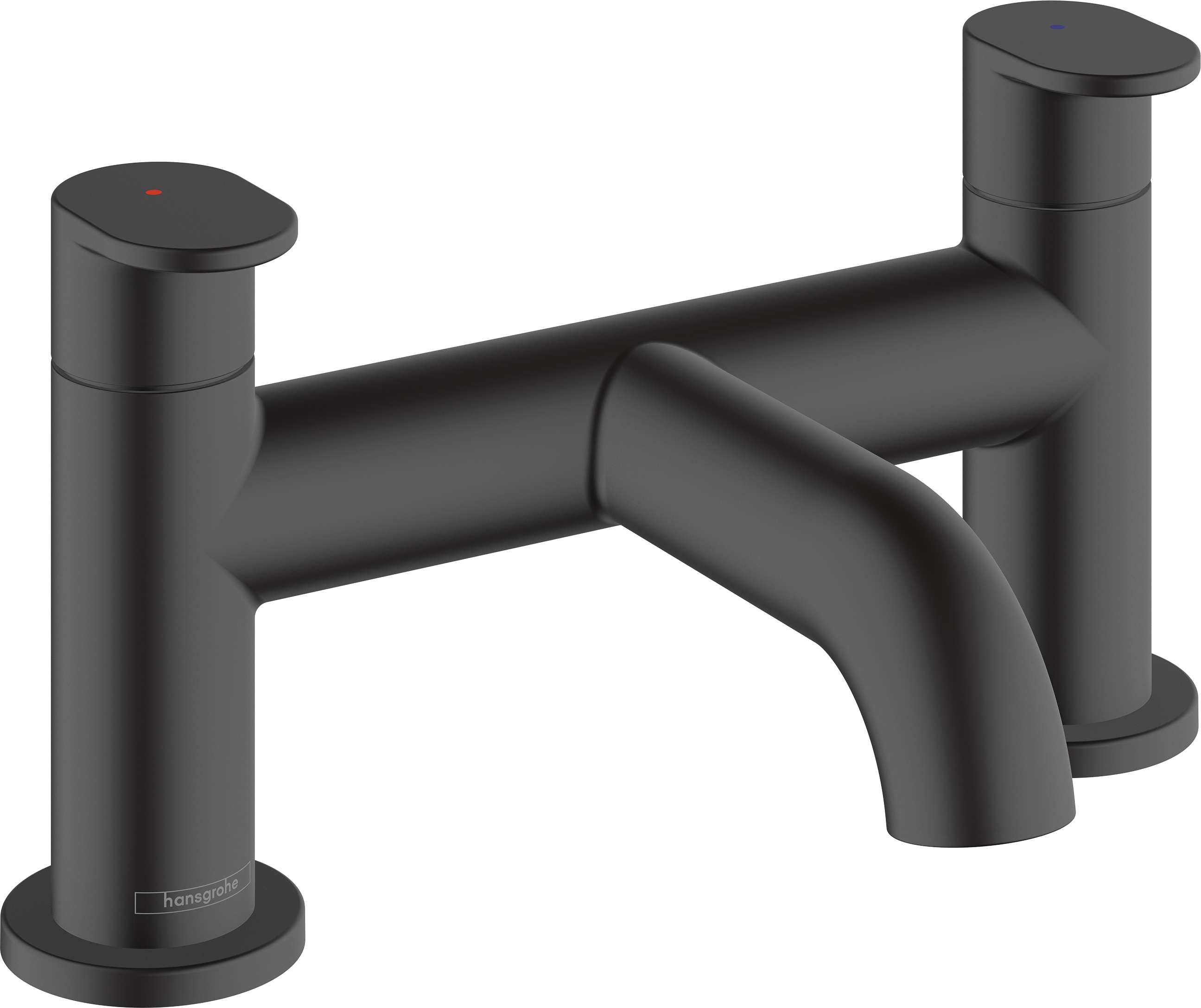

2-hole rim mounted bath mixer

2-hole rim mounted bath mixer
 View in AR
 360° view
Finish Matt Black

Model no. 71442670

Article features

  • 1 function
  • projection: 110 mm
  • centre distance: 180 mm
  • maximum flow rate at 3 bar: 50 l/min
  • ceramic valves hot/cold 90°
  • operating pressure from 0.2 bar
  • connection dimension: DN20
  • connection type: G ¾
  • installation on bath rim
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
