hansgrohe Tecturis S

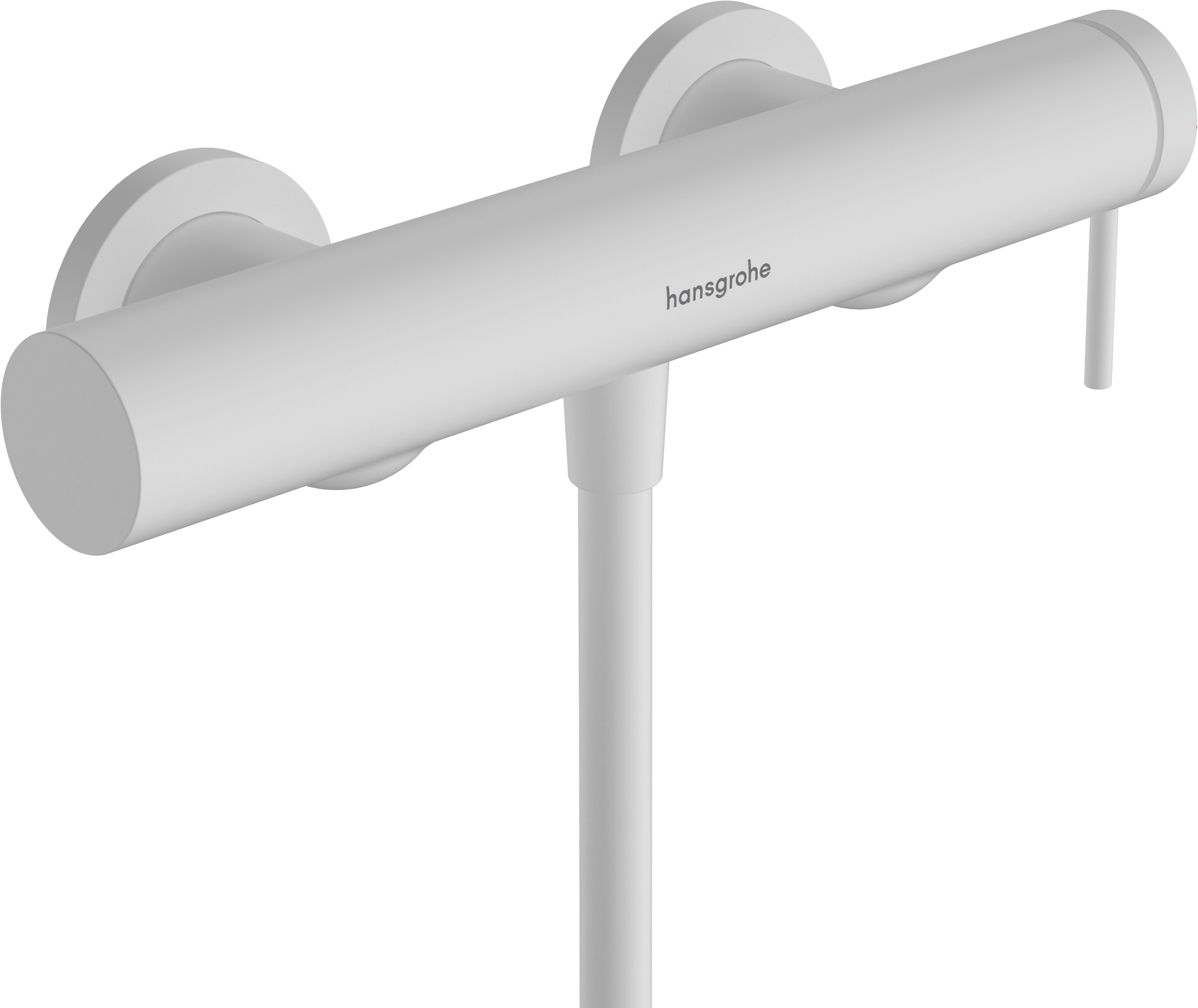

Single lever shower mixer for exposed installation

Single lever shower mixer for exposed installation
 View in AR
 360° view
Finish Matt White

Model no. 73622700

Article features

  • 1 function
  • centre distance: 150 ± 12 mm
  • maximum flow rate at 3 bar: 24 l/min
  • flow rate of hand shower at 3 bar: 12,3 l/min
  • ceramic cartridge
  • temperature limitation adjustable
  • non-return valve
  • with silencer
  • hose connection: DN15
  • connection dimension: DN15
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • connection type: S-connections

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Awards

iF product design award 2023

iF product design award 2023

 Everything from cars to toothbrushes: products that receive this award rank among the best-designed products in the world. Globally recognised seal of quality, awarded by the International Forum Design since 1953.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
