hansgrohe Sanibel 3001

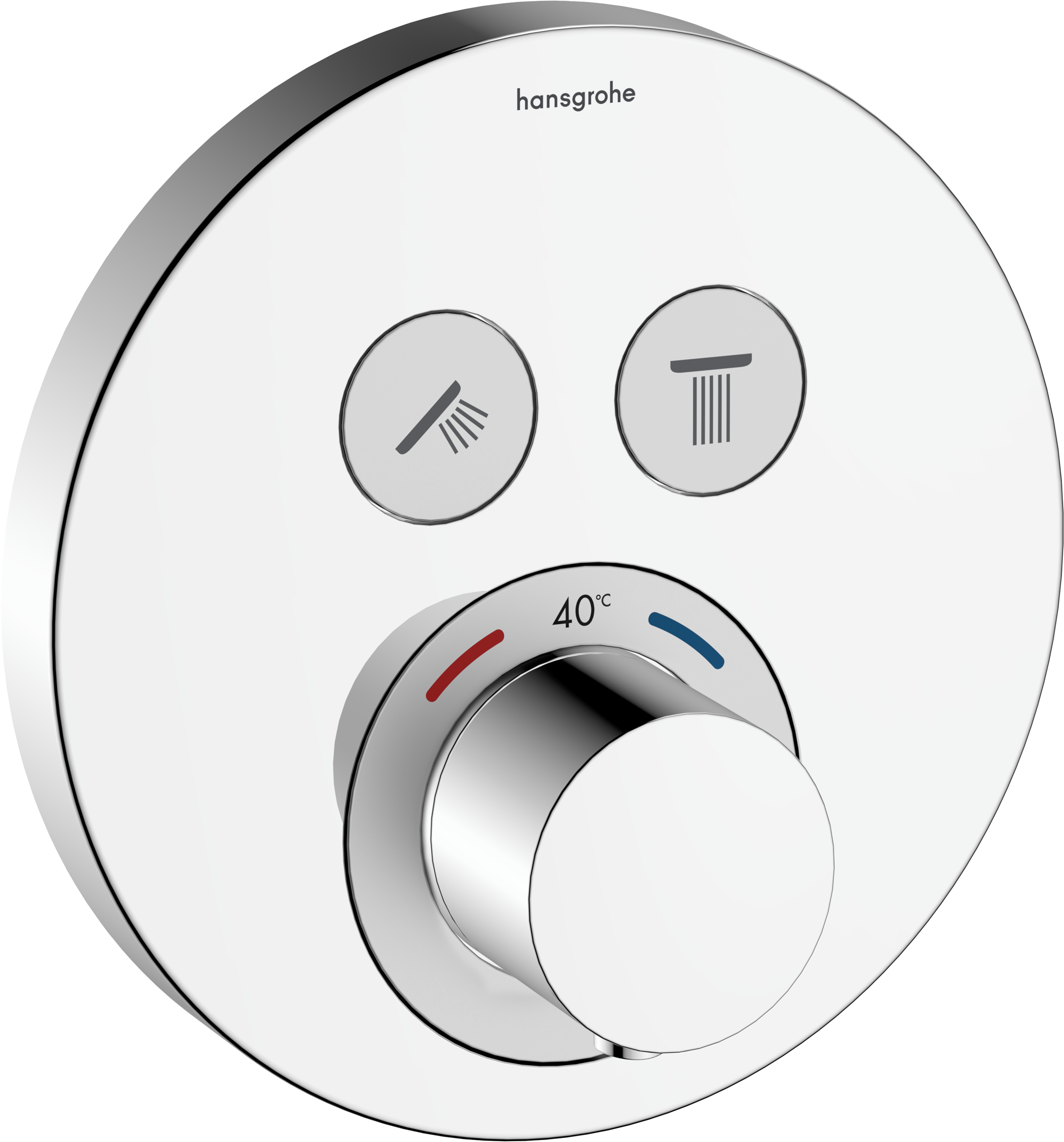

Thermostat Select for concealed installation for 2 functions

Thermostat Select for concealed installation for 2 functions
 View in AR
 360° view

Model no. 14745000

Article features

  • 2 functions
  • simultaneous use of several outlets
  • Select push-button on/off control for 2 outlets
  • thermostat cartridge, Start/stop valve to operate the functions
  • maximum flow rate at 3 bar: 29,7 l/min
  • flow rate upper outlet: 25 l/min
  • flow rate lower outlet: 23 l/min
  • flow rate by simultaneous use of all outlets: 29,7 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • connection type: basic set
  • thermostat is delivered with buttons hand shower and Rain large

Downloads

Installation information

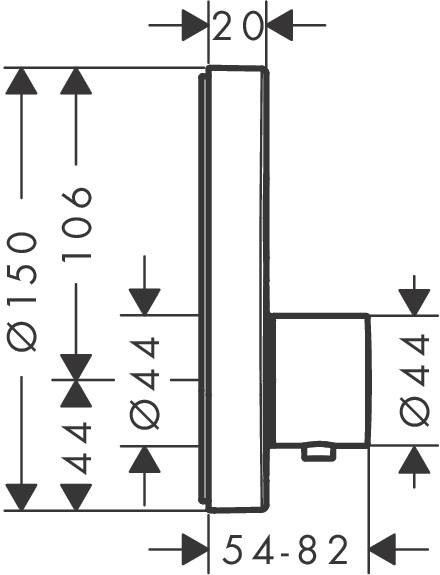

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Intuitive jet adjustment

A playful way to control the water flow, shower or spray type at the simple touch of a button.

Select

Intuitive jet adjustment

A playful way to control the water flow, shower or spray type at the simple touch of a button.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
