hansgrohe Rebris S

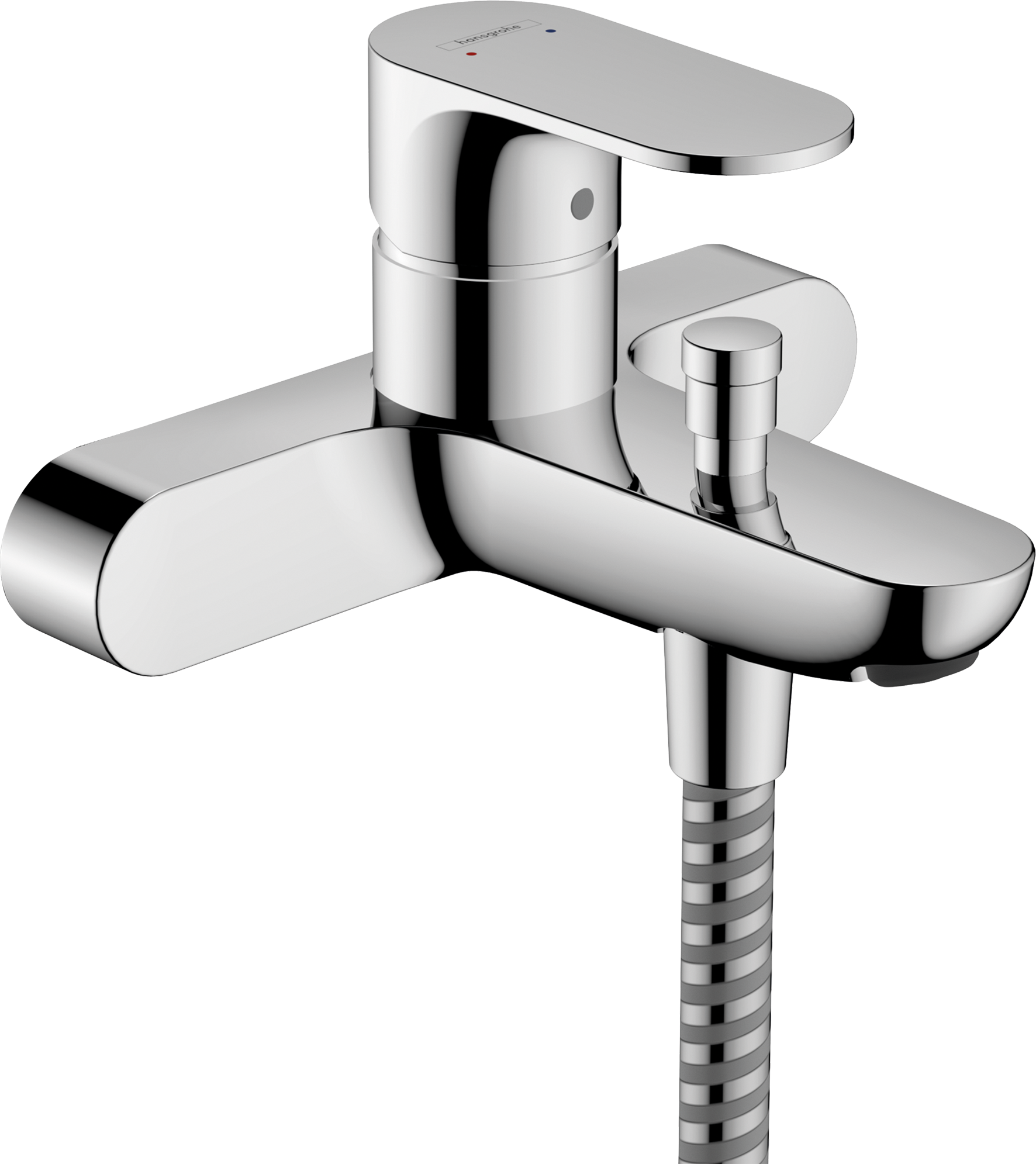

Single lever bath mixer for exposed installation with centre distance 15.3 cm

Single lever bath mixer for exposed installation with centre distance 15.3 cm
 View in AR
 360° view
Finish Chrome

Model no. 72442000

Article features

  • 2 functions
  • projection: 144 mm
  • centre distance: 153 mm
  • spray type mixer: NormalSpray
  • maximum flow rate at 3 bar: 21 l/min
  • flow rate for bath spout at 3 bar: 21 l/min
  • maximum flow rate of hand shower at 3 bar: 12,3 l/min
  • ceramic cartridge
  • diverter with automatic resetting
  • protected against backflow, according to DIN EN 1717
  • with silencer
  • suitable for continous flow water heaters
  • connection dimension: DN20
  • wall-mounted
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Innovative technologies

More pleasure, more efficiency

Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.

AirPower

More pleasure, more efficiency

Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.

Awards

iF product design award 2022

iF product design award 2022

 Everything from cars to toothbrushes: products that receive this award rank among the best-designed products in the world. Globally recognised seal of quality, awarded by the International Forum Design since 1953.
Plus X Award für Innovation, High Quality, Design, Bedienkomfort und Ökologie 2022

Plus X Award für Innovation, High Quality, Design, Bedienkomfort und Ökologie 2022

 With an expert jury comprising representatives from 25 sectors, it is one of the world's top innovation awards. A network of 23 partners presents the award for design, ease of use or ecology.
Red Dot product design award 2022

Red Dot product design award 2022

 One of the most prestigious awards in the world. Awarded for top quality, innovative form and function since 1955 (North Rhine-Westphalia Design Centre).
German Design Award Winner 2023

German Design Award Winner 2023

 A quality seal awarded by the German Design Council since 2011, for design products featuring trendsetting quality.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
