hansgrohe RainDrain Spot Plus

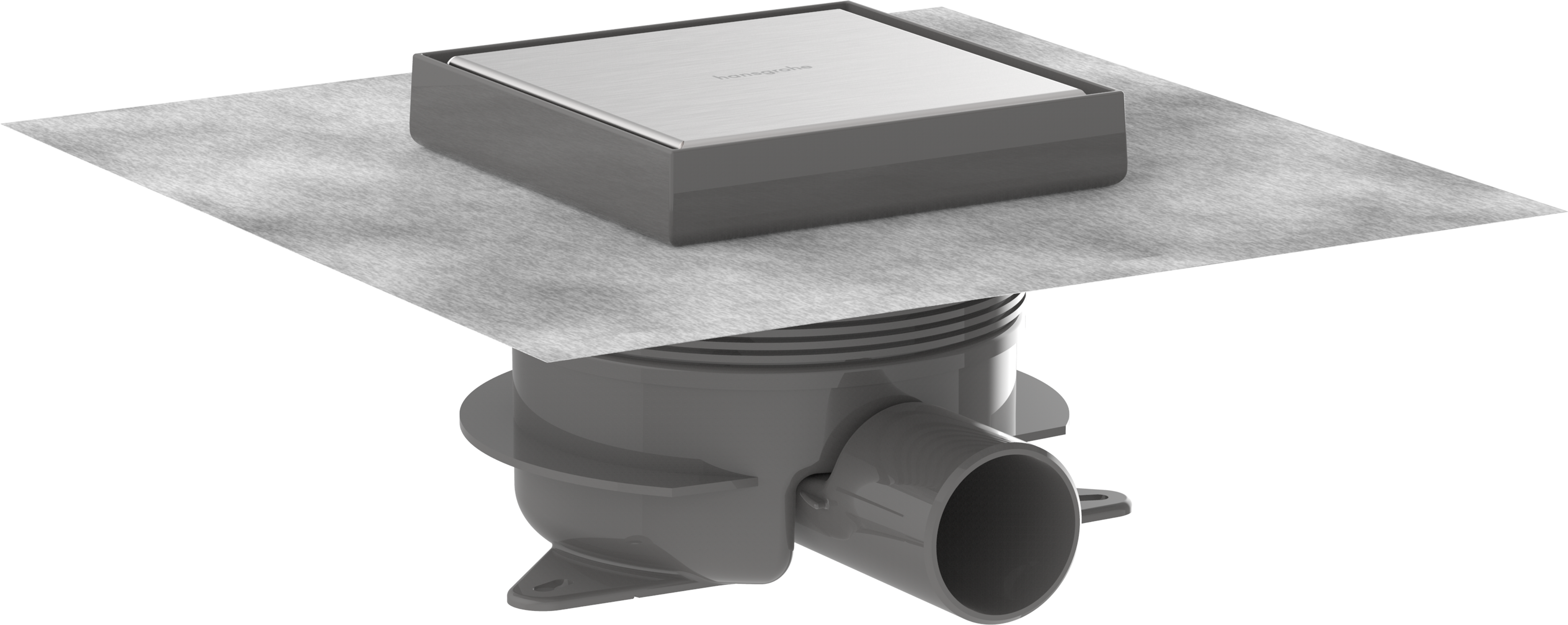

Complete set point drain 150/150 with height adjustable frame and tileable rear cover

Complete set point drain 150/150 with height adjustable frame and tileable rear cover
 View in AR
 360° view
Finish Brushed Stainless Steel

Model no. 56226800

Article features

  • consists of: design grate, basic set, trap, pre-assembled sealing membrane, screed protection cover
  • grate material: Stainless Steel 304 (1.4301)
  • water seal height: 50 mm
  • connection diameter: DN40
  • direction of outlet: pre-assembled horizontally, can be used vertically
  • easy to clean surface
  • height adjustable by 10 mm
  • up to 35 l/min drainage capacity
  • where to use: new construction, renovation
  • removable siphon
  • rotatable and adjustable siphon body
  • easy to clean siphon
  • type of odour seal: fluid
  • minimal construction height 95 mm
  • material siphon: ABS
  • mounting type: free in the floor
  • tileable on the back side
  • tile inlay depth: 12 mm

Downloads

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

For a flush integration into the floor

The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.

QuickClean

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

Adjustable frame height

For a flush integration into the floor

The shower drain is installed flush with the tiles. The level of the grate can be adjusted to different heights by using the height adjustment frame (Tile thickness 7-18 mm) even after the screed has been poured.

Easy clean siphon

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
