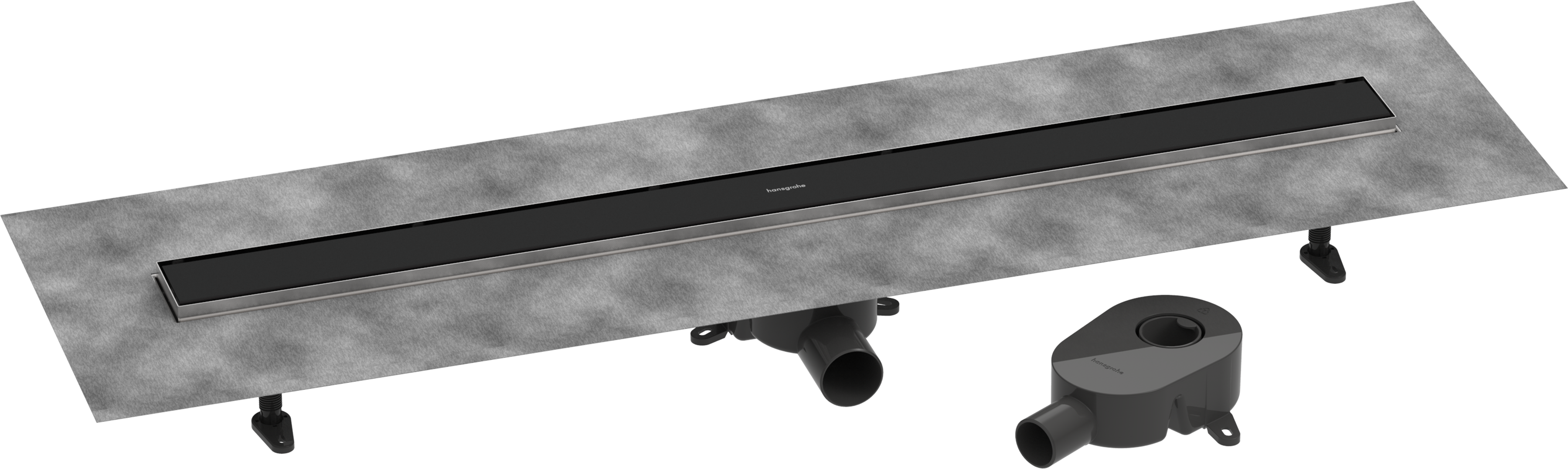

hansgrohe RainDrain Go
Complete set shower drain 1000 tileable rear cover standard/flat installation

Complete set shower drain 1000 tileable rear cover standard/flat installation
 View in AR
 360° view
Change variant
hansgrohe RainDrain Go
Select variant
Complete set shower drain 1000 tileable rear cover standard/flat installation
Complete set shower drain 500 tileable rear cover for standard/flat installation
Complete set shower drain 600 tileable rear cover standard/flat installation
Complete set shower drain 700 tileable rear cover standard/flat installation
Complete set shower drain 800 tileable rear cover standard/flat installation
Complete set shower drain 900 tileable rear cover standard/flat installation
Complete set shower drain 1200 tileable rear cover standard/flat installation
Finish Matt Black

Model no. 56275670

Article features

  • consists of: finish set shower drain, Siphons, installation set, pre-assembled sealing membrane, grate removal tool, hair catcher
  • grate material: Stainless Steel 304 (1.4301)
  • material installation set: Stainless Steel 304 (1.4301)
  • water seal height: 30 mm, 50 mm
  • connection diameter: DN40, DN50
  • direction of outlet: horizontal
  • easy to clean surface
  • height adjustable by 15 mm
  • drainage capacity flat installation: up to 31 l/min
  • drainage capacity standard installation: up to 39 l/min
  • where to use: new construction, renovation
  • tile thickness: up to 11 mm
  • rotatable and adjustable siphon body
  • easy to clean siphon
  • grate removal tool allows easy removal of the finish set
  • quick adjustable fastening feet
  • material siphon: ABS
  • mounting type: free in the floor
  • tileable on the back side
  • tile inlay depth: 12 mm
  • choice of two different siphons, for standard or flat installation
  • suitable for primary and secondary drainage

Downloads

Installation information

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.
Easy to clean surface

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.
Easy to clean siphon

QuickClean

Easy to clean surface

At some point, dirt and hair will build up in every shower drain. This high-quality linear drain is easy to clean: simply take off the cover using the tool provided and remove any residue in no time at all.

Easy clean siphon

Easy to clean siphon

Modern odor trap with a high drainage capacity can be removed for cleaning, even after it has been securely installed in the flooring. Any remaining dirt or hair is easy to remove under running water.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
