Raindance

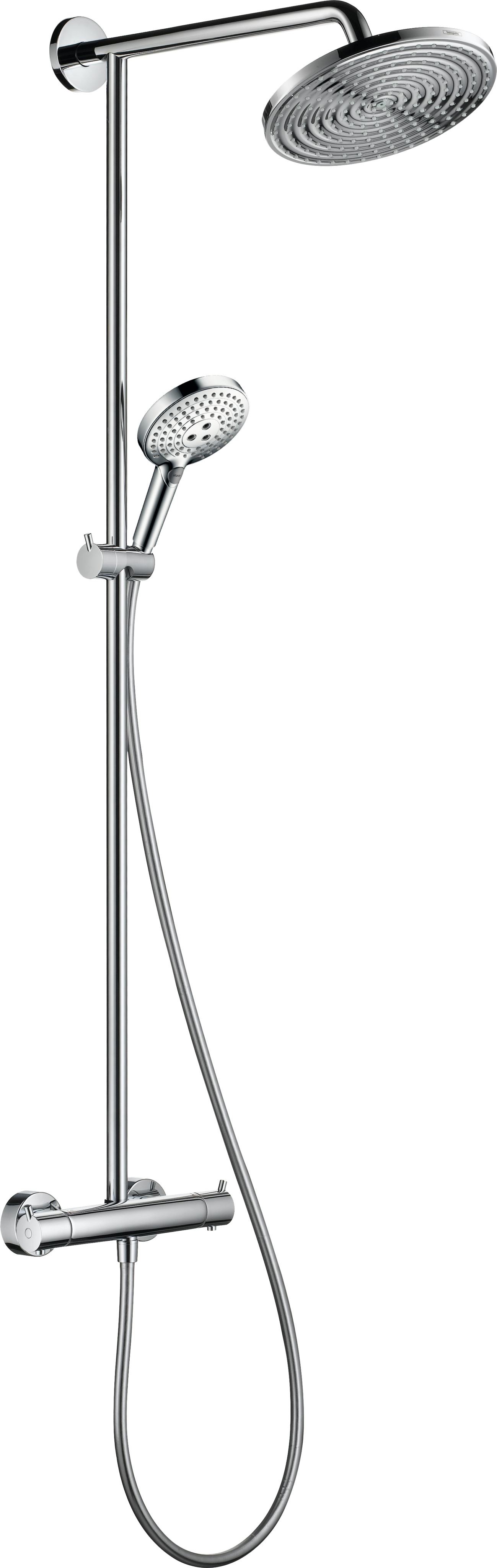

Showerpipe 240 1jet with thermostat

Showerpipe 240 1jet with thermostat
 View in AR
 360° view

Model no. 27216000

Find the right spare part
Remember product Product noted
Product saved for 30 daysSee Wish List
The product could not be saved. Please try again.

Installation information

Scale drawing

Installation example

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Article features

  • consists of: overhead shower, hand shower, shower thermostat, shower hose, slider
  • overhead shower Raindance S 240 Air
  • shower head size overhead shower: 240 mm
  • spray type overhead shower: RainAir

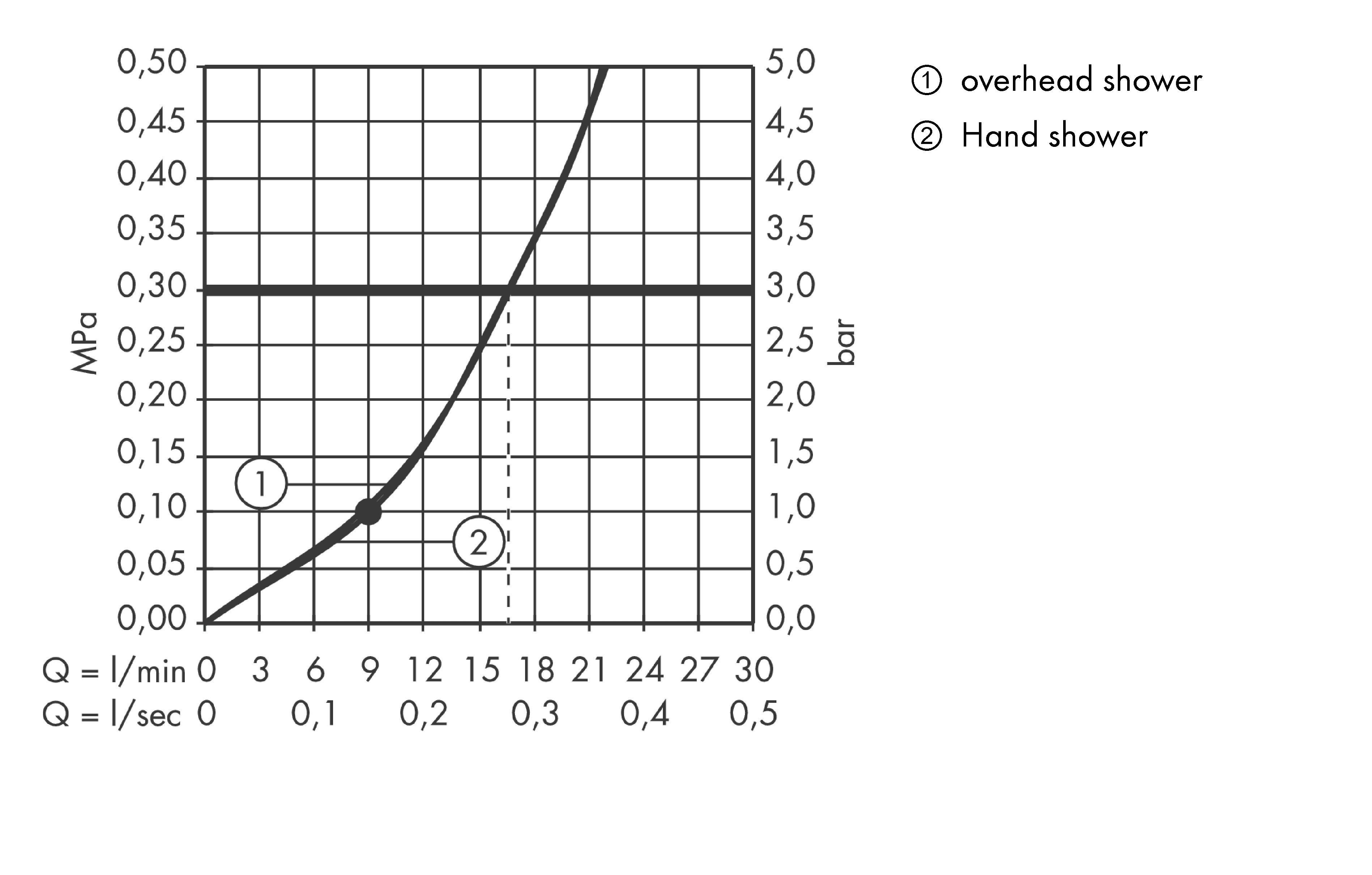

  • flow rate RainAir spray at 3 bar: 9,5 l/min
  • maximum flow rate for Showerpipe at 3 bar: 9,5 l/min
  • max. operating pressure: 10 bar
  • height-adjustable slider
  • shower arm length overhead shower: 460 mm
  • thermostat Ecostat 1001 SL
  • safety stop at 38°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
