hansgrohe Neovis Q
Single lever bath mixer for concealed installation with integrated security combination according to EN1717 for iBox universal

COMING SOON
Single lever bath mixer for concealed installation with integrated security combination according to EN1717 for iBox universal
 View in AR
 360° view
Change variant
hansgrohe Neovis Q
Select variant
Single lever bath mixer for concealed installation with integrated security combination according to EN1717 for iBox universal
Single lever bath mixer for concealed installation for iBox universal
Finish Chrome

Model no. 71483000

Article features

  • 2 functions
  • temperature and on/off control for 2 outlets
  • maximum flow rate at 3 bar: 25 l/min
  • ceramic cartridge
  • temperature limitation adjustable
  • diverter with automatic resetting
  • non-return valve
  • with silencer
  • suitable for continous flow water heaters
  • connection dimension: DN15
  • with integrated safety combination EN 1717
  • connection type: basic set
  • wall-mounted
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar

Downloads

Installation information

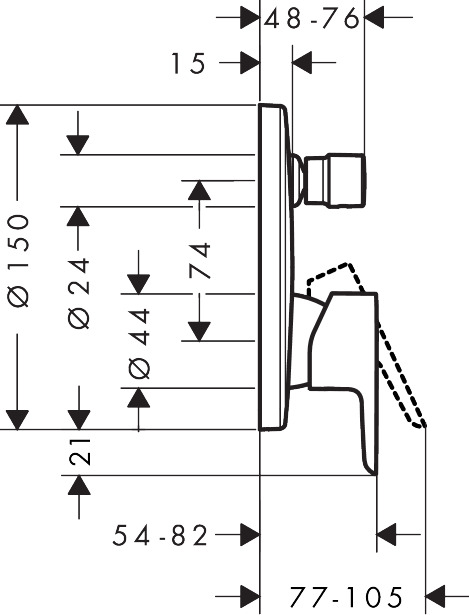

Scale drawing

Download all files

Required parts - Select variant

Basic set
hansgrohe iBox universal 2

Basic set
Adapter plate for iBox universal 2
hansgrohe

Adapter plate for iBox universal 2
Basic set
hansgrohe iBox universal

Basic set
