hansgrohe Neovis Q

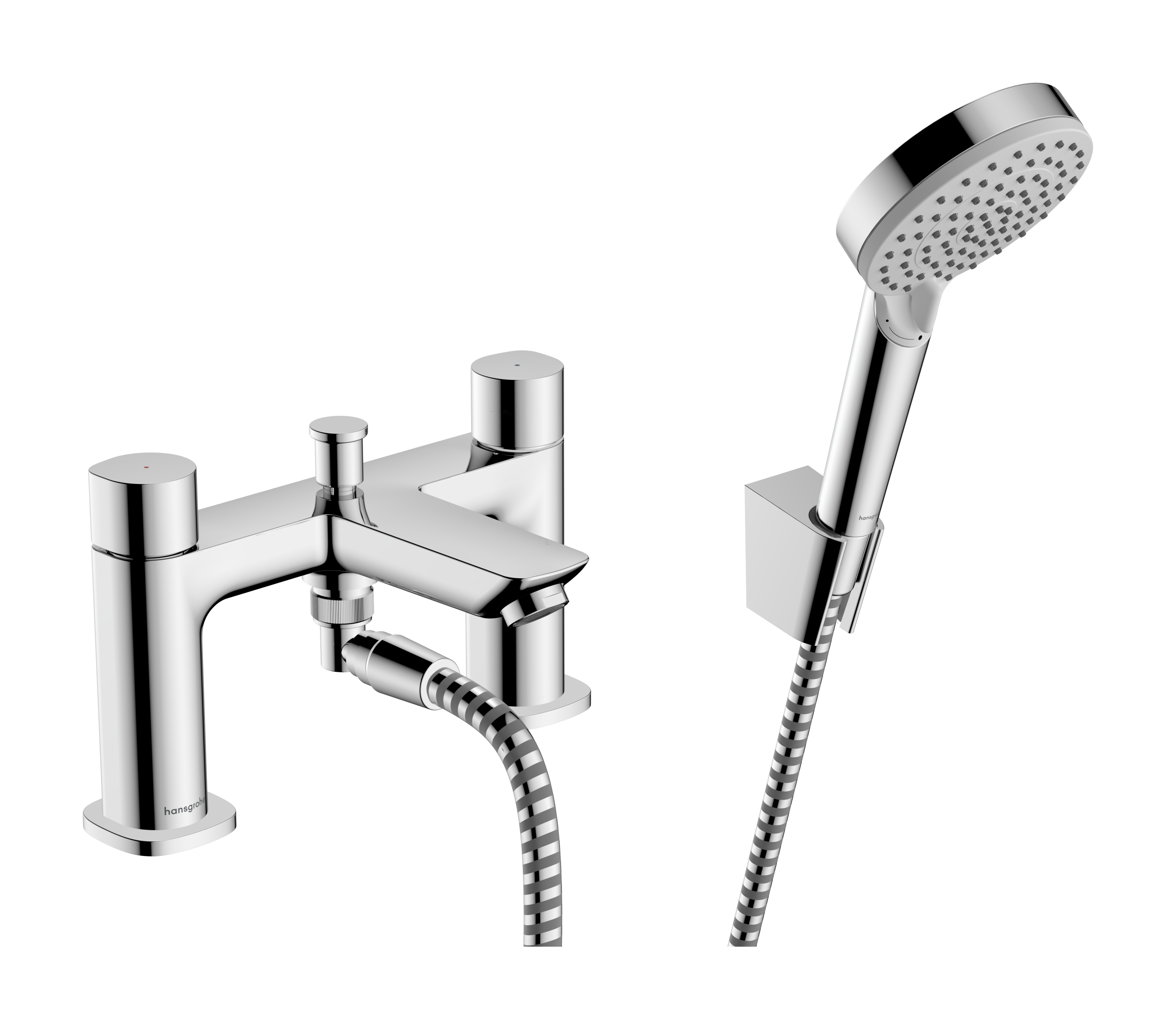

2-hole rim mounted bath mixer with diverter valve and hand shower

COMING SOON
2-hole rim mounted bath mixer with diverter valve and hand shower
product.closeup.image.alt
1 / 2
 View in AR
 360° view
Finish Chrome

Model no. 71487000

Article features

  • consists of: 2-hole rim mounted bath mixer, hand shower, shower holder, shower hose
  • 2 functions
  • projection: 111 mm
  • centre distance: 180 mm
  • maximum flow rate at 3 bar: 50 l/min
  • flow rate for bath spout at 3 bar: 50 l/min
  • ceramic valves hot/cold 90°
  • operating pressure from 0.2 bar
  • diverter with automatic resetting
  • non-return valve
  • connection dimension: DN20
  • connection type: G ¾
  • installation on bath rim
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar

Downloads

Installation information

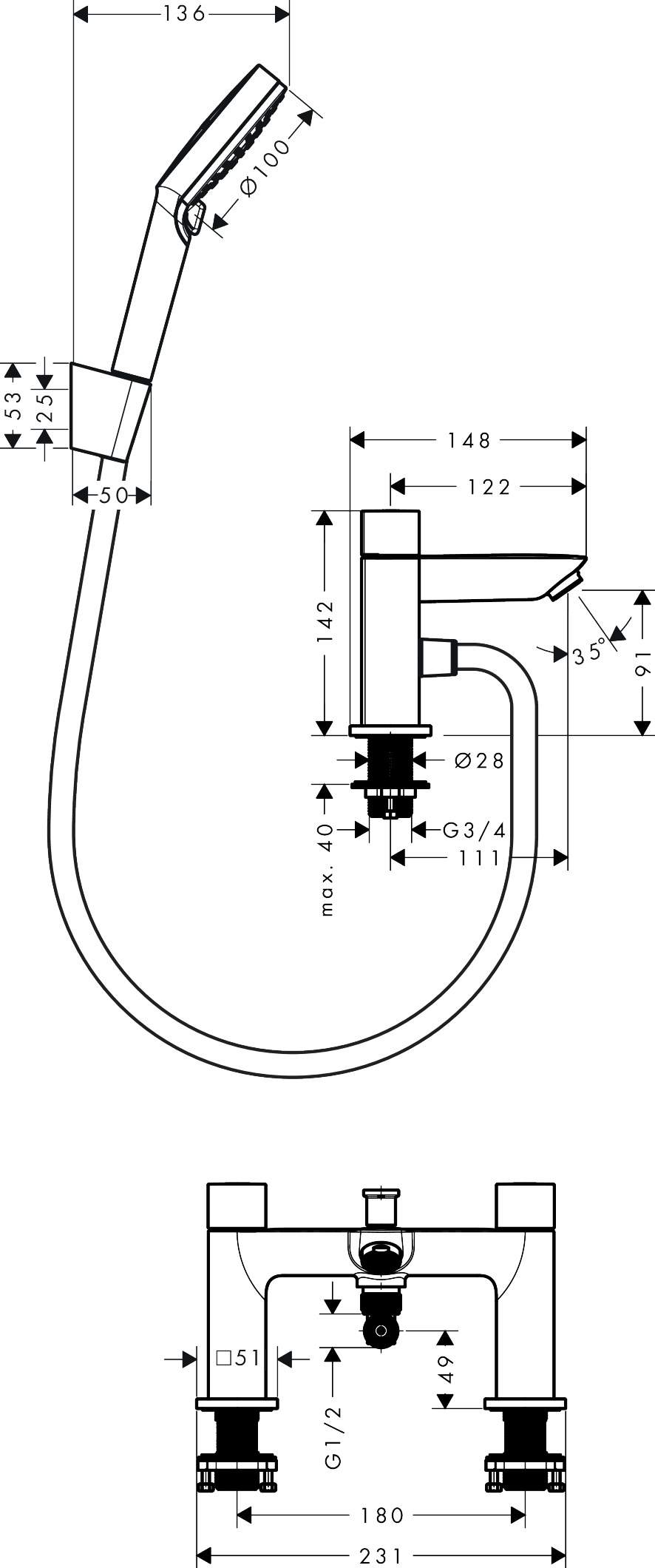

Scale drawing

Download all files

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
