LivaFine

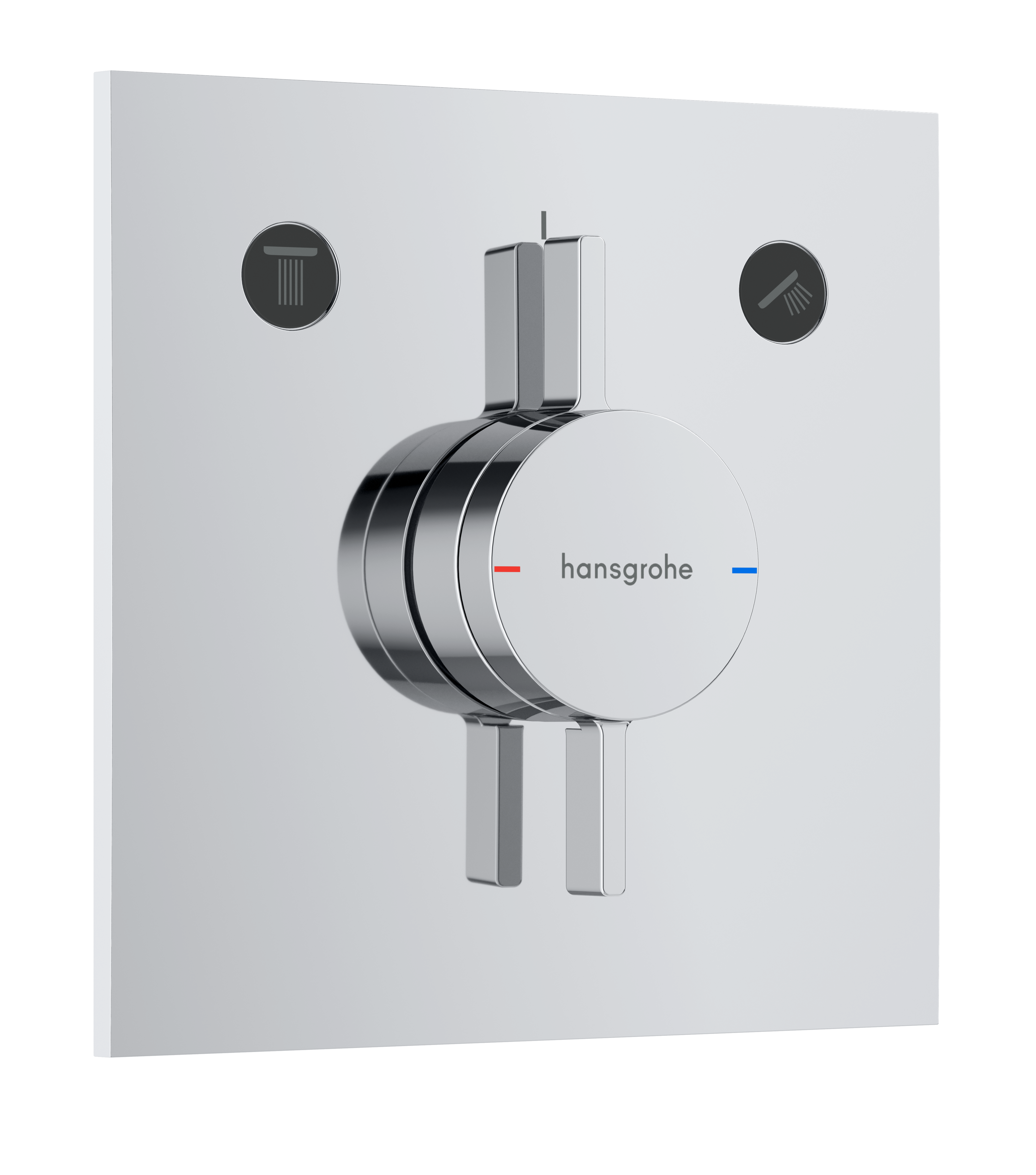

Mixer for concealed installation for 2 functions

NEW
Mixer for concealed installation for 2 functions
 View in AR
 360° view

Model no. 15627000

Find the right spare part
Remember product Product noted
Product saved for 30 daysSee Wish List
The product could not be saved. Please try again.

Installation information

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Article features

  • 2 functions
  • volume control and diverter for 2 functions
  • maximum flow rate at 3 bar: 29,5 l/min
  • maximum flow rate at 1 bar: 15 l/min
  • flow rate upper outlet: 29,5 l/min
  • ceramic cartridge for temperature control, shut-off/ diverter valve
  • easy installation due to pre-assembled function block
  • handles always at the same height regardless of the installation depth of the basic set
  • escutcheon can be aligned by +/- 3°
  • material escutcheon: plastic
  • material handles: metal
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • mixer is delivered with buttons Rain small, Rain large, hand shower, Waterfall, bath tub
  • connection type: basic set iBox universal 2 (# 01500180)
  • flow rate lower outlet: 29,5 l/min
