hansgrohe iFrame universal
Concealed cistern 1120 for wall hung WC, SASO

NEW
Concealed cistern 1120 for wall hung WC
 View in AR
 360° view

Model no. 01023180

Article features

  • material: steel
  • material cistern: plastic
  • material drainage pipe: Polypropylene (PP)
  • quality class cistern: Polyethylene (PE)
  • pipe outer diameter flushing pipe: 45 mm
  • center distance WC fastening: 180 mm, 230 mm
  • drainage pipe depth adjustable: 75 - 115 mm
  • suitable for flush flow throttling
  • position tap water connection: back, side
  • wall type: drywall construction
  • pipe outer diameter drainage: 90 mm
  • dimension connection tap water: G ½
  • water connection: external thread
  • suitable for shower toilet
  • drain pipe with adapter DN 90/110 made of PP, frame for wall hung Wcs with projection up to 70 cm
  • flush volume factory setting: 4.8 l, 3 l
  • full flush volume: 4.8 l
  • half flush volume: 3 l
  • wall mounting: with wall mounting
  • condensation protection

Downloads

Installation information

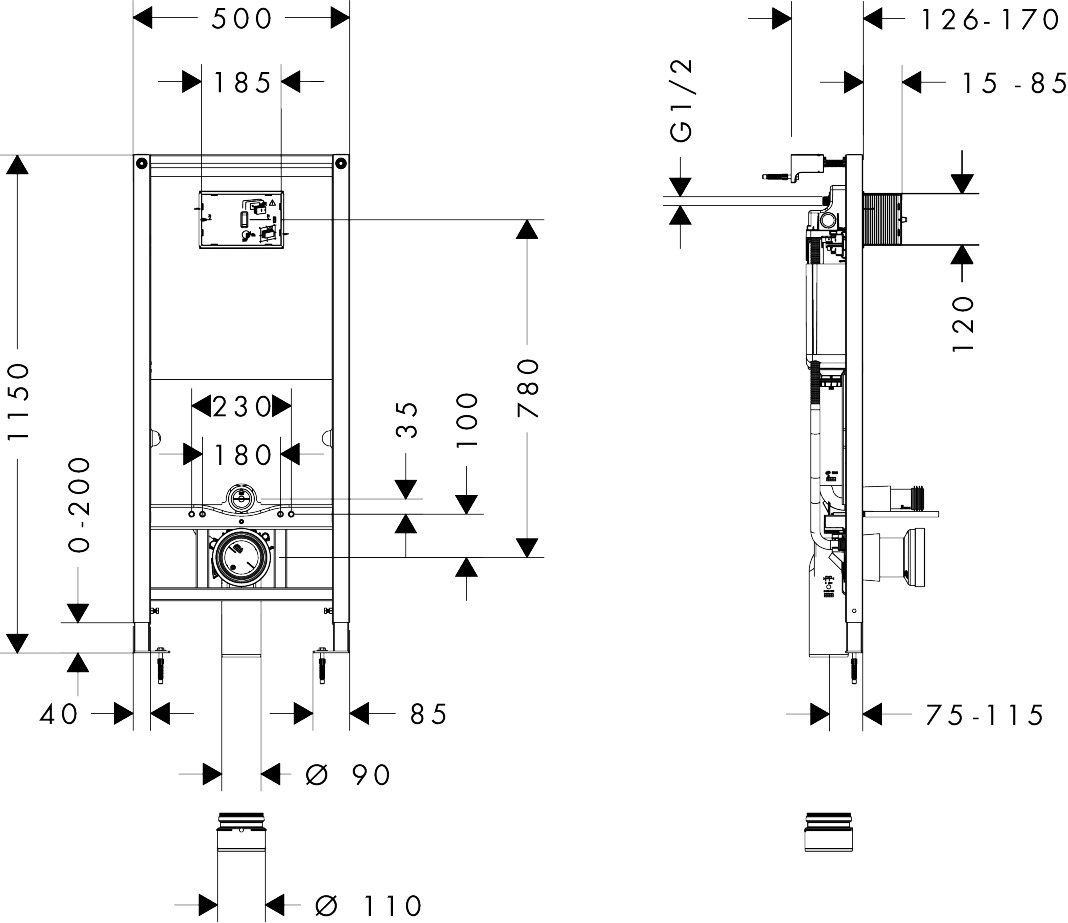

Scale drawing

Download all Scale drawing files

Installation example

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
