hansgrohe iFrame universal
Concealed cistern 1120 for wall hung WC, freestanding

NEW

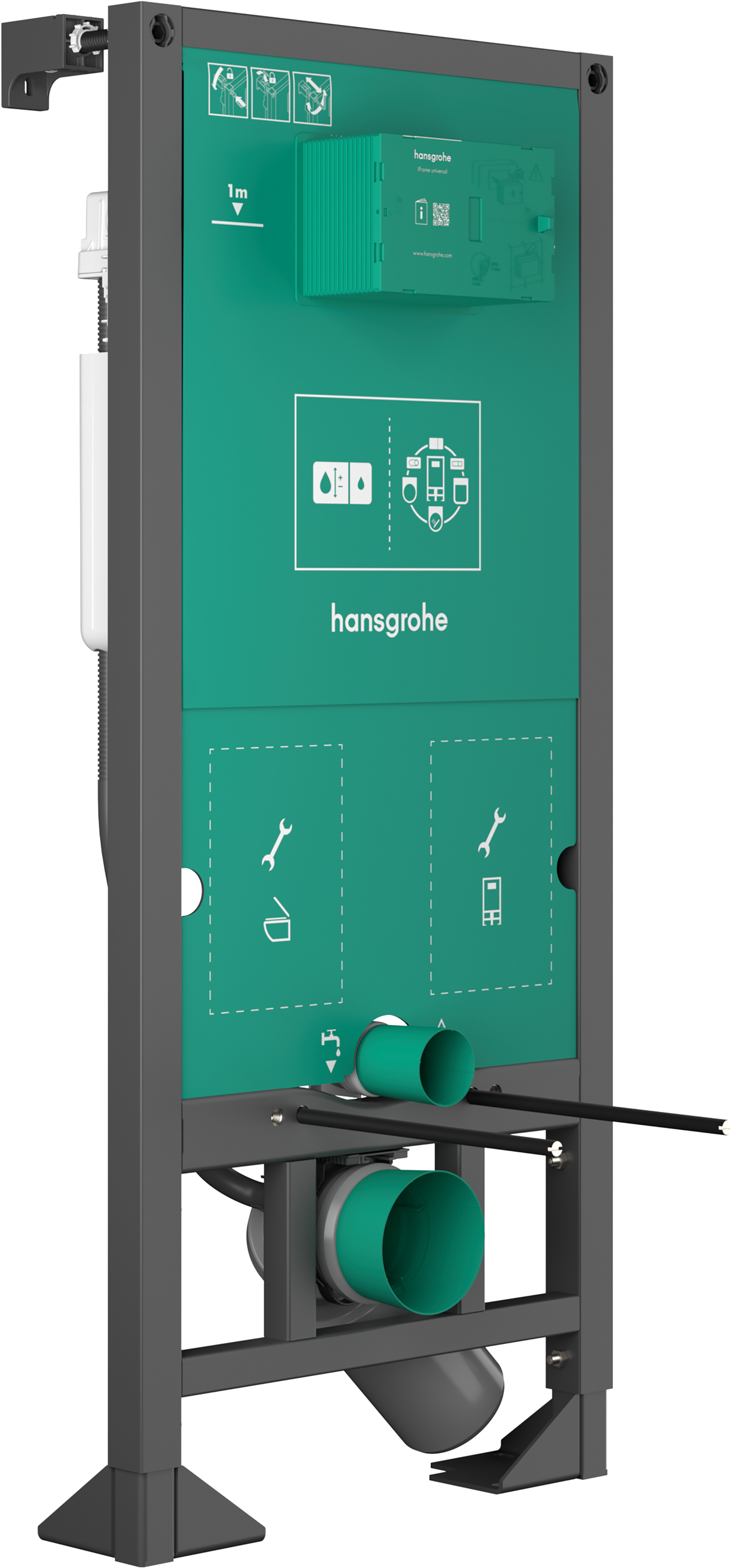

Concealed cistern 1120 for wall hung WC
 View in AR
 360° view

Model no. 01024180

Article features

  • material: steel
  • material cistern: plastic
  • material drainage pipe: PVC
  • quality class cistern: Polyethylene (PE)
  • pipe outer diameter flushing pipe: 45 mm
  • center distance WC fastening: 180 mm, 230 mm
  • suitable for flush flow throttling
  • position tap water connection: back, side
  • wall type: drywall construction
  • pipe outer diameter drainage: 100 mm
  • dimension connection tap water: R ½
  • water connection: external thread
  • suitable for shower toilet
  • freestanding construction
  • rotatable PVC pipe, frame for wall hung Wcs with projection up to 70 cm
  • flush volume factory setting: 6 l, 3 l
  • full flush volume: 6 l - 4.5 l
  • half flush volume: 3 l
  • wall mounting: with wall mounting
  • condensation protection

Downloads

Installation information

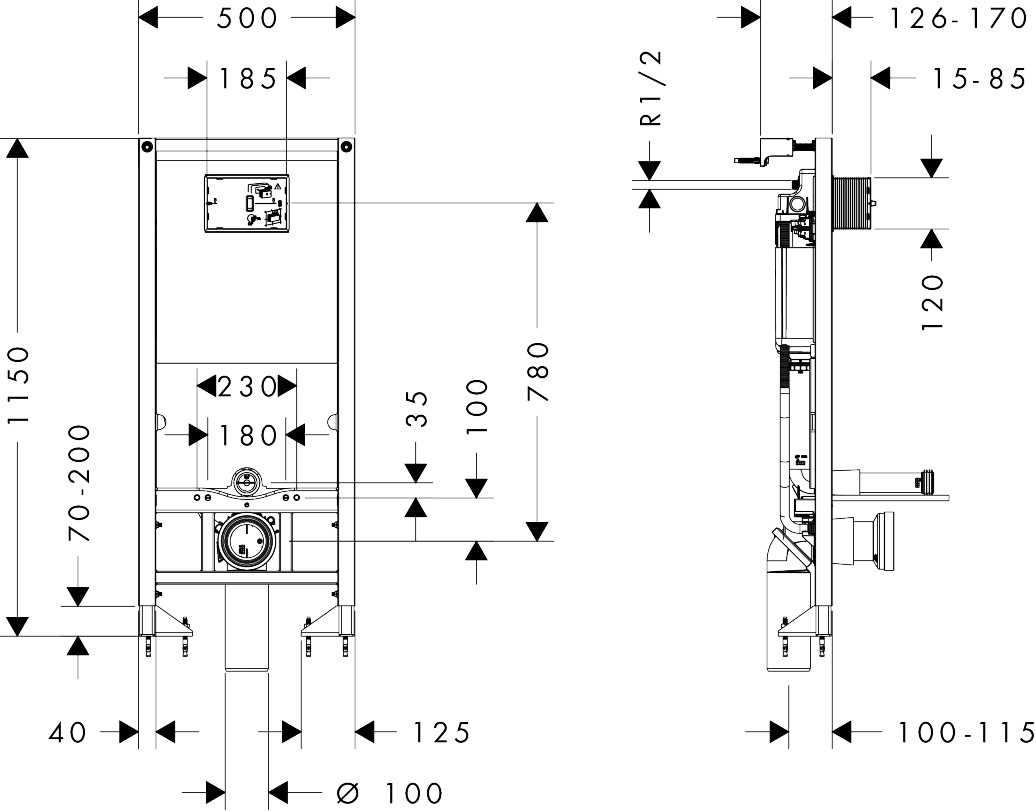

Scale drawing

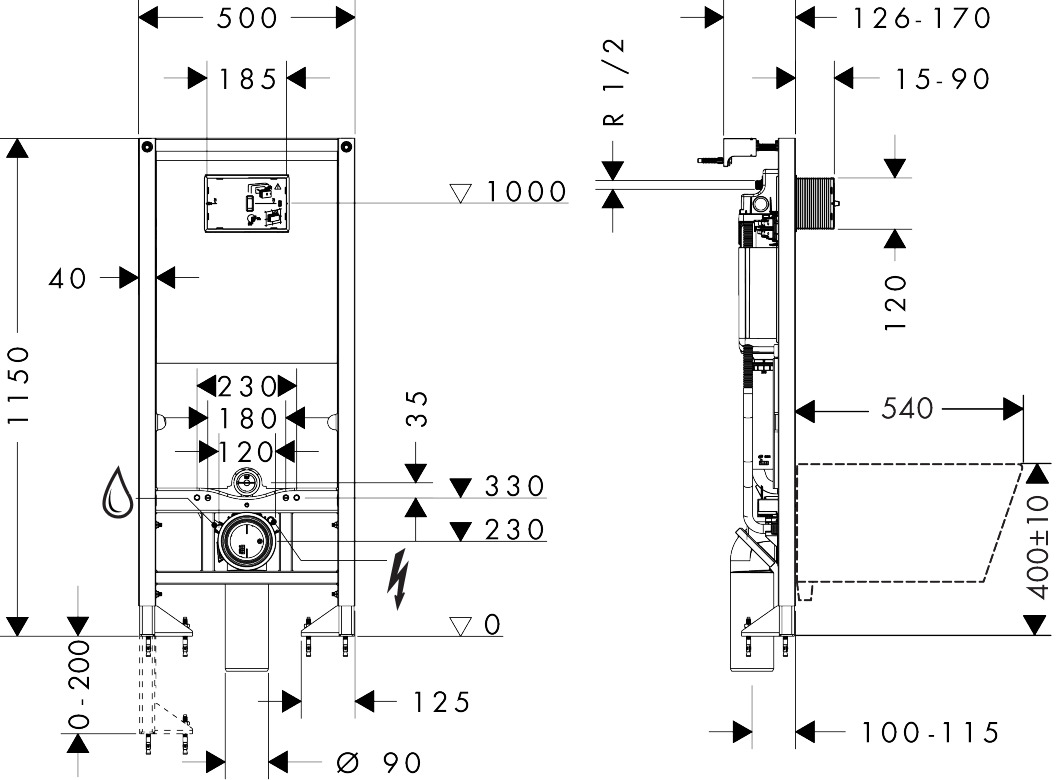

Installation example

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
