hansgrohe Flexaplus
Complete set waste and overflow set for bathtub

 View in AR
 360° view
Change variant
hansgrohe Flexaplus
Select variant

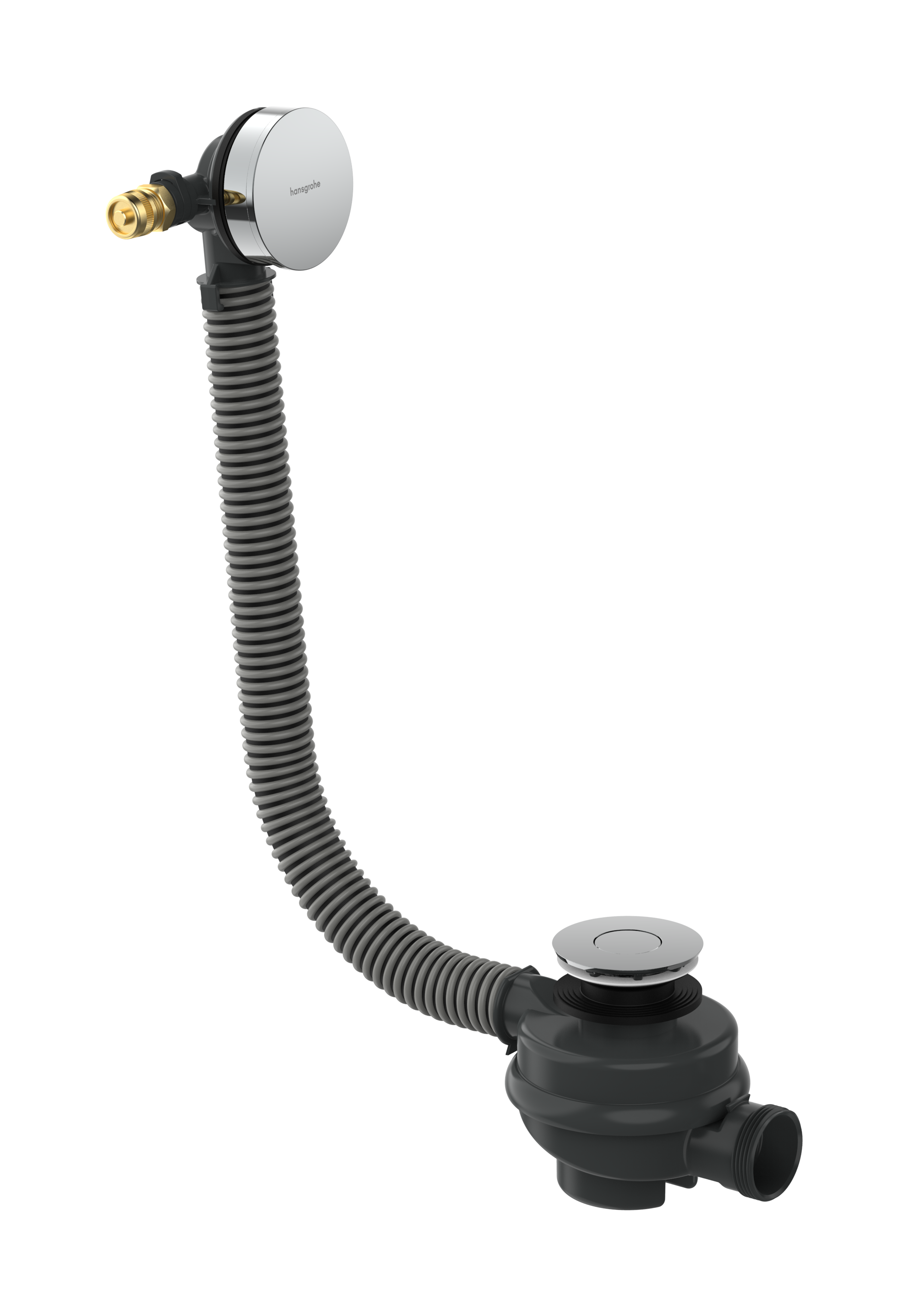

Complete set waste and overflow set for bathtub
Complete set waste and overflow set for bathtub
Finish Chrome

Model no. 58157000

Article features

  • consists of: basic set, finish set
  • suitable for bathtubs made of cast iron, steel and plastic, to fit to both standard and extra-large tubs, bathtubs with waste outlet diameter 52 mm
  • easy waste and overflow installation with included tool
  • rotatable connection bent, diameter: 40/50 mm
  • double-sided seals on outlet and overflow
  • flat version: only 46 mm is needed behind bathtub
  • shortenable and flexible overflow hose
  • rotatable siphon housing
  • easy cleaning with access for plumber's snake
  • connection siphon drain plug: clamp connection
  • pipe outer diameter drain pipe: 50 mm
  • drainage capacity accumulation height 300 mm: 64 l/min
  • water seal height: 50 mm
  • material waste set: Polypropylene (PP), ABS

Downloads

Technical drawings

Download all Technical drawings files
Download all files

Installation information

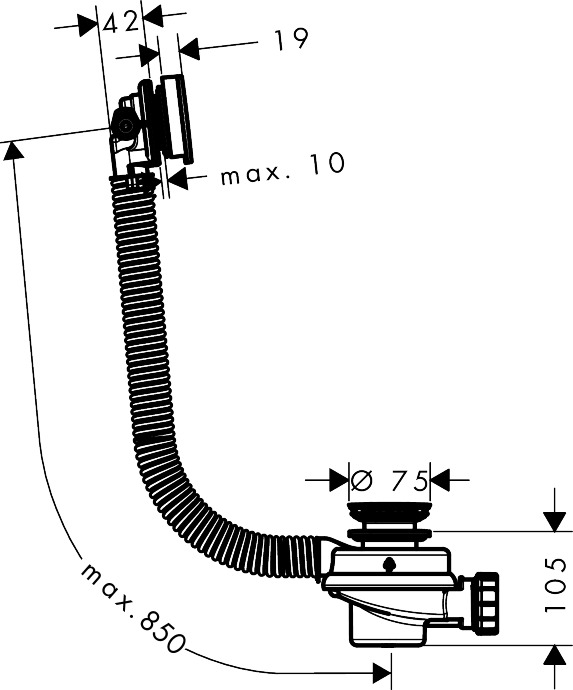

Scale drawing

Download all files

Innovative technologies

Diverting made easy

The Select button replaces the diverter on the bath tub. At the touch of a button, water comes out of the bath filler or shower head. In the idle position, the system returns to the bath filler so that no-one gets accidentally sprayed with water.

Select

Diverting made easy

The Select button replaces the diverter on the bath tub. At the touch of a button, water comes out of the bath filler or shower head. In the idle position, the system returns to the bath filler so that no-one gets accidentally sprayed with water.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
