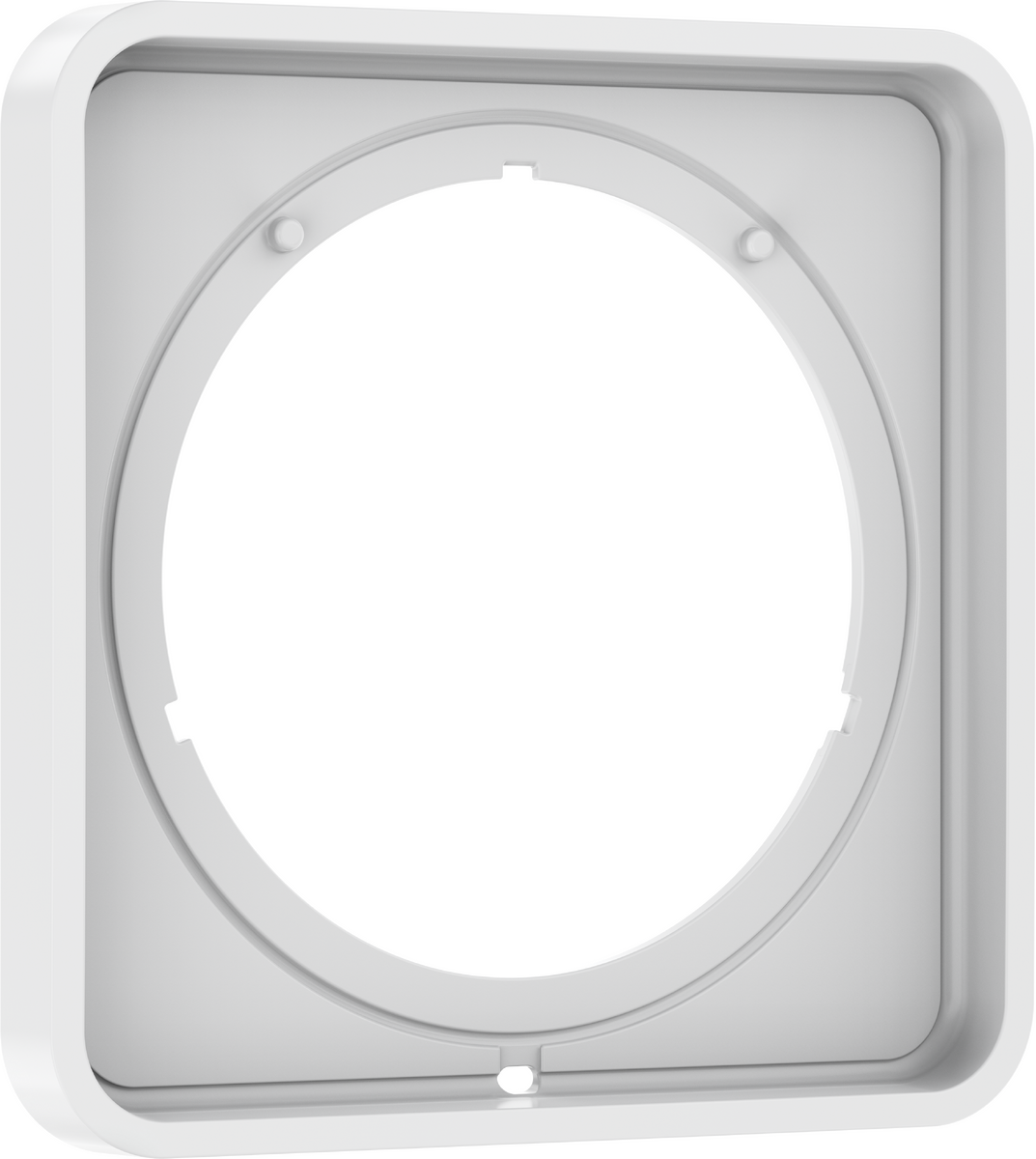

Extension element Q 5 mm

Extension element Q 5 mm
 View in AR
 360° view
Finish Matt White

Model no. 13613700

Article features

  • for installation between tiles and finish set
  • is required if the basic set is installed too flat
  • for larger tile coverage
  • suitable for ShowerSelect Comfort and DuoTurn (for DuoTurn please order the adapter from the optional parts)
  • dimension: 170 x 170 mm
  • extension length: 5 mm

Downloads

Technical drawings

Download all Technical drawings files

Instructions

Download all files

Installation information

Scale drawing

Download all files

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.

Find all compatible products for your spare part

Product range
Product name
Art. no.
Finish
Finish & Art. no.
Construction year
hansgrohe ShowerSelect Comfort Q Valve for concealed installation for 3 functions
Valve for concealed installation for 3 functions 15587700
15587700
Matt White
> 09/23
hansgrohe ShowerSelect Comfort Q Thermostat for concealed installation for 1 function
Thermostat for concealed installation for 1 function 15581700
15581700
Matt White
> 09/23
hansgrohe ShowerSelect Comfort Q Thermostat for concealed installation for 2 functions
Thermostat for concealed installation for 2 functions 15583700
15583700
Matt White
> 09/23
hansgrohe ShowerSelect Comfort Q Thermostat for concealed installation for 2 functions with integrated security combination according to EN1717
Thermostat for concealed installation for 2 functions with integrated security combination according to EN1717 15586700
15586700
Matt White
> 09/23
hansgrohe DuoTurn Q Mixer for concealed installation for 1 function
Mixer for concealed installation for 1 function 75614700
75614700
Matt White
> 09/23
hansgrohe ShowerSelect Comfort Q Thermostat for concealed installation
Thermostat for concealed installation 15588700
15588700
Matt White
> 09/23
hansgrohe ShowerSelect Comfort Q Thermostat for concealed installation for 1 function and additional outlet
Thermostat for concealed installation for 1 function and additional outlet 15589700
15589700
Matt White
> 09/23
hansgrohe ShowerSelect Comfort Q Thermostat for concealed installation for 1 function
Thermostat for concealed installation for 1 function 15581707
15581707
Matt White
> 09/23
hansgrohe ShowerSelect Comfort Q Thermostat for concealed installation
Thermostat for concealed installation 15588707
15588707
Matt White
> 09/23
hansgrohe ShowerSelect Comfort Q Thermostat for concealed installation for 1 function and additional outlet
Thermostat for concealed installation for 1 function and additional outlet 15589707
15589707
Matt White
> 09/23
hansgrohe ShowerSelect Comfort Q Thermostat for concealed installation for 2 functions
Thermostat for concealed installation for 2 functions 15583707
15583707
Matt White
> 09/23
hansgrohe Ecostat Comfort Q Thermostat for concealed installation for 2 functions
Thermostat for concealed installation for 2 functions 33713700
33713700
Matt White
> 04/25
hansgrohe Ecostat Comfort Q Thermostat for concealed installation for 2 functions with integrated security combination according to EN1717
Thermostat for concealed installation for 2 functions with integrated security combination according to EN1717 33717700
33717700
Matt White
> 04/25
hansgrohe Ecostat Comfort Q Thermostat for concealed installation for 2 functions
Thermostat for concealed installation for 2 functions 33713707
33713707
Matt White
> 04/25
