hansgrohe Exafill
Select variant

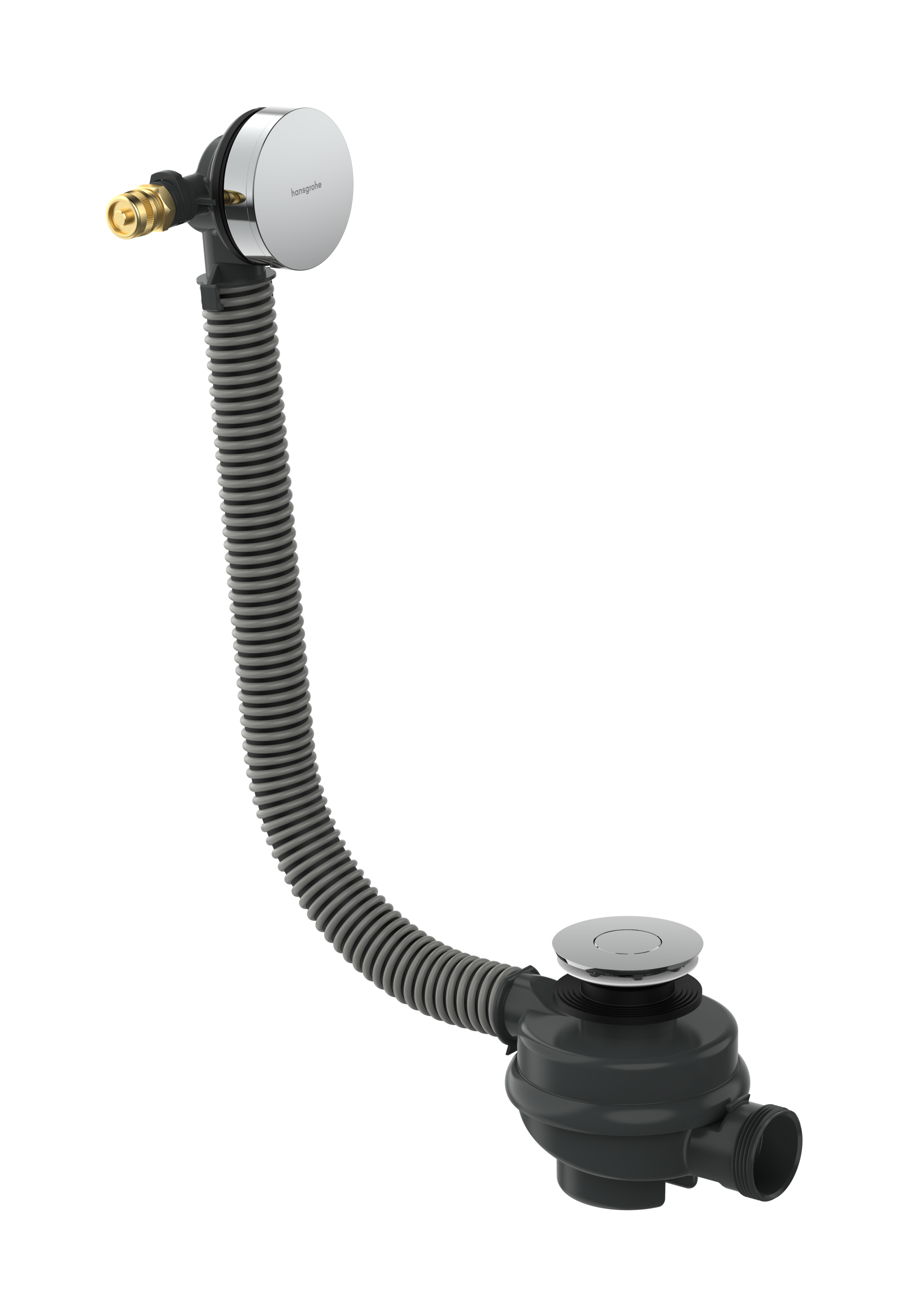

Complete set basic set and finish set waste and overflow set for bathtubs
Complete set bath filler, waste and overflow set for bathtub
Finish Chrome

Model no. 58132000

Article features

  • consists of: finish set overflow with bath filler, basic set, waste set, odour trap
  • suitable for bathtubs made of cast iron, steel and plastic, to fit to both standard and extra-large tubs, bathtubs with waste outlet diameter 52 mm
  • water supply via the overflow
  • swivel water inlet
  • easy cleaning with access for plumber's snake
  • connection inlet mixed water: external thread
  • rotatable siphon housing
  • clamp connection
  • connection dimension entry: G ½
  • rotatable connection bent, diameter: 40/50 mm
  • double-sided seals on outlet and overflow
  • flat version: only 46 mm is needed behind bathtub
  • easy waste and overflow installation with included tool
  • shortenable and flexible overflow hose
  • pipe outer diameter drain pipe: 50 mm
  • water seal height: 50 mm
  • drainage capacity accumulation height 300 mm: 64 l/min
  • overflow capacity accumulation height 60 mm above centre of overflow hole: 36 l/min
  • material waste set: Polypropylene (PP), ABS
  • material overflow and filler: ABS, Polypropylene (PP)

Downloads

Installation information

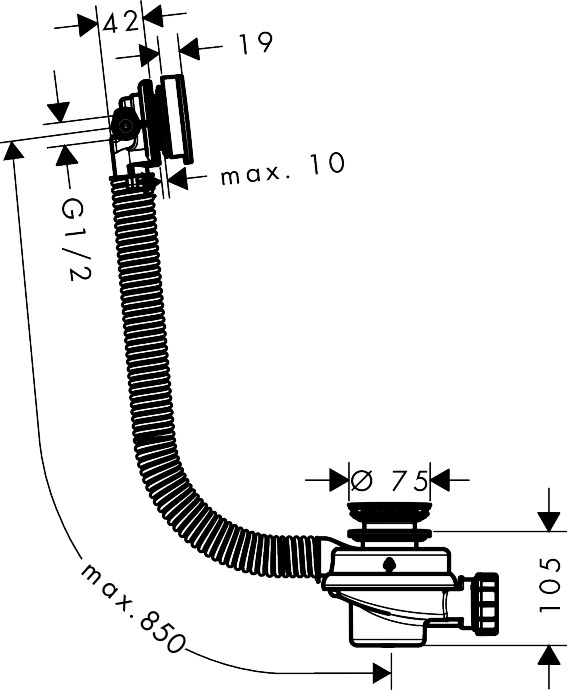

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
