hansgrohe Ecostat Element

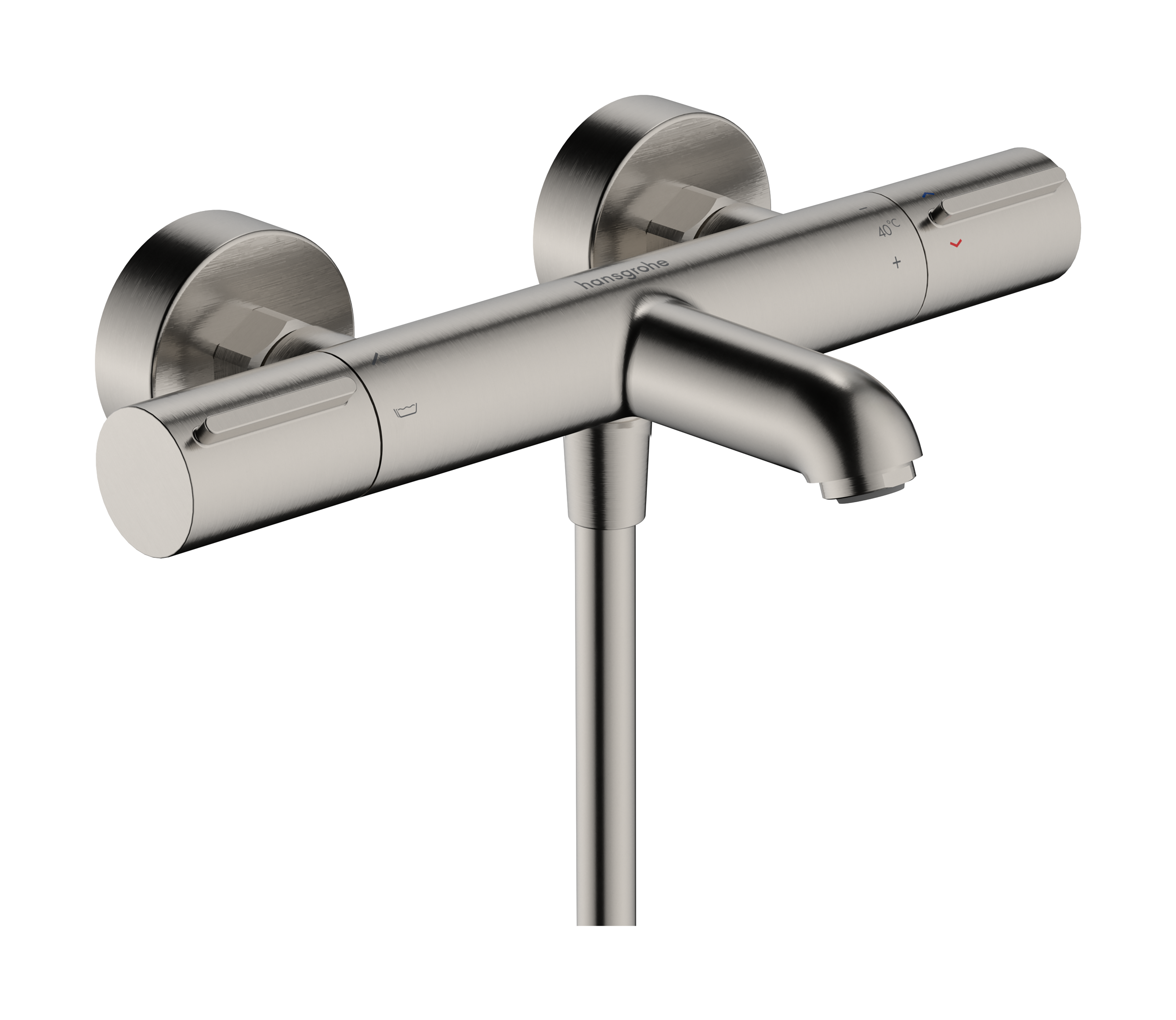

Bath thermostat for exposed installation

COMING IN 2027
Bath thermostat for exposed installation
 View in AR
 360° view
Finish Stainless Steel Optic

Model no. 13347800

Article features

  • projection 177 mm
  • 2 functions
  • temperature and water flow control
  • thermostat cartridge, shut-off/ diverter valve
  • spray type spout: NormalSpray
  • maximum flow rate at 3 bar: 20 l/min
  • flow rate for bath spout at 3 bar: 20 l/min
  • maximum flow rate of hand shower at 3 bar: 16 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • non-return valve
  • protected against backflow, according to DIN EN 1717
  • with silencer
  • material handles: metal
  • connection dimension: DN15
  • connection type: G ½
  • centre distance: 150 ± 12 mm
  • dirt filter included

Downloads

Installation information

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Innovative technologies

Less limescale, more joy

Limescale deposits and dirt can be simply rubbed off using a finger, creating less of a need to clean.

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.
Always constant water temperature

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.
For mindful use of water

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
Safety lock at over 40 °C

QuickClean

Less limescale, more joy

Limescale deposits and dirt can be simply rubbed off using a finger, creating less of a need to clean.

Thermostat

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.

Water flow control

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.

SafetyStop

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
