Discontinued product

Croma

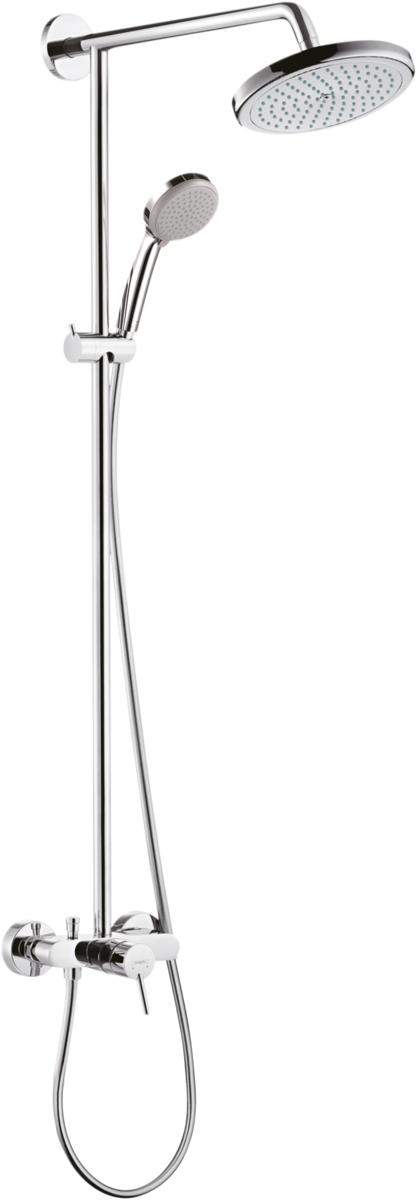

Showerpipe 220 1jet with single lever mixer

Showerpipe 220 1jet with single lever mixer
 View in AR
 360° view

Model no. 27241000

Find the right spare part
Remember product Product noted
Product saved for 30 daysSee Wish List
The product could not be saved. Please try again.

Installation information

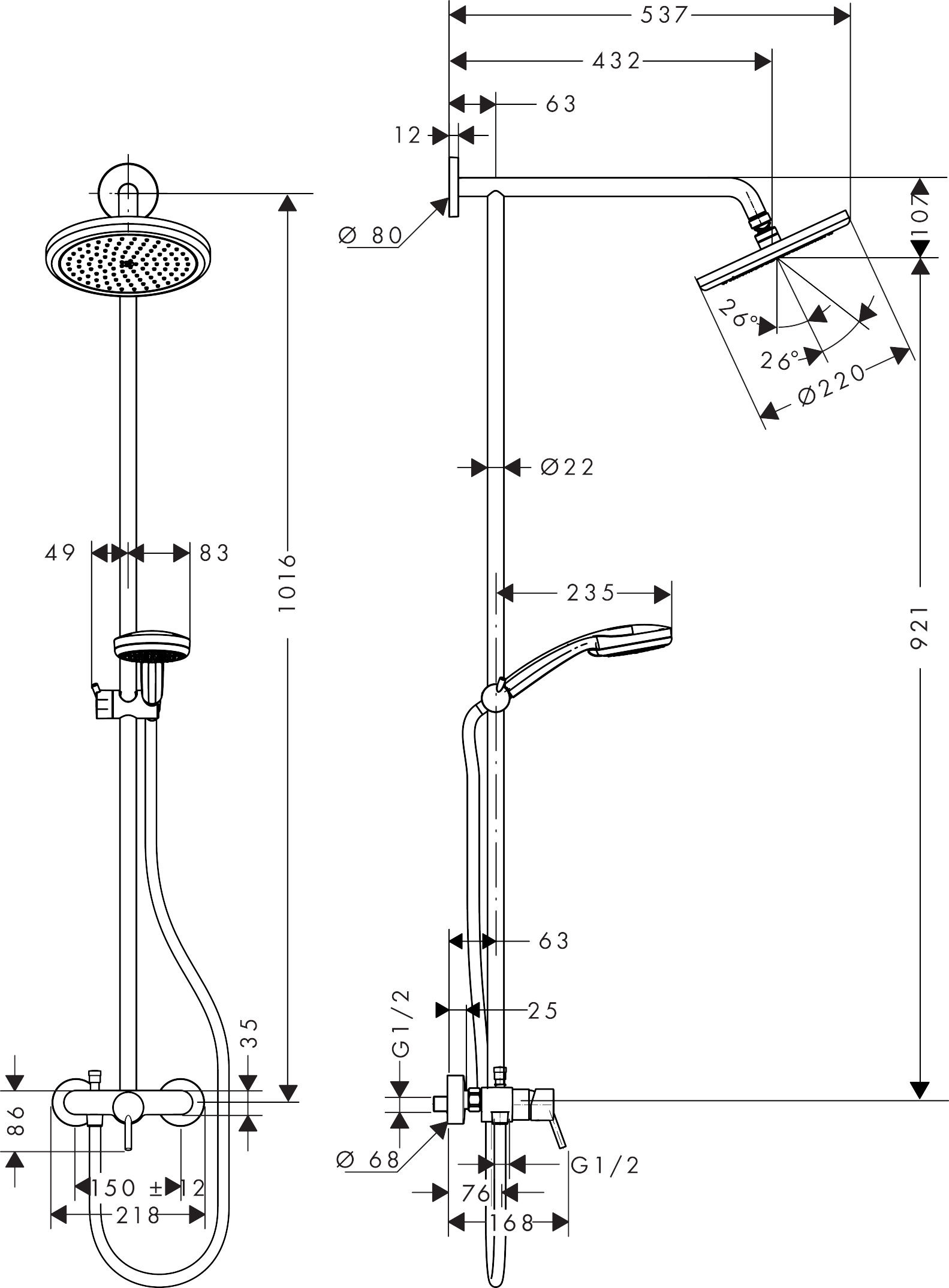

Scale drawing

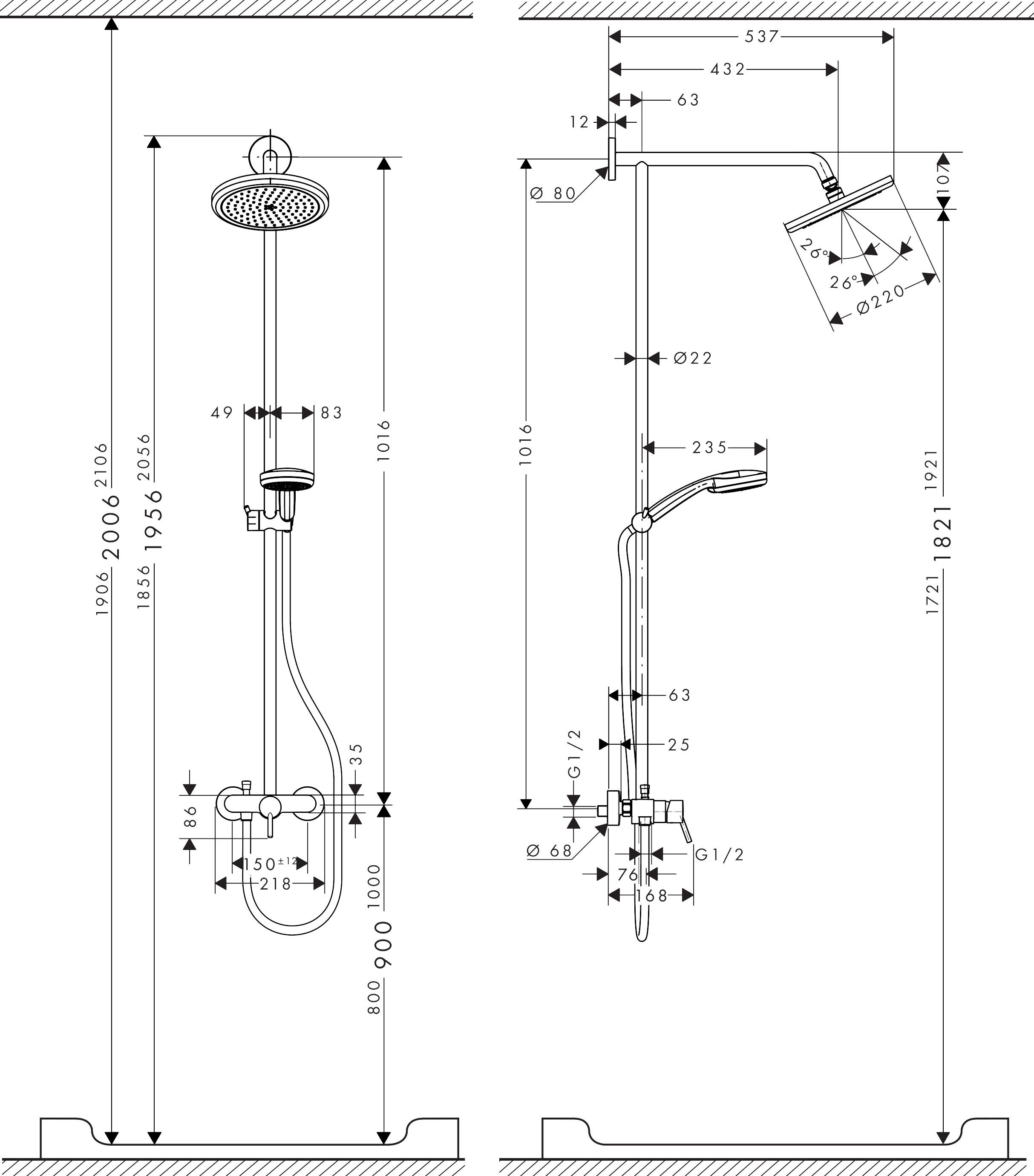

Installation example

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Article features

  • consists of: overhead shower, hand shower, single lever shower mixer, shower hose, slider
  • overhead shower Croma 220
  • shower head size overhead shower: 220 mm

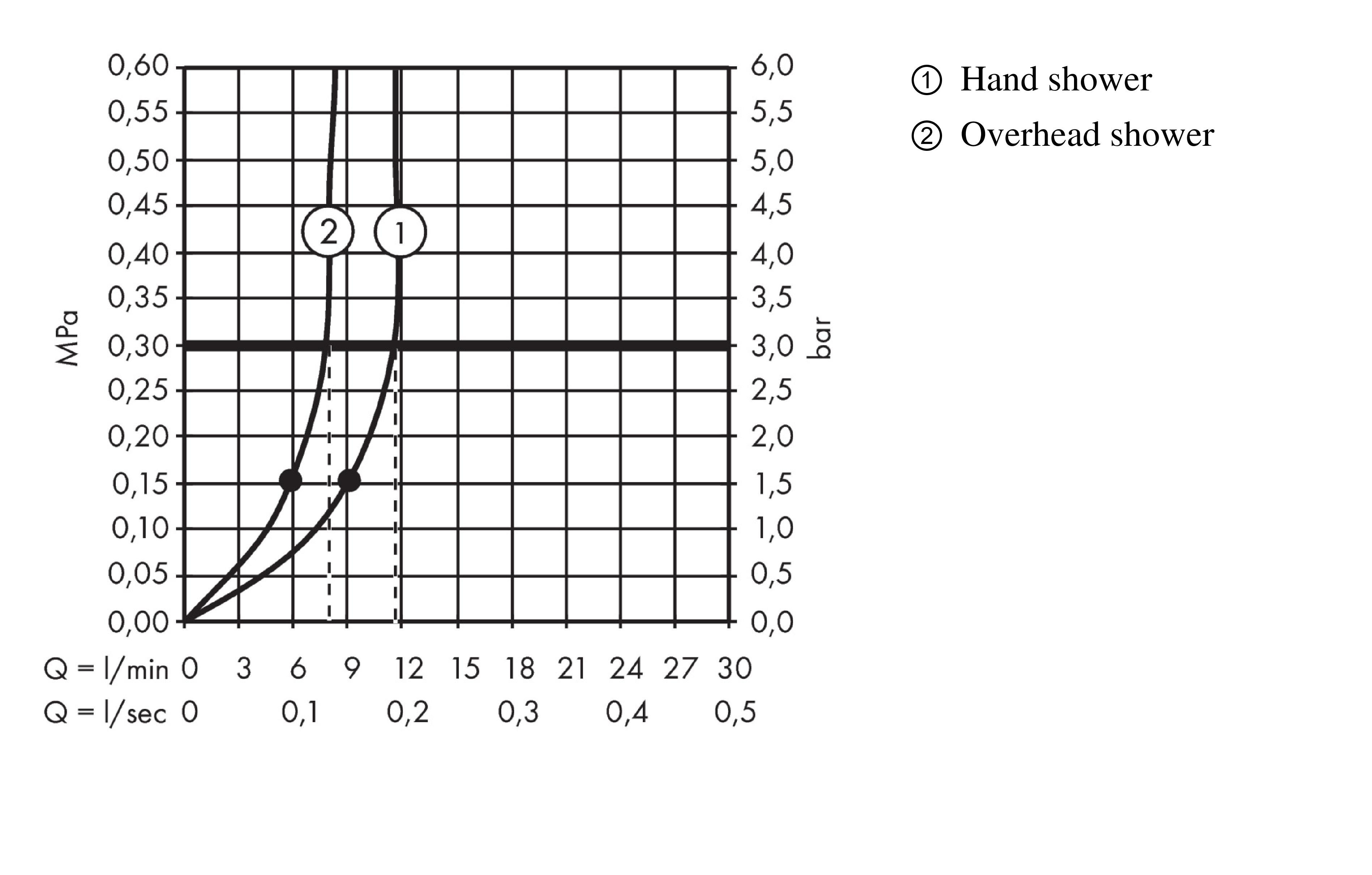

  • maximum flow rate for Showerpipe at 3 bar: 9 l/min
  • shower arm length overhead shower: 240 mm
  • suitable for continuous flow water heaters with an output of 18 kW
  • mounting type: exposed installation
  • connection dimension: DN20
  • centre distance: 160 ± 12 mm
  • ceramic cartridge
  • flow rate RainAir spray at 3 bar: 9 l/min

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Certificates

Environmental Product Declaration

 An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
