hansgrohe C71

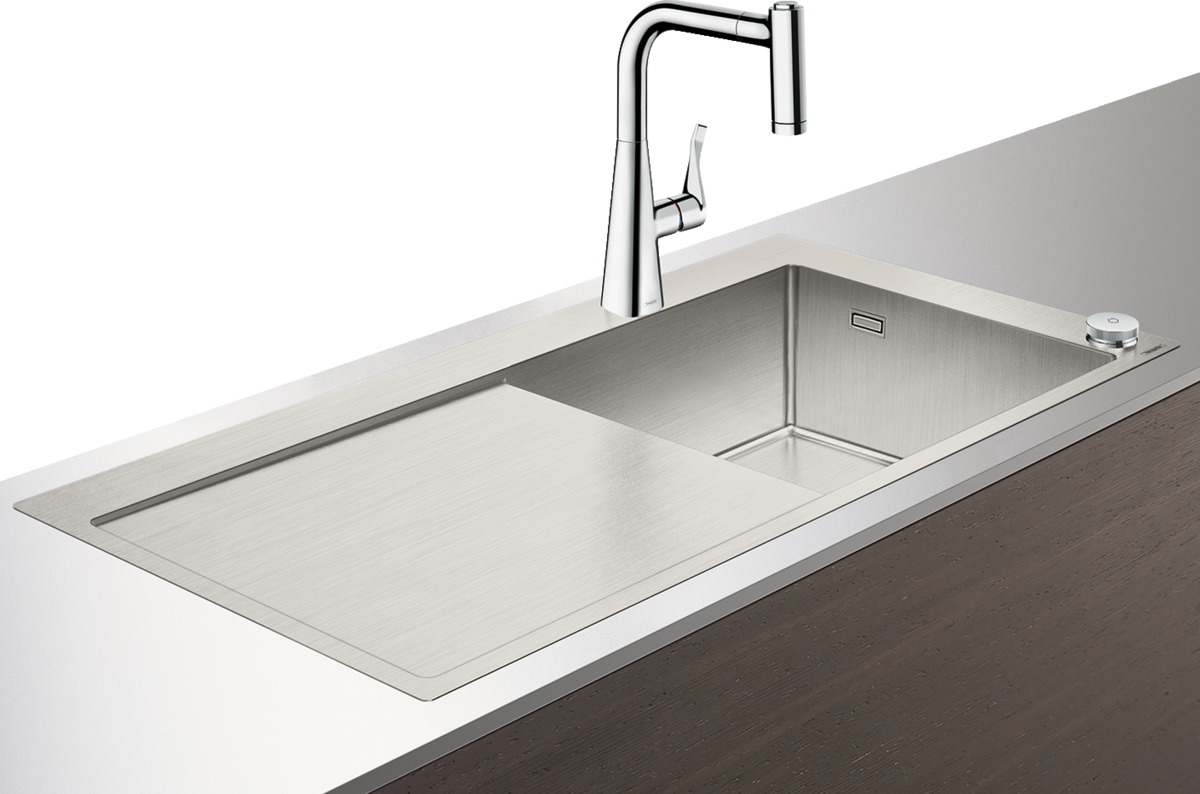

C71-F450-02 Sink combi 450 Select with drainboard left

product.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
product.closeup.image.alt
1 / 6
 View in AR
 360° view

Model no. 43208000

List price is shown for comparison only. The actual retail price may be different from the price shown.

Article features

  • consists of: built-in sink, 2-hole single lever kitchen mixer, control unit, hose box, automatic waste and overflow set
  • for installation in worktops from 25 mm
  • material sink: stainless steel
  • number of bowls: 1 main bowl
  • with drainage
  • tap hole and hole for control unit are pre-drilled
  • orientation: bowl right
  • sink depth: 190 mm
  • cut-out dimensions: 1025 x 490 mm
  • cabinet size: 60 cm
  • installation type: flat on the countertop (self-rimming) or flush-mount installation
  • position overflow: on the right side of the bowl
  • tap ledge reinforcing for a tight and stable seating of the kitchen mixer
  • corner radius: 10 mm
  • connection type: G ⅜ connections
  • connection dimension: DN15
  • suitable for continuous flow water heaters
  • ceramic cartridge
  • MagFit magnetic shower support
  • integrated non-return valve
  • swivel range adjustable in 2 steps to 110° or 150°
  • laminar spray and shower spray
  • ComfortZone 220
  • lockable shower spray, spray returns automatically through handle closing
  • sBox for quiet, smooth and protected hose guidance in the cabinet, under the countertop
  • extension length up to 76 cm
  • push of control unit: intuitive start and stop function of the water flow, turn: automatic drain operation
  • maximum flow rate at 3 bar: 7 l/min

Downloads

Planning data

Download all Planning data files

Technical drawings

Instructions

Download all Instructions files

Cut-out guides

Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Optional accessories

F14 Multifunctional strainer
hansgrohe

F14 Multifunctional strainer

Spare parts for build year 04/17

To the spare parts catalog
To the spare parts catalog
product.spareparts.image.alt
Item no. DescriptionArticle no.Description and article no.
c mounting kit40951000
a mounting kit92960000
b mounting kit40950000
1 kitchen mixer73805000
2 pop up waste43940000
3 cover93514800
4 plug93471000

Innovative technologies

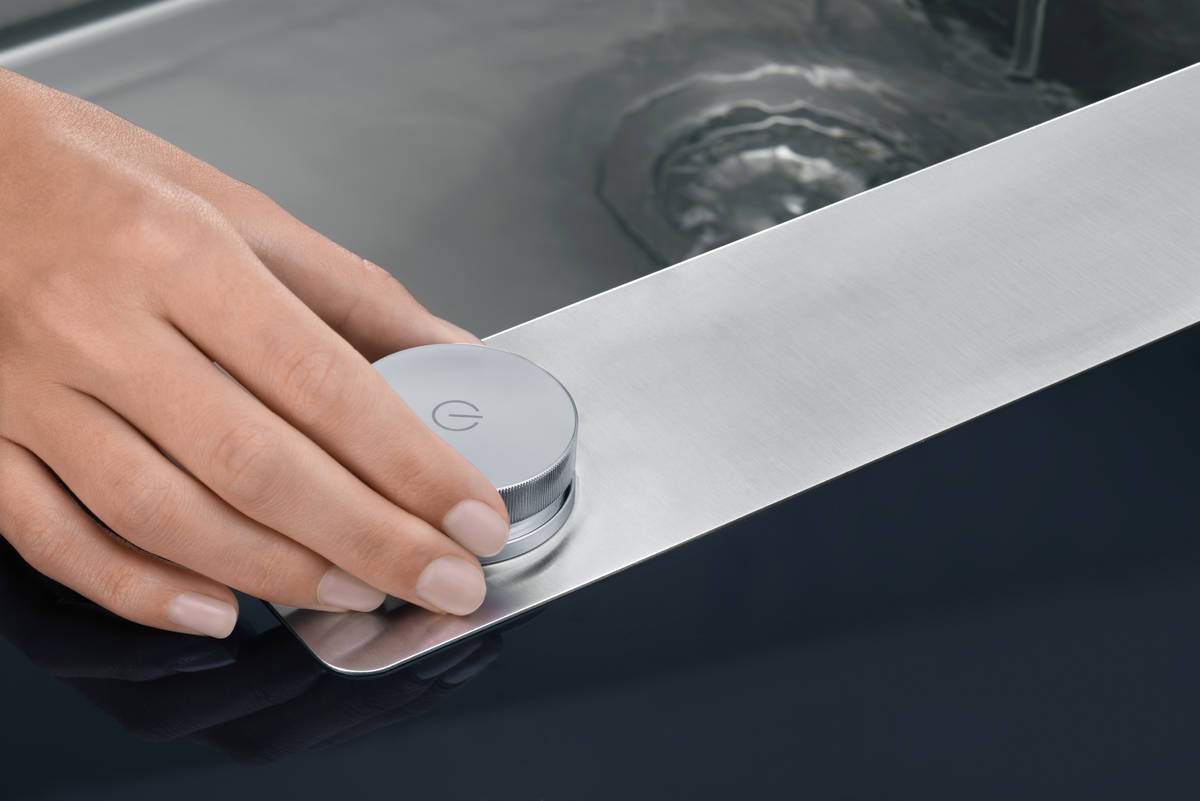

Select: Operate with ease at the touch of a button

Anyone who appreciates simple operation can now start and stop the water flow conveniently at the touch of a button. For precise and ergonomic water control that is easy to handle and can also be operated with the back of the hand or elbow.

sBox: A more organized cabinet

For extendible kitchen mixers, the hose can be pulled out and retrieved smoothly, safely and securely. The sBox allows the pull-out spray to be extended up to 76 cm. It fits into all standard vanity units.

ComfortZone: More space around the sink

Used to describe the generous space created between the kitchen tap and the sink - vertically and horizontally. These high-quality taps are highly user-friendly and have a flexible swivel range. For maximum freedom of movement.

QuickClean: Less limescale, more pleasure

Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.

Select

Select: Operate with ease at the touch of a button

Anyone who appreciates simple operation can now start and stop the water flow conveniently at the touch of a button. For precise and ergonomic water control that is easy to handle and can also be operated with the back of the hand or elbow.

sBox

sBox: A more organized cabinet

For extendible kitchen mixers, the hose can be pulled out and retrieved smoothly, safely and securely. The sBox allows the pull-out spray to be extended up to 76 cm. It fits into all standard vanity units.

ComfortZone

ComfortZone: More space around the sink

Used to describe the generous space created between the kitchen tap and the sink - vertically and horizontally. These high-quality taps are highly user-friendly and have a flexible swivel range. For maximum freedom of movement.

QuickClean

QuickClean: Less limescale, more pleasure

Who likes cleaning? Limescale deposits and dirt disappear in an instant. You can rub off the flexible silicone lamellae or nubs with your finger. This takes no time at all and minimises the cleaning effort.

Spray Types

Crystal clear and economical with no added air. Great for filling large containers quickly. Splashing can be prevented.
Laminar
Cleansing and conserves resources. Also suitable for a swift spray of the sink.
Shower

Laminar

Crystal clear and economical with no added air. Great for filling large containers quickly. Splashing can be prevented.

Laminar

Shower

Cleansing and conserves resources. Also suitable for a swift spray of the sink.

Shower

Impressions

Five-year manufacturer’s guarantee

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
