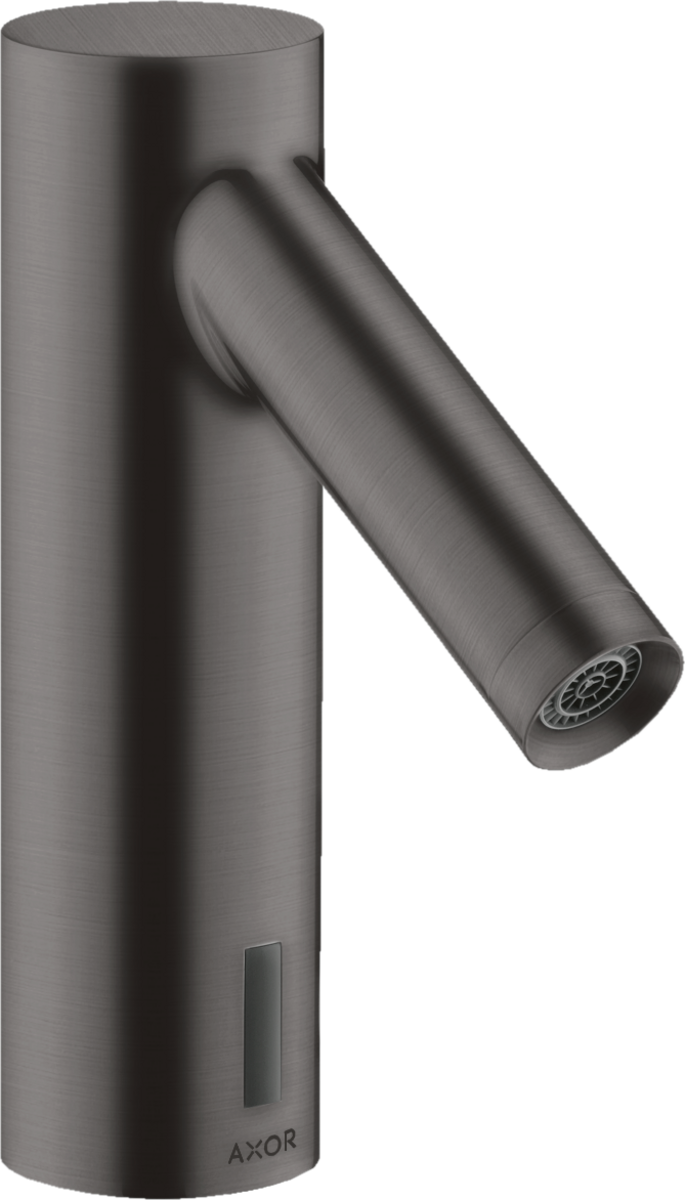

AXOR StarckElectronic basin mixer with temperature pre-adjustment with mains connection 230 V

Model no. 10145340
Please try again.
Article features
- ComfortZone 90
- projection: 103 mm
- spray type: normal spray
- maximum flow rate at 3 bar: 5 l/min
- temperature pre-adjustable
- suitable for continous flow water heaters
- infrared sensor technology
- automatic environmental adjustment of infrared sensor
- adjustable optical range of infrared sensor (2 settings)
- 230 V / 50 Hz mains connection
- running time: 10 s
- hygiene rinse activatable (automatic water flow)
- frequency of hygiene rinse: 24 h
- flushing time hygiene rinse: 10 s
- permanent rinse activatable (single water flow for 180 seconds, suitable for thermal disinfection)
- cleaning mode: manual water stop for washbasin cleaning
- connection dimension: DN15
- TÜV certified
- dirt filters in the connection hoses
- EU taxonomy: max. 6 l/min - Substantial Contribution (SC) possible
Downloads
Technical drawings
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.Innovative technologies
More pleasure, more efficiency
Excellent user comfort
Saving resources with pleasure
Starts the electronic tap
Less limescale, more joy
AirPower
More pleasure, more efficiency
Mixes generous quantities of air into the water. The enriched droplets are luxurious, light and soothing on the skin and cause less splash in the wash basin. For a more efficient use of the precious resource that is water.
ComfortZone
Excellent user comfort
More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.
EcoSmart
Saving resources with pleasure
hansgrohe standard taps are equipped with our EcoSmart technology to save water and energy – since 2010. While enjoying the full water experience, it consumes max. 5 l/min. Good for a conscious consumption of water and energy.
SensorActivation
Starts the electronic tap
The sensor on this contactless tap acts like a motion sensor as it responds to changes in the infrared rays. Water only flows once it detects warmth from hands. This is economical and environmentally friendly as well as contactless and hygienic.
QuickClean
Less limescale, more joy
Who actually likes cleaning? Limescale deposits and dirt disappear in an instant with this technology. Simply rub the flexible silicone discs or nozzles with a finger. It’s fast and keeps cleaning to a minimum.
