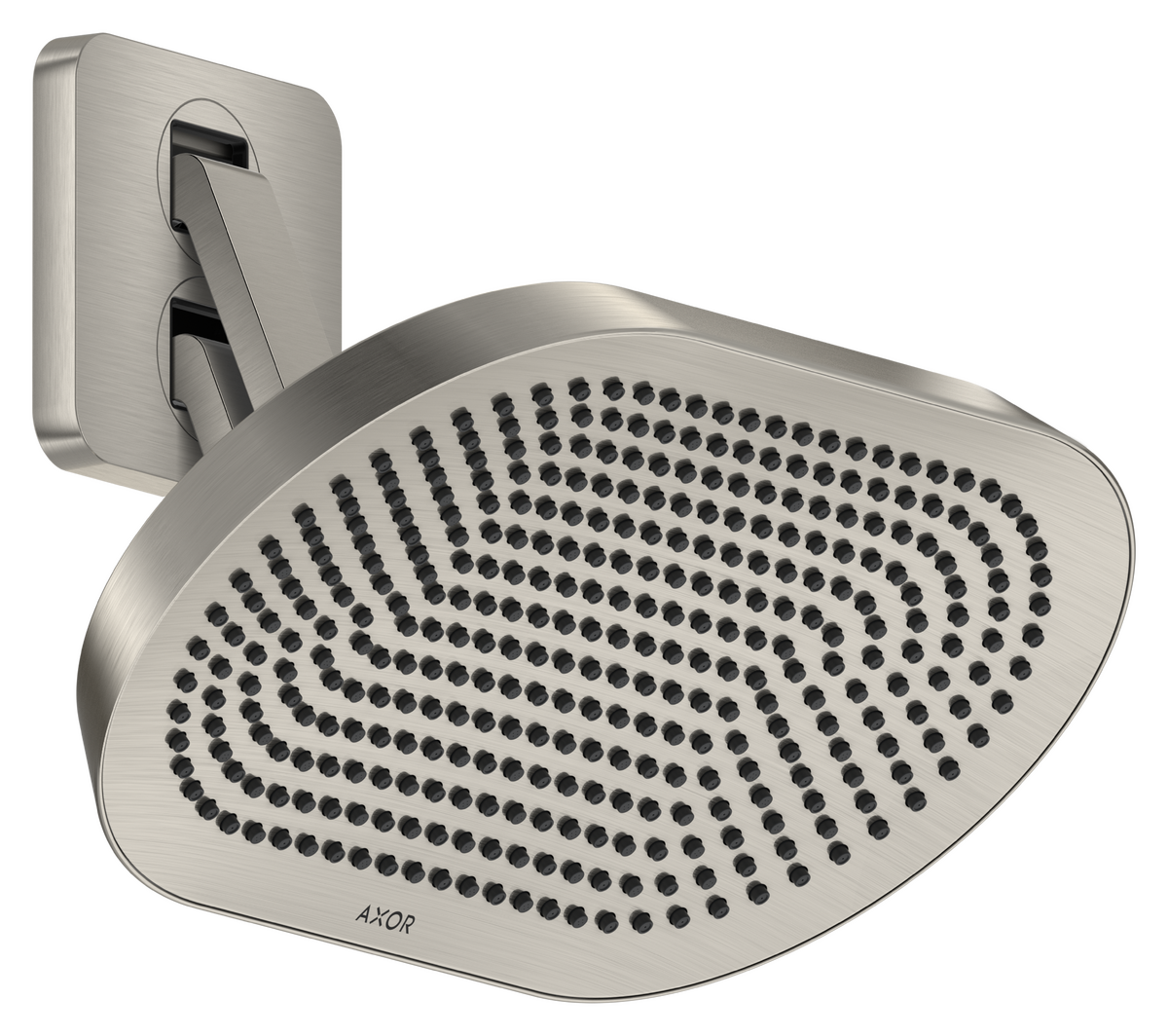

AXOR ShowerSphere
Overhead shower 370/220 2jet EcoSmart with adjustable shower arm

NEW
Overhead shower 370/220 2jet EcoSmart with adjustable shower arm
 View in AR
 360° view
Change variant
AXOR ShowerSphere
Select variant
Overhead shower 370/220 2jet EcoSmart with adjustable shower arm
Overhead shower 370/220 2jet with adjustable shower arm
Finish Stainless Steel Optic

Model no. 39746800

Article features

  • consists of: overhead shower, shower arm
  • shower head size: 370 x 220 mm
  • spray type: PowderRain, Rain
  • FlexPower: nozzles automatically adjust to water pressure by opening and closing
  • QuickClean+: avoid limescale deposits thanks to the elasticity of the nozzles
  • flow regulator: 8 l/min (with possible tolerances -20 %)
  • flow rate PowderRain spray at 3 bar: 6,7 l/min
  • flow rate Rain spray at 3 bar: 6,4 l/min
  • function from: 4,8 l/min
  • maximum flow rate at 3 bar: 6,7 l/min
  • minimum flow pressure: 0,9 bar
  • overhead shower inclinable by 0-35°
  • material spray disc: metal
  • overhead shower removable for cleaning
  • Adjustable Shower Arm: for easy adjustment of shower head on body height, mechanical interlock in every position, steppless adjustment
  • shower arm length: 105 mm
  • metal shower arm
  • installation: wall
  • mounting type: concealed
  • connection type: basic set
  • suitable for continous flow water heaters
  • EU taxonomy: max. 8 l/min - Do No Significant Harm (DNSH)

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Installation example

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts

Basic set for overhead shower with shower arm
AXOR ShowerSolutions

Basic set for overhead shower with shower arm

Innovative technologies

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

FlexPower - Top performance with less water

Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.

Effectively prevents annoying limescale buildup

Elastic silicone nozzles constantly open and close preventing limescale build-up. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.

Adjustable shower arm

A movable shower arm enables the overhead shower to be individually adjusted, allowing for the shower jet to be adapted to the height of the user and ensuring optimal coverage of the body by the jet. The overhead shower’s sloped angle of inclination supports a walk-in shower experience and also provides a massaging effect for the shoulder and neck area.

EcoSmart

Want to save water? With pleasure!

Enjoy shower pleasure using less water thanks to our EcoSmart technology. The products convince with a maximum flow rate of 8 l/min thanks to a flow limiter. Can help in reducing water and energy costs every day.

FlexPower

FlexPower - Top performance with less water

Innovative technology that provides great shower comfort with low consumption. Elastic nozzles in the shower head dynamically adapt to the water flow and pressure, increasing the performance of the spray and enabling more efficient use of water.

QuickClean+

Effectively prevents annoying limescale buildup

Elastic silicone nozzles constantly open and close preventing limescale build-up. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.

Adjustable Shower Arm

Adjustable shower arm

A movable shower arm enables the overhead shower to be individually adjusted, allowing for the shower jet to be adapted to the height of the user and ensuring optimal coverage of the body by the jet. The overhead shower’s sloped angle of inclination supports a walk-in shower experience and also provides a massaging effect for the shoulder and neck area.

Spray Types

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.
Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

PowderRain

Relaxing, micro-fine droplets that gently and quietly envelop the body. The water is transformed into a delicate cocoon that sensually embraces the body. For sensual showering and indulgent, deep relaxation.

Rain

Invigorating and energising everyday showering indulgence with a satisfyingly full shower rain. With its small outlets on the shower head, this spray type works efficiently to thoroughly rinse out shampoo.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
