Discontinued product

AXOR ShowerSolutions

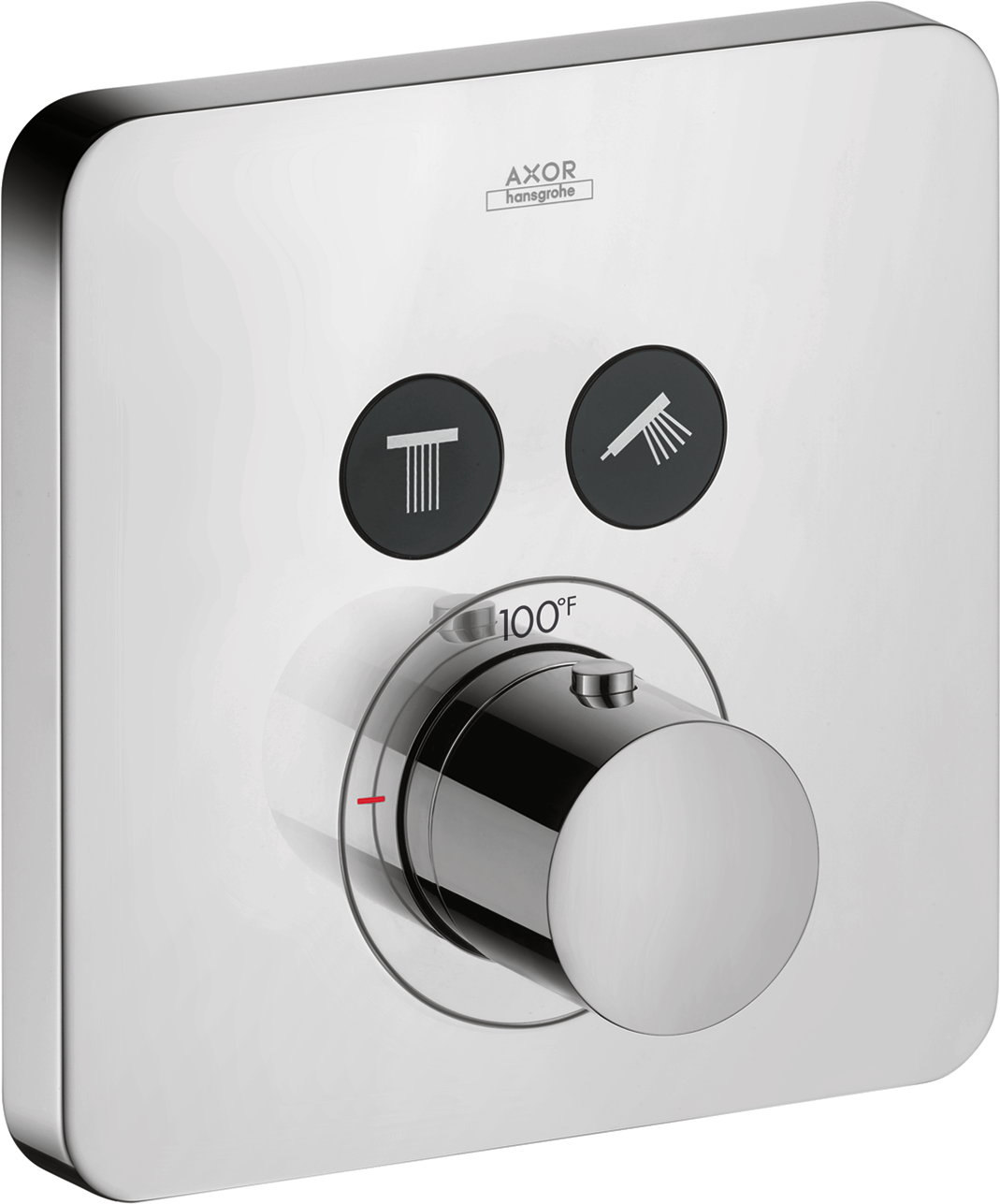

Thermostat for concealed installation softsquare for 2 functions

Thermostat for concealed installation softsquare for 2 functions
similar figure
 View in AR
 360° view

Model no. 36707001

Find the right spare part
Remember product Product noted
Product saved for 30 daysSee Wish List
The product could not be saved. Please try again.

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Article features

  • 2 functions
  • simultaneous use of several outlets
  • Select push-button on/off control for 2 outlets
  • thermostat cartridge, Start/stop valve to operate the functions
  • maximum flow rate at 3 bar: 37,8 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • optimized for water-efficient shower products
  • safety stop at 38 °C
  • temperature limitation adjustable
  • non-return valve
  • with silencer
  • suitable for continous flow water heaters
  • connection type: basic set
  • dirt filter: dirt filter included
  • thermostat is delivered with buttons hand shower and Rain large

Downloads

We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
