AXOR ShowerSelect ID
Thermostat HighFlow for concealed installation softsquare (highlight: rim)

NEW

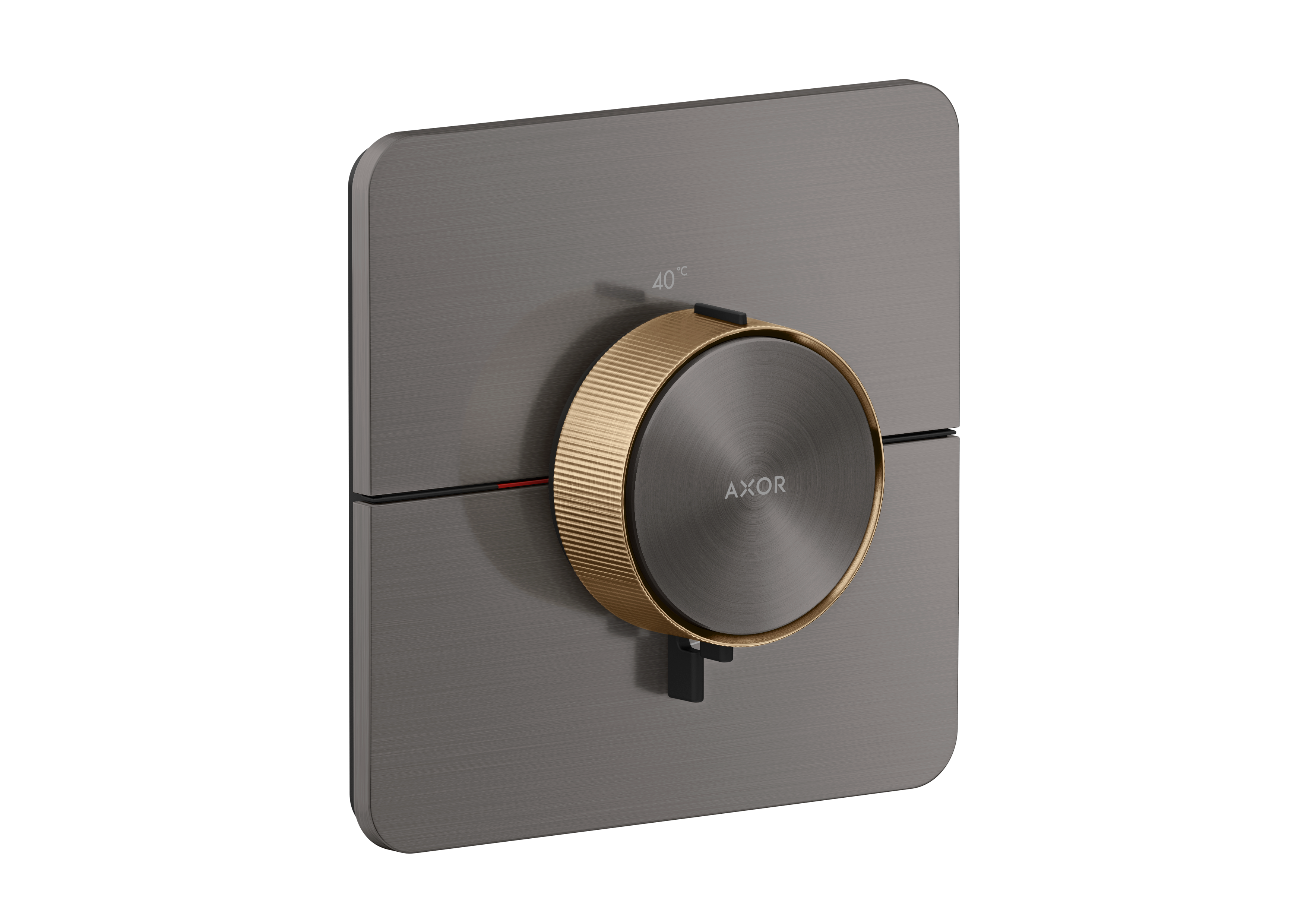

Thermostat HighFlow for concealed installation softsquare (highlight: rim)
 View in AR
 360° view

Model no. 36783140

Article features

  • temperature and water flow control, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostat handle
  • water flow control with stop function
  • thermostat cartridge
  • maximum flow rate at 1 bar: 12,8 l/min
  • maximum flow rate at 3 bar: 24 l/min
  • flow rate upper outlet: 24 l/min
  • flow rate lower outlet: 23 l/min
  • flow rate by simultaneous use of all outlets: 34,8 l/min
  • min. operating pressure: 1 bar
  • max. operating pressure: 10 bar
  • flat escutcheon for more space in the shower
  • escutcheon can be aligned by +/- 3°
  • easy installation due to pre-assembled function block
  • handles always at the same height regardless of the installation depth of the basic set
  • Safety stop at 40 °C
  • temperature limitation adjustable
  • material button: metal
  • material handles: metal
  • connection type: basic set iBox universal 2 (# 01400180)

Downloads

Installation information

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Required parts

Basic set
AXOR iBox universal 2

Basic set

Optional accessories

Extension element softsquare 5 mm
AXOR ShowerSelect ID

Extension element softsquare 5 mm
Valve for concealed installation softsquare for 3 functions
AXOR ShowerSelect ID

Valve for concealed installation softsquare for 3 functions
Extension element softsquare 22 mm
AXOR ShowerSelect ID

Extension element softsquare 22 mm

Innovative technologies

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.
Always constant water temperature

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.
For mindful use of water

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.
Safety lock at over 40 °C

Intuitive jet adjustment

A playful way to control the water flow, shower or spray type at the simple touch of a button.

Thermostat

Always constant water temperature

Thermostat with integrated temperature control for constant water temperature.

Water flow control

For mindful use of water

Actively regulates water consumption – the amount of water can be adjusted via the control dial.

SafetyStop

Safety lock at over 40 °C

Safety lock at over 40 °C - temperature limit, which prevents excessively hot water from escaping.

Select

Intuitive jet adjustment

A playful way to control the water flow, shower or spray type at the simple touch of a button.

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
