AXOR One

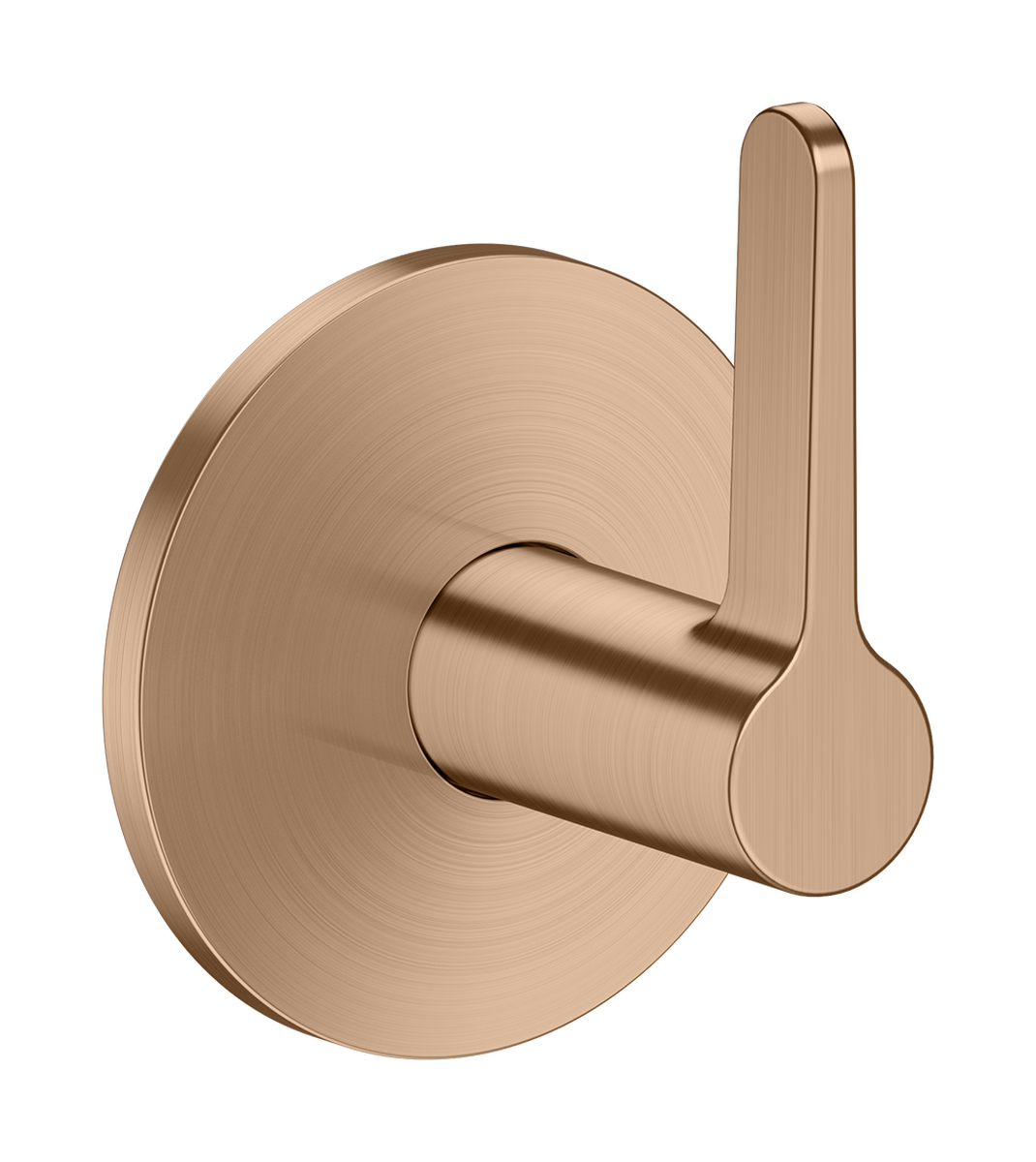

Shut-off valve for concealed installation with lever handle

NEW
Shut-off valve for concealed installation with lever handle
 View in AR
 360° view
Change variant
AXOR One
Select variant
Shut-off valve for concealed installation with lever handle
Shut-off valve for concealed installation with cross handle
Finish Brushed Red Gold

Model no. 48772310

Article features

  • volume control for 1 function
  • connection type: basic set
  • in a freely arranged installation, basic sets no.16973180, no.16974180 or no.16970180 can also be used
  • in a joined installation (10 mm distance) with no. 48722000, no. 48723000 or no. 48712000, no. 48713000, the basic set no. 10971180 must be used
  • in a joined installation (10 mm distance) with no. 48711000, the basic sets no. 10754180 and no. 10971180 must be used
  • 1 function
  • connection dimension: DN15/DN20
  • material: metal
  • noise class: I

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all Instructions files
Download all files

Installation information

Scale drawing

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Required parts - Select variant

Basic set for shut-off valve 120/120 for concealed installation
AXOR ShowerSolutions

Basic set for shut-off valve 120/120 for concealed installation
Basic set 52 l/min for shut-off valve for concealed installation spindle

Basic set 52 l/min for shut-off valve for concealed installation spindle
Basic set 40 l/min for shut-off valve for concealed installation ceramic

Basic set 40 l/min for shut-off valve for concealed installation ceramic
Basic set 130 l/min for shut-off valve for concealed installation spindle

Basic set 130 l/min for shut-off valve for concealed installation spindle

Optional accessories

Extension set 25 mm for shut-off/ diverter valve Trio-/ Quattro

Extension set 25 mm for shut-off/ diverter valve Trio-/ Quattro
