AXOR Montreux

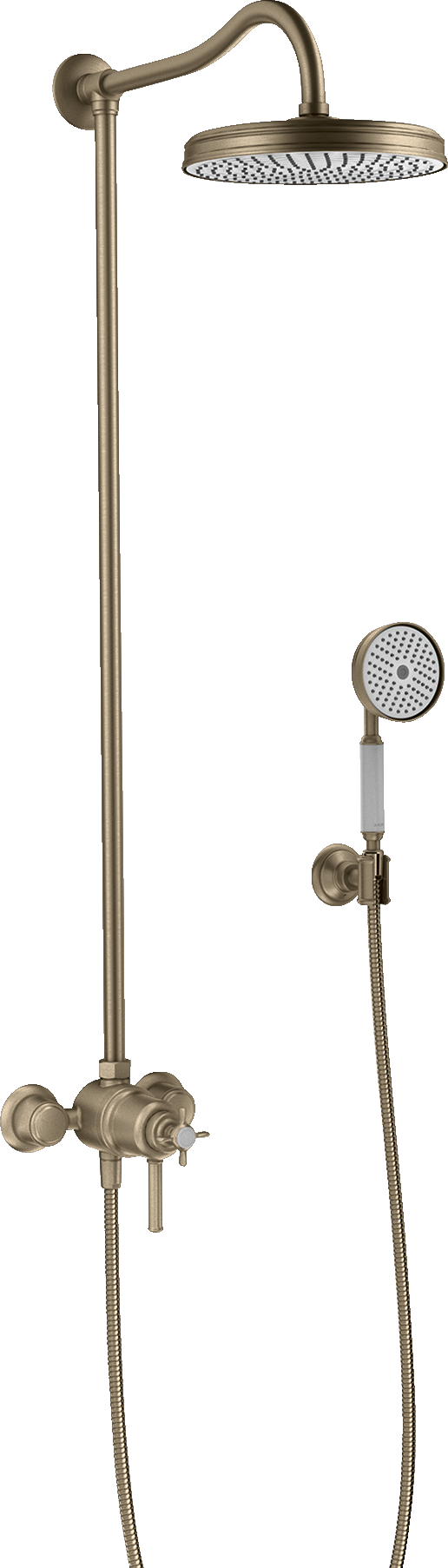

Showerpipe with thermostat and overhead shower 1jet

Showerpipe with thermostat and overhead shower 1jet
 View in AR
 360° view

Model no. 16570820

Find the right spare part
Remember product Product noted
Product saved for 30 daysSee Wish List
The product could not be saved. Please try again.

Installation information

Scale drawing

Installation example

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Information
Please note that other products are required to install the product.

Article features

  • consists of: overhead shower, hand shower, single lever shower mixer, shower hose, shower holder
  • shower head size overhead shower: 240 mm
  • spray type overhead shower: Rain
  • flow rate Rain spray at 3 bar: 17 l/min
  • maximum flow rate for Showerpipe at 3 bar: 17 l/min
  • minimum flow pressure: 1,3 bar
  • max. operating pressure: 10 bar
  • ball-joint: overhead shower angle adjustable
  • shower arm length overhead shower: 430 mm
  • thermostat AXOR Montreux
  • safety stop at 38°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 16 mm
  • 2 functions
