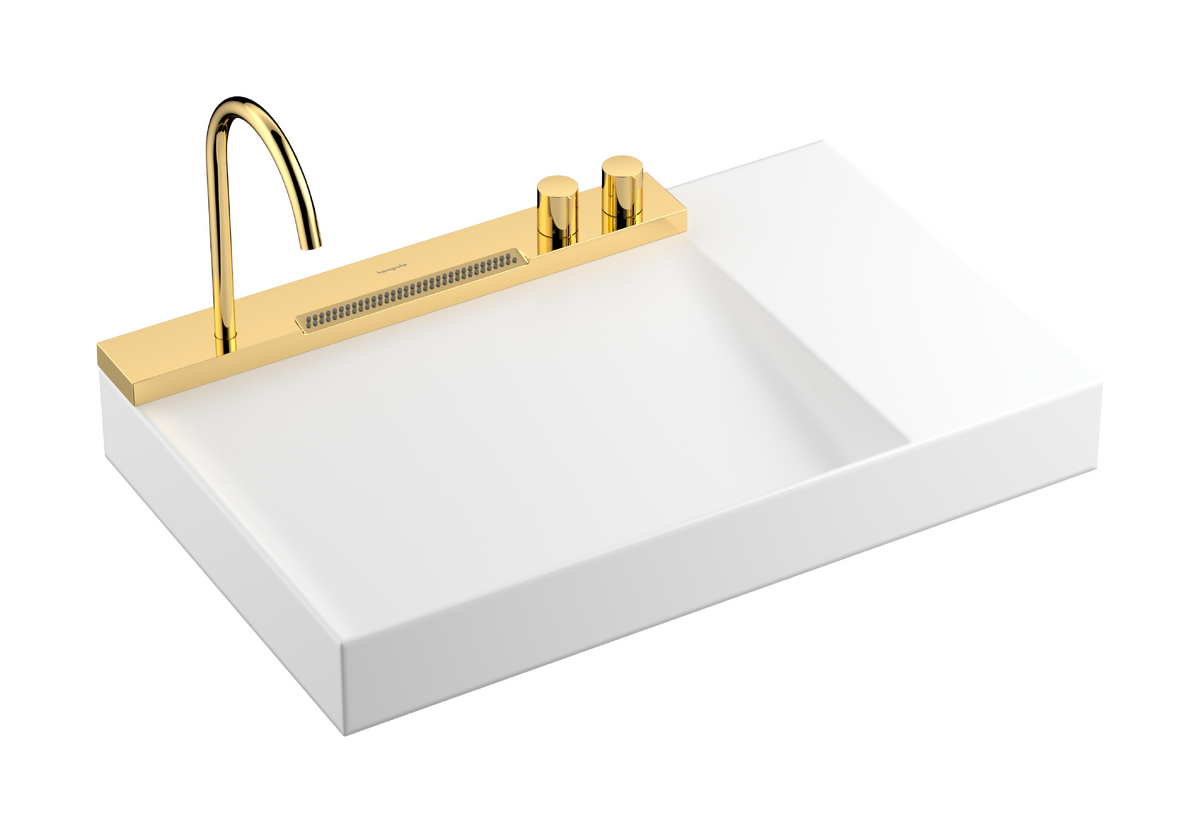

hansgrohe Avalegra
AquaUnit 780/475

COMING IN 2025
AquaUnit 780/475
 View in AR
 360° view
Change variant
hansgrohe Avalegra
Select variant
AquaUnit 780/475
AquaUnit 580/475
Finish Polished Gold Optic

Model no. 22473990

Article features

  • consists of: wash basin, basin mixer
  • basin mixer consists of spout, escutcheon, shower spray
  • material: SolidSurface, metal
  • degree of gloss: matt
  • without overflow
  • installation type: built on and wall mounted
  • outer dimensions basin: 780x475x100 mm (WxDxH)
  • basin inner height: 80 mm
  • wall distance drain: 332 mm
  • ComfortZone: 220
  • projection: 185 mm
  • spout height: 224 mm
  • with swivel spout
  • swivel range: 50°
  • spray type: laminar spray, Rain
  • QuickClean+: avoid limescale deposits thanks to the elasticity of the nozzles
  • thermostat cartridge, shut-off/ diverter valve
  • volume control and diverter for 2 functions
  • maximum flow rate at 3 bar: 5 l/min
  • with shelf right
  • Made to fit NoiseReduction: customized soundproofing mat included
  • connection type: G â…œ hose connections
  • suitable for: Xevolos and Xilesa vanity units
  • recommended operating pressure: 1,8 bar
  • operating pressure from: 1 bar

Downloads

Planning data

Download all Planning data files

BIM data

Download all BIM data files

Technical drawings

Download all Technical drawings files

Instructions

Download all files

Installation information

Scale drawing

Download all files

Optional accessories

Design trap Flowstar S
hansgrohe

Design trap Flowstar S
Space saving siphon for wash basins 50 mm
hansgrohe

Space saving siphon for wash basins 50 mm

Related product

Console 1180/550 with cutout middle for countertop basin ground
hansgrohe Xevolos E

Console 1180/550 with cutout middle for countertop basin ground
Console 1180/550 with cutout middle for countertop basin ground
hansgrohe Xevolos E

Console 1180/550 with cutout middle for countertop basin ground
Console 1180/550 with cutout middle for countertop basin ground
hansgrohe Xevolos E

Console 1180/550 with cutout middle for countertop basin ground
Console 1370/550 with cutout left for countertop basin ground
hansgrohe Xevolos E

Console 1370/550 with cutout left for countertop basin ground
Console 1370/550 with cutout left for countertop basin ground
hansgrohe Xevolos E

Console 1370/550 with cutout left for countertop basin ground
Console 1370/550 with cutout left for countertop basin ground
hansgrohe Xevolos E

Console 1370/550 with cutout left for countertop basin ground
Console 1180/550 with cutout middle for countertop basin ground
hansgrohe Xilesa E

Console 1180/550 with cutout middle for countertop basin ground
Console 1180/550 with cutout middle for countertop basin ground
hansgrohe Xilesa E

Console 1180/550 with cutout middle for countertop basin ground

Innovative technologies

Always constant water temperature

Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Made to fit soundproofing mat

This product comes with a pre-cut soundproofing mat that is tailored to its geometry. This facilitates installation and saves valuable time on the construction site.

Effectively prevents annoying limescale buildup

Elastic silicone nozzles constantly open and close preventing limescale build-up. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.

Excellent user comfort

More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.

Quick and safe installation

Quick and safe installation - several features ensure easy installation. With well thought-out designs and installation aids, we make our specialist partners' working lives easier.

Thermostat

Always constant water temperature

Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.

Made to fit NoiseReduction

Made to fit soundproofing mat

This product comes with a pre-cut soundproofing mat that is tailored to its geometry. This facilitates installation and saves valuable time on the construction site.

QuickClean+

Effectively prevents annoying limescale buildup

Elastic silicone nozzles constantly open and close preventing limescale build-up. Innovative technology for long-lasting water enjoyment with less cleaning and maintenance.

ComfortZone

Excellent user comfort

More elbow room when washing hands, a comfortable way to wash hair or just fill containers: The better the tap fits the space, the more flexible the options become. We call the area between the tap and the ceramics the ComfortZone because you can use it however you like.

Easy Installation

Quick and safe installation

Quick and safe installation - several features ensure easy installation. With well thought-out designs and installation aids, we make our specialist partners' working lives easier.

Spray Types

Crystal-clear spray type with no added air for the washbasin. This spray is a great help when going through the day-to-day washplace routine, e.g. rinsing things or quickly filling vessels. Efficient with very little splashback.
LaminarSpray
An inviting water experience with a pleasantly full jet from below. The small outlets create an efficient effect that can be both invigorating and relaxing.
Rain

LaminarSpray

Crystal-clear spray type with no added air for the washbasin. This spray is a great help when going through the day-to-day washplace routine, e.g. rinsing things or quickly filling vessels. Efficient with very little splashback.

LaminarSpray

Rain

An inviting water experience with a pleasantly full jet from below. The small outlets create an efficient effect that can be both invigorating and relaxing.

Rain

Trust in highest quality

5

year manufacturer's guarantee

 Always creating the highest quality products defines our approach to design, manufacturing and performance. ‘Made by Hansgrohe’ is your assurance of quality.
We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
