Discontinued product

Aquno Select M81
Single lever kitchen mixer 170, pull-out spray, 3jet, sBox

Single lever kitchen mixer 170
product.closeup.image.alt
1 / 2
 View in AR
 360° view
Change variant
hansgrohe Aquno Select M81
Select variant
Single lever kitchen mixer 170, pull-out spray, 3jet, sBox
Single lever kitchen mixer 170, pull-out spray, 3jet
Single lever kitchen mixer 170, pull-out spray, 3jet, sBox
Finish Matt Black

Model no. 73831677

Find the right spare part
Remember product Product noted
Product saved for 30 daysSee Wish List
The product could not be saved. Please try again.

Installation information

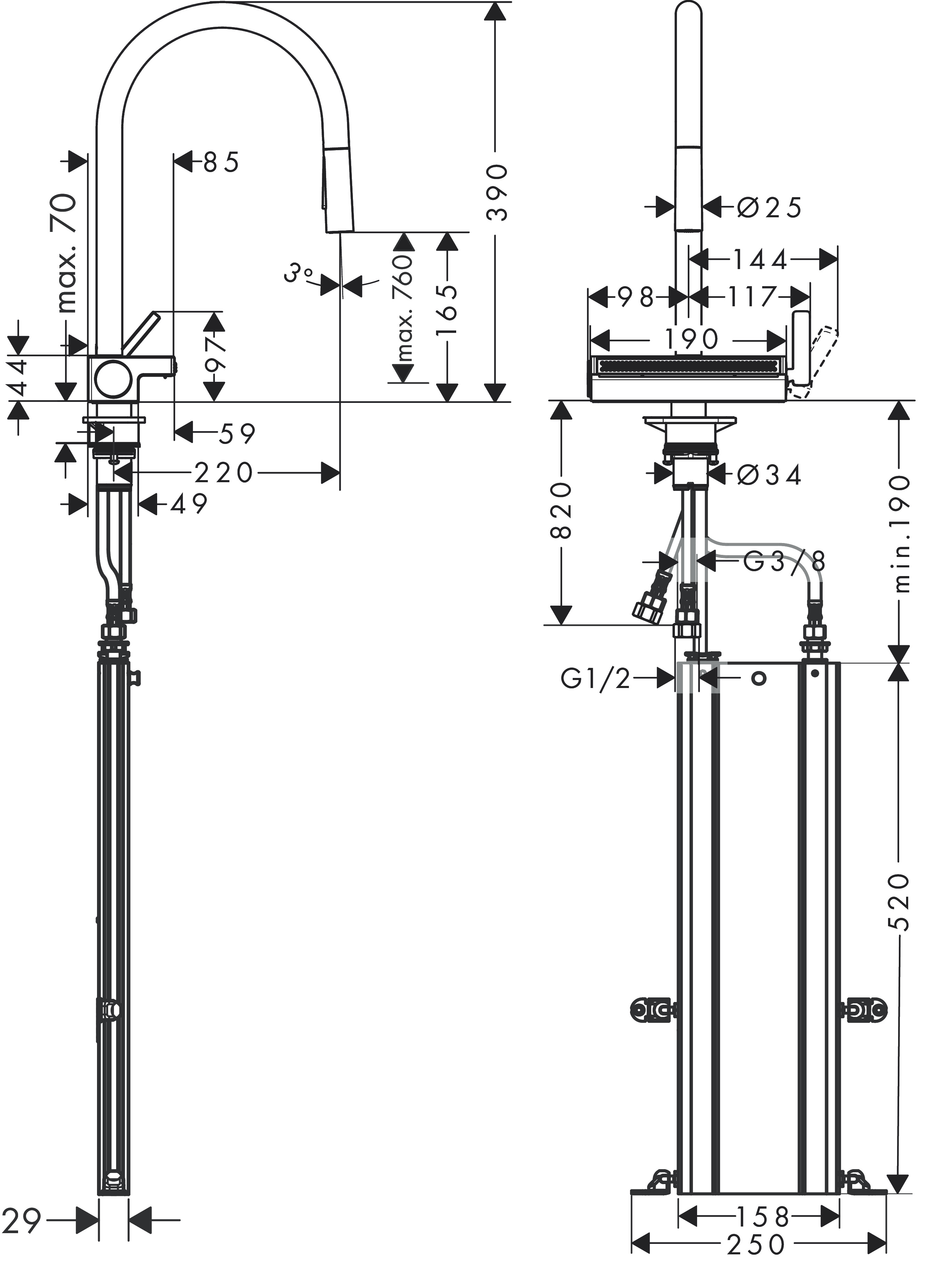

Scale drawing

Installation example

Download all files

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Article features

  • consists of: single lever kitchen mixer, hose box, multifunctional strainer
  • ComfortZone 170
  • swivel range adjustable in 3 steps 60°, 110° or 150°
  • LaminarSpray, shower spray, SatinFlow
  • change between SatinFlow and pull-out spray at the touch of a button
  • lockable shower spray, spray returns through pressing spray diverter
  • MagFit magnetic shower support
  • connection dimension: DN15
  • maximum flow rate at 3 bar: 8 l/min
  • ceramic cartridge
  • connection type: G ⅜ hose connections
  • integrated non-return valve
  • sBox for quiet, smooth and protected hose guidance in the cabinet, under the countertop
  • extension length up to 76 cm
  • tap hole with Ø 35 mm required
  • recommendation: the middle of tap hole drilling should be max. 50 mm from the back side of of the bowl

Downloads

We endeavour to always provide up-to-date, complete information on our website. However, we do not assume any liability for the suitability of the information for particular uses.
